Product Description

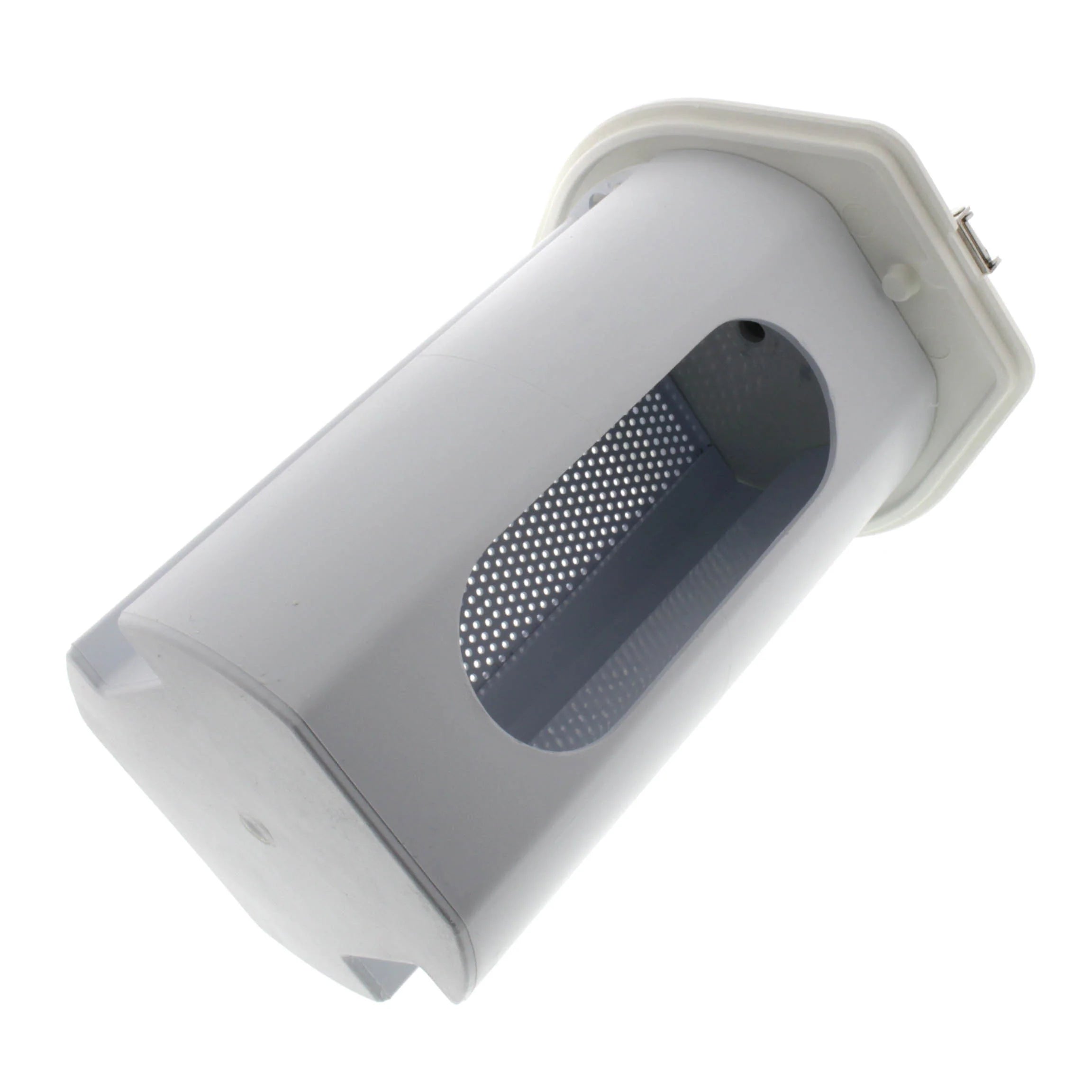

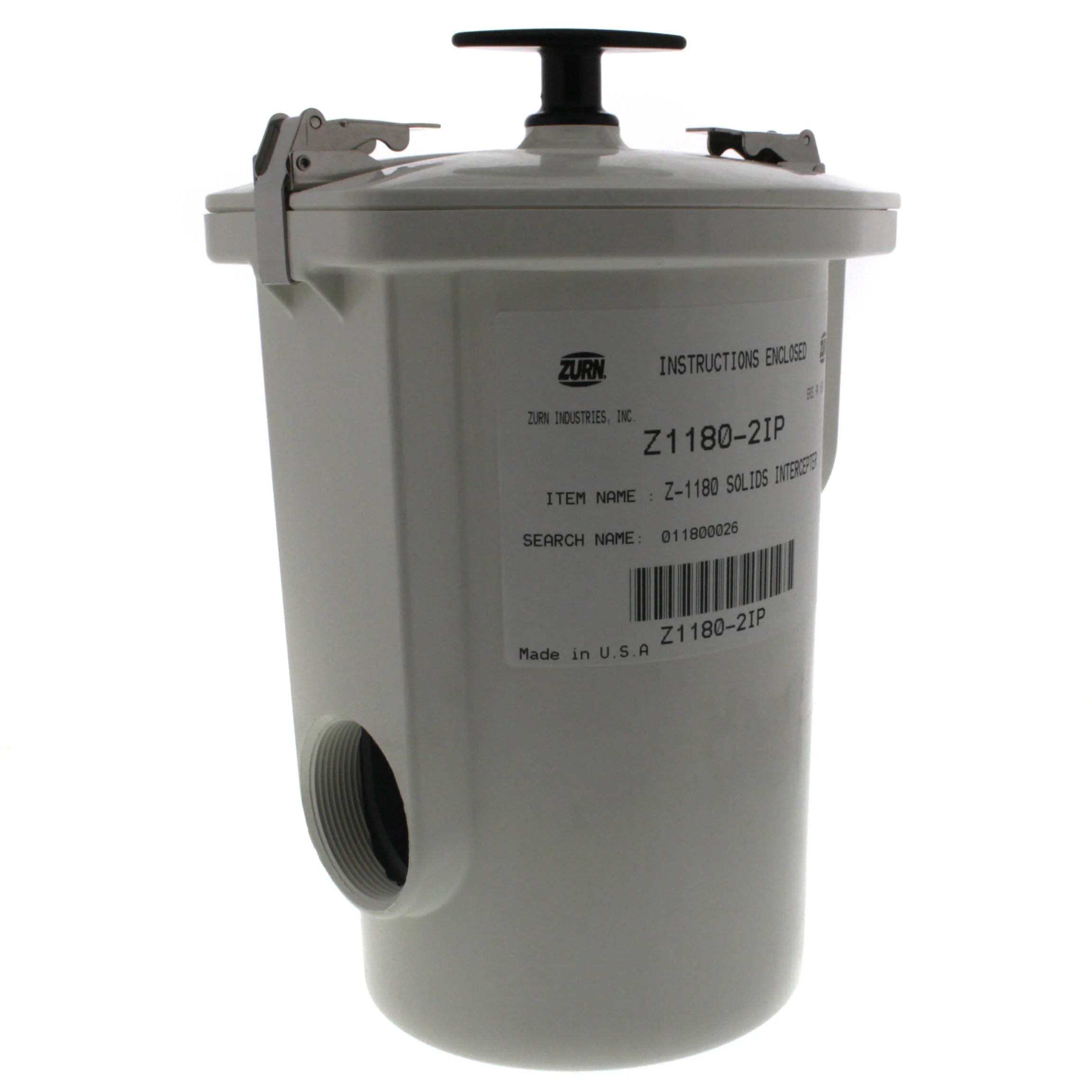

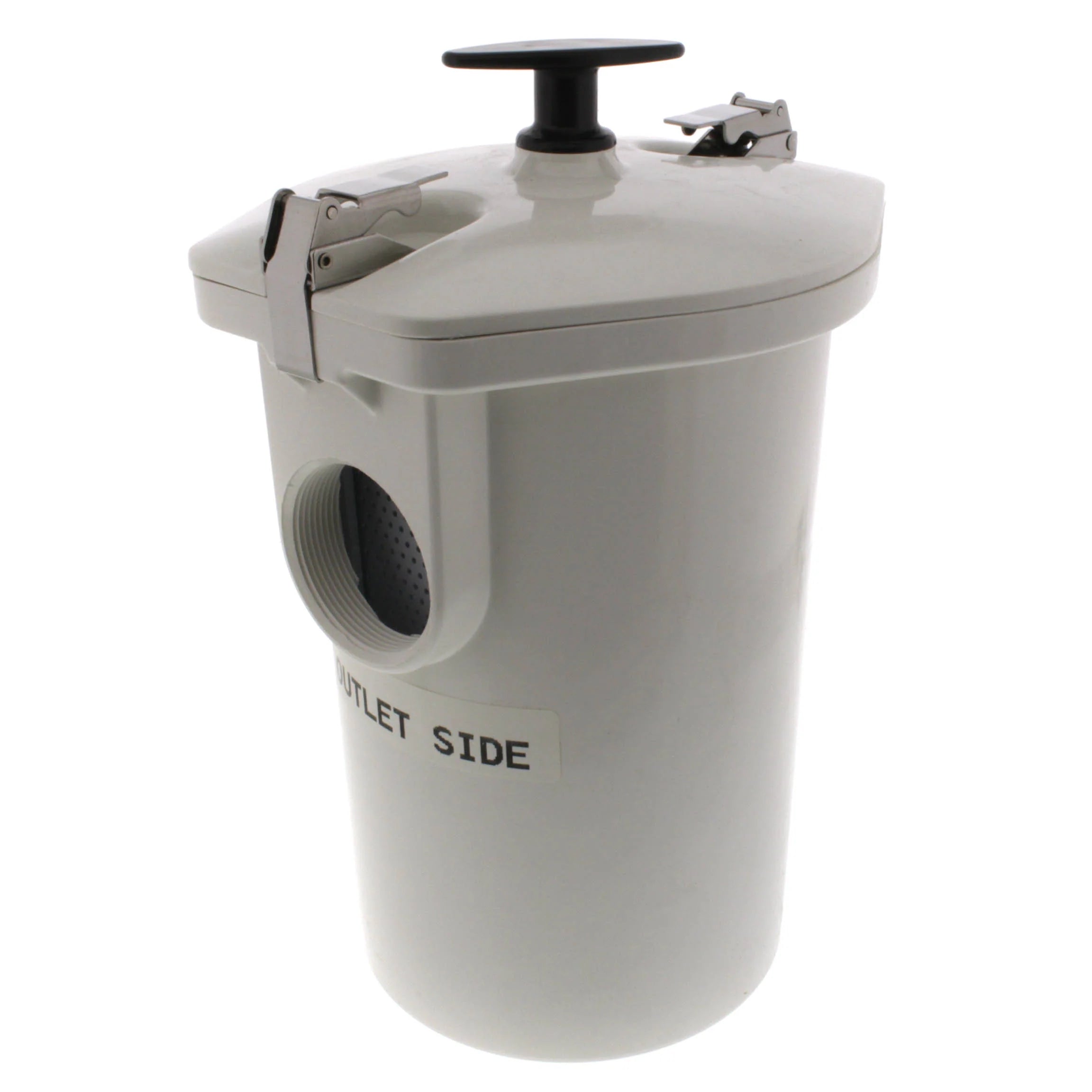

The Zurn Z1180-2IP is a solids interceptor designed for on-floor installation. This product serves as an acid-resistant composite option in place of a fixture 'P' trap. It includes a removable PVC sediment bucket that has a 3/32-inch diameter perforated flow-defusing screen. The top access has a gasketed cover secured for ease of maintenance. It features stainless steel draw latches and hardware along with an ABS handle for easy access to the sediment bucket.
- Acid-resistant composite material
- Designed for on-floor installation
- Effective in recovering solids including precious metal particles, plaster, and clay
Product Highlights
This model is suitable for commercial applications where solid waste recovery is essential.
Product Information
Standard Information
-
Brand: Zurn
-
Manufacturers Part Number: Z1180-2IP
Technical Specifications
-
Connection Size: 2 inches
-
Flow Rate: 15 gallons per minute
-
Material: Composite
-
Height: 12.5 inches
-
Width: 8.4375 inches
-
Depth: 7.5 inches
-
Inlet/Outlet Height: 3.25 inches Inlet, 7.25 inches Outlet
