Zurn Z100-C(6-8)-ASSY Cast Iron Underdeck Clamp with Hardware

Product Description

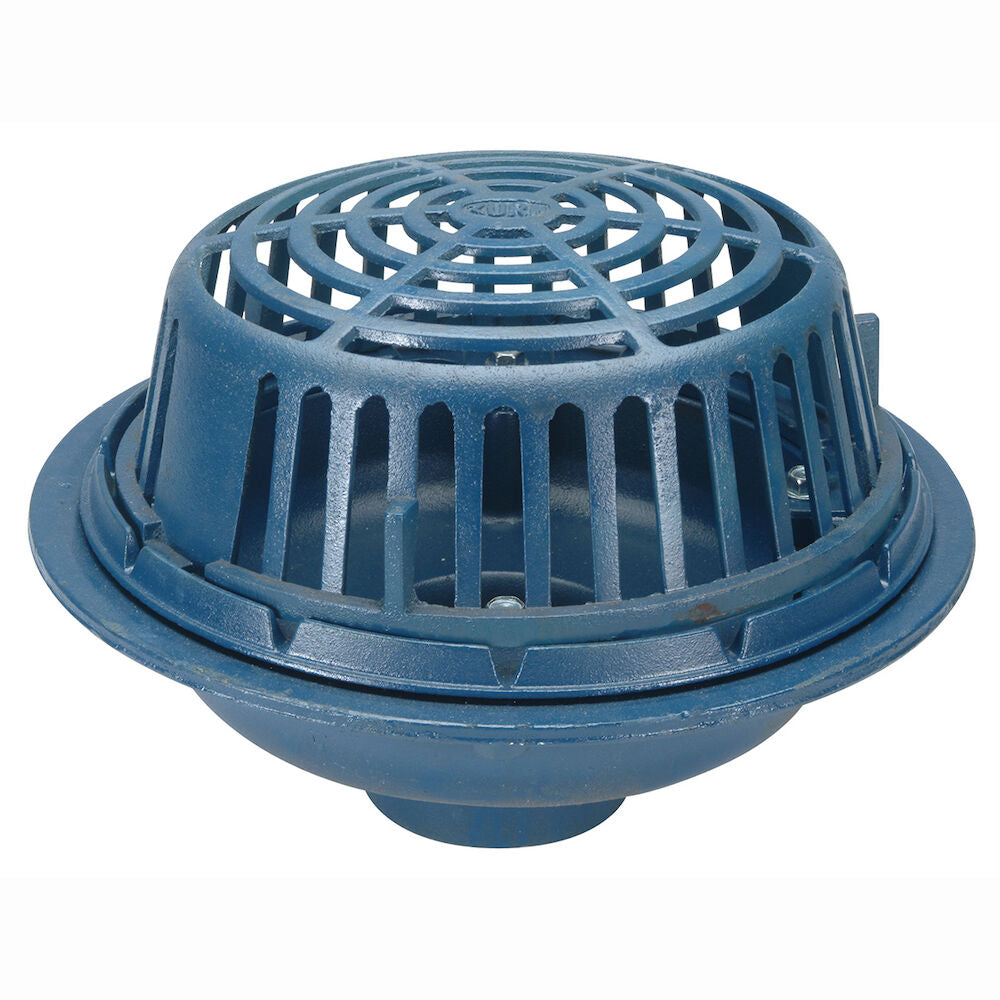

The ZURN Z100-C(6-8)-ASSY underdeck clamp is manufactured from durable cast iron and provides the ability to top mount a roof drain for outlet sizes 6" to 8". The 15" diameter roof drain has a Dura-Coated cast iron body with combination membrane flashing clamp/gravel guard and low silhouette Poly-Dome. Design accommodates new construction and retrofit applications.

• Durable cast iron construction
• Accommodates new construction and retrofit applications
• Clamping collar and low silhouette Poly-dome

Product Highlights

The ZURN Z100-C(6-8)-ASSY underdeck clamp allows for top mounting of roof drains with 6" to 8" outlets. Its durable cast iron build ensures longevity in demanding environments.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Z100-C(6-8)-ASSY

Technical Specifications

• Width: 15 in
• Height: 10
• Length: 15
• Material: Cast Iron;Plastic
• Commercial_or_Residential: Primarily Commercial
• Type: Roof Drains
• Drain Material: Cast Iron
• Grid Size: 12-1/2 in
• Finish: Dura Coated
• Manufacturer: Zurn Elkay Water Solutions
• Manufacturer #: Z100-C(6-8)-ASSY
• Series: Z100
• Additional Information: 103 sq-in Dome Open Area
• Connection Size: 6 to 8 in
