Zurn Z100-4NH-89-C-R Z100 Series 4 in. Cast Iron Roof Drain

Product Description

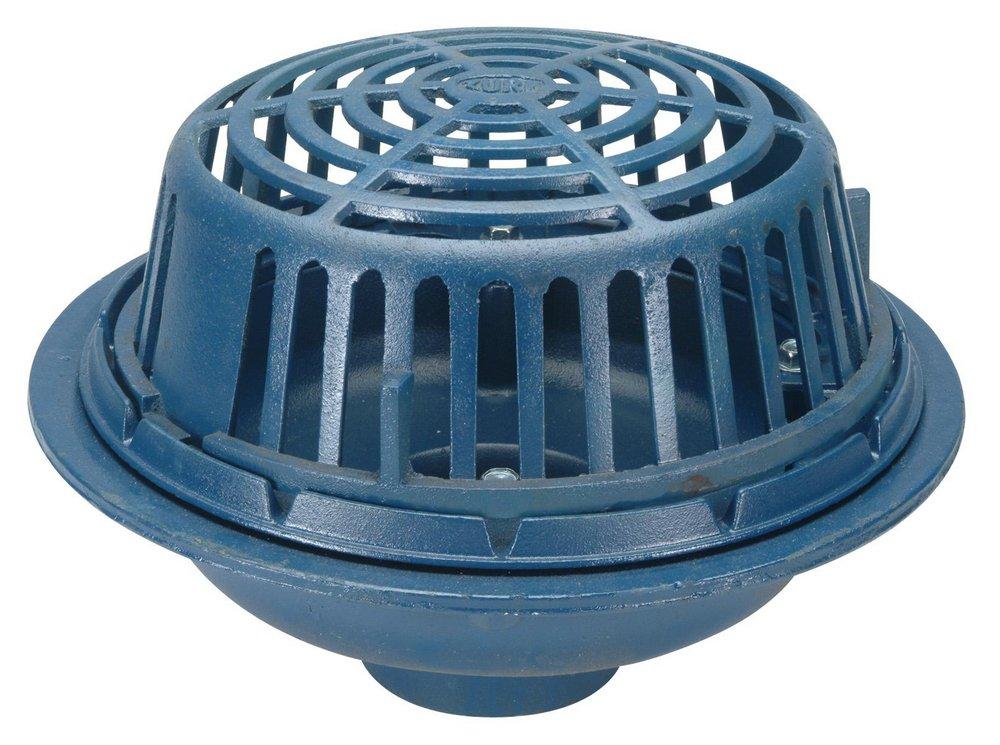

The ZURN Z100-4NH-89-C-R is a 15" diameter primary roof drain with a Dura-Coated cast iron body. It features a combination membrane and flashing clamp/gravel guard, a clamping collar, and a low silhouette Poly-Dome. The drain also has a 2" high external water dam and a roof sump receiver.

• 15" diameter primary roof drain
• Clamping collar and low silhouette Poly-Dome
• Dura-Coated Cast Iron Body with Combination membrane and flashing clamp/gravel guard

Product Highlights

This Zurn roof drain is ideal for new or retrofit construction. It is durable and provides excellent drainage.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Z100-4NH-89-C-R
• Country of Origin: China

Technical Specifications

• Adjustable: No
• Collection: Z100 Series
• Construction: Membrane
• Drain Base Height: 5-1/4
• Drain Base Material: Cast Iron
• Drain Base Width: 15
• Drain Grate Material: Plastic
• Drain Opening: 4
• End Connection 1: No Hub
• Fits Pipe Size: 4 in
• IAPMO Listed: No
• Pipe Size: 4 Inch
• Outlet: No-Hub
• Material: ZC D.C.C.I. Body with Cast Iron Dome
• Brand: Zurn
• Model: Z100-4NH-89
• MPN: Z100-4NH-89
• Country of Origin: China
• Mfg. Model: Z100-4NH-89-C-R
• SKU: 711773
