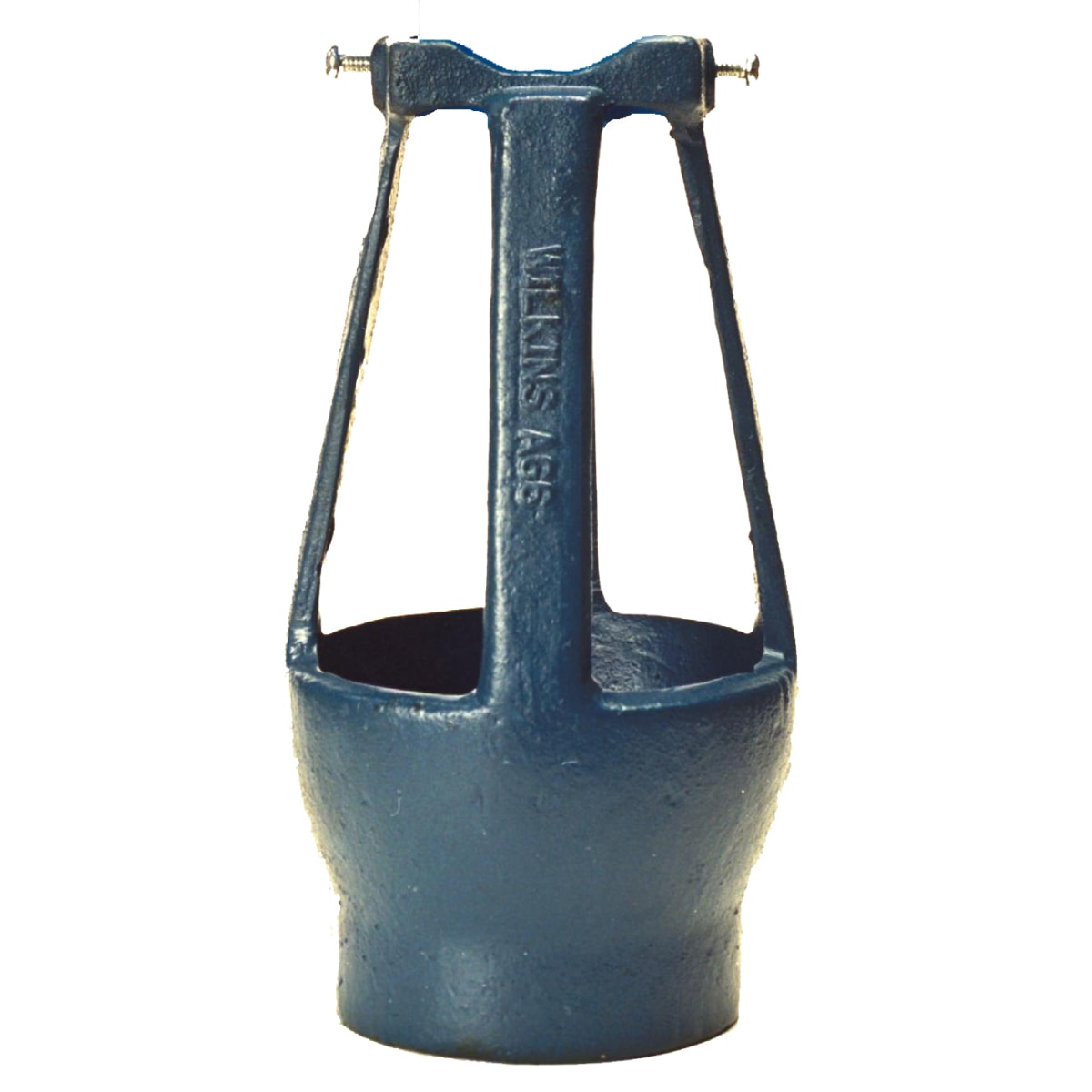

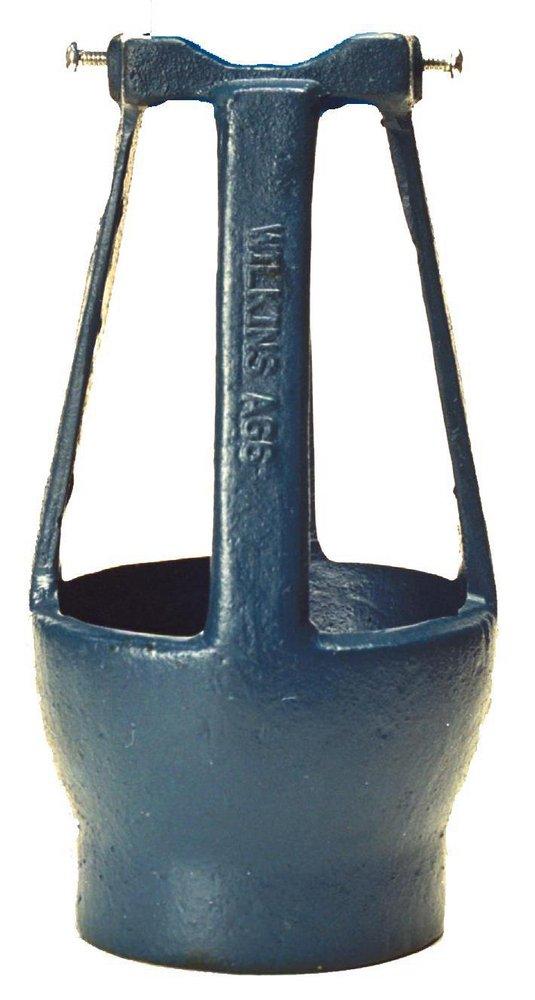

Zurn Wilkins AG-7 Air Gap Fitting Power 8 - 10 in Replacement MPN AG-7

Product Description

The Zurn Wilkins AG-7 Air Gap Fitting is designed for indoor installations of 8 to 10-inch models, specifically compatible with the 375, 375A, and 475 Reduced Pressure Principle Backflow Preventers. This fitting connects a drain pipe to the backflow preventer, allowing for the safe discharge of nuisance water while preventing a cross-connection with potable water supplies.

• Facilitates the attachment of a drain line to a Reduced Pressure Principle Assembly.
• Constructed with durable materials to resist corrosion.
• Complies with ANSI/ASME A112.1.2 standards.

Product Highlights

Ideal for applications requiring an effective air gap to manage drainage and protect potable water supplies.

Product Information

Standard Information

• Brand: Zurn Wilkins
• MPN: AG-7

Technical Specifications

• Type: Air Gap Fitting
• Size: 8 - 10 inches
• Material: Cast Iron
• Finish Color: Gray
• Weight: 9.92 lbs
• Width: 6.25 inches
• Height: 11 inches
• Length: 6.25 inches
• Connection Size: 4 inches NPT Outlet
