Product Description

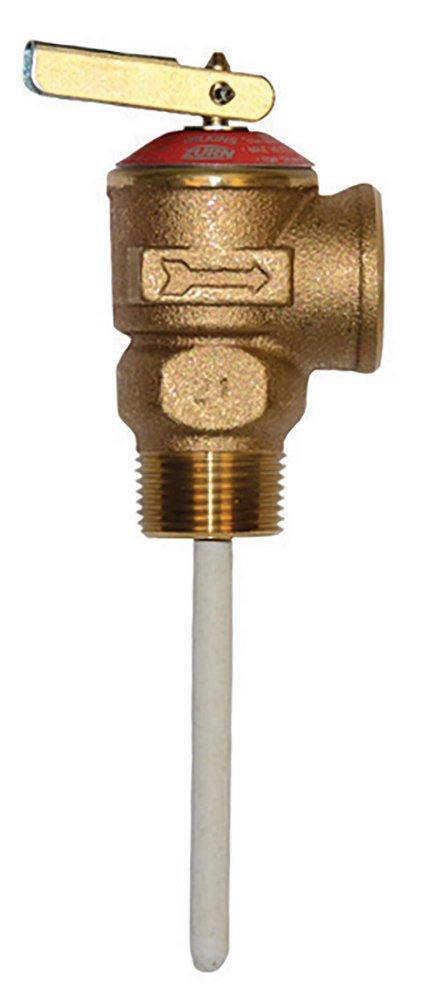

The Zurn TP1100AE-3C-150C is a temperature and pressure relief valve designed for use with potable water heating storage vessels. It is set at 150 psi to protect against over-temperature or excessive pressure, primarily for residential water heaters. The valve features a copper thermal element coated with epoxy for added protection and durability. It is suitable for vertical and horizontal mounting, ensuring compatibility with different installations.
- Protects against excessive pressure, reducing damage risk
- Thermal element features epoxy coating for enhanced durability
- Available in multiple pressure settings of 75, 100, 125, 150, and 175 psi
Product Highlights
Ideal for residential applications, this valve is certified by ASME Section IV and compliant with ANSI Z21.22/CSA 4.4 standards.
Product Information
Standard Information
-
Brand: Zurn Wilkins
-
Part Number: TP1100AE-3C-150C
Technical Specifications
-
Type: Temperature and Pressure Relief Valve
-
Connection Size: 3/4 x 3/4
-
Connection Type: MNPT x FNPT
-
Maximum Working Water Pressure: 150 psi
-
Maximum Working Water Temperature: 210 deg F
-
Material: Bronze, Cast Brass
-
Dimensions: 6.5 inches (Length), 1.25 inches (Width), 1.25 inches (Height)
-
Weight: 1 lbs
