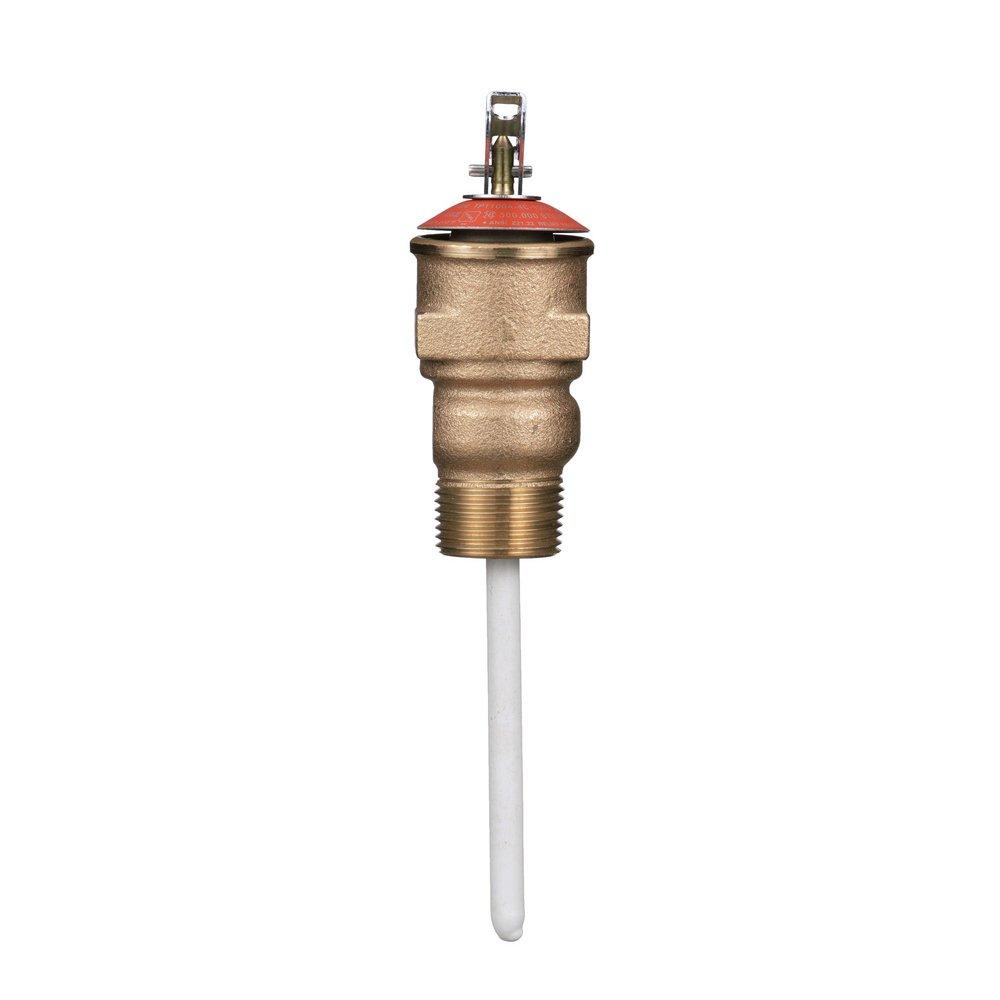

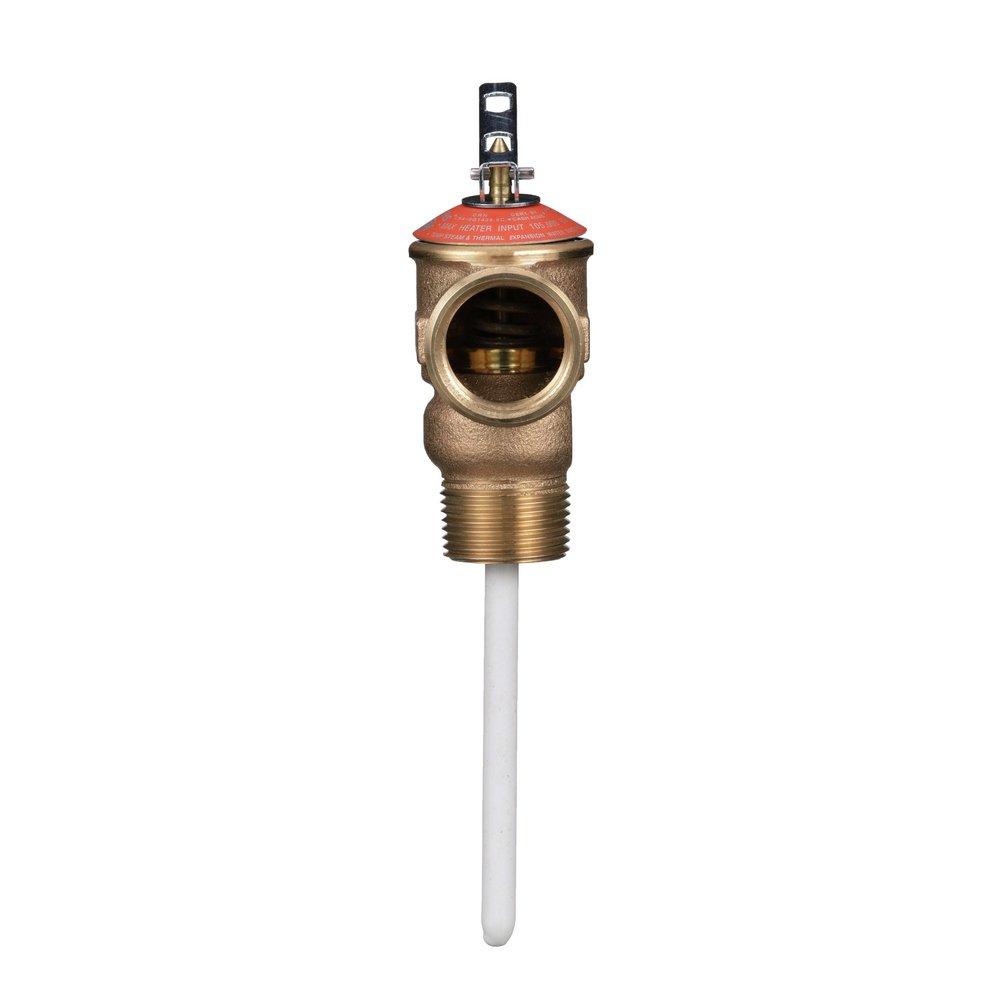

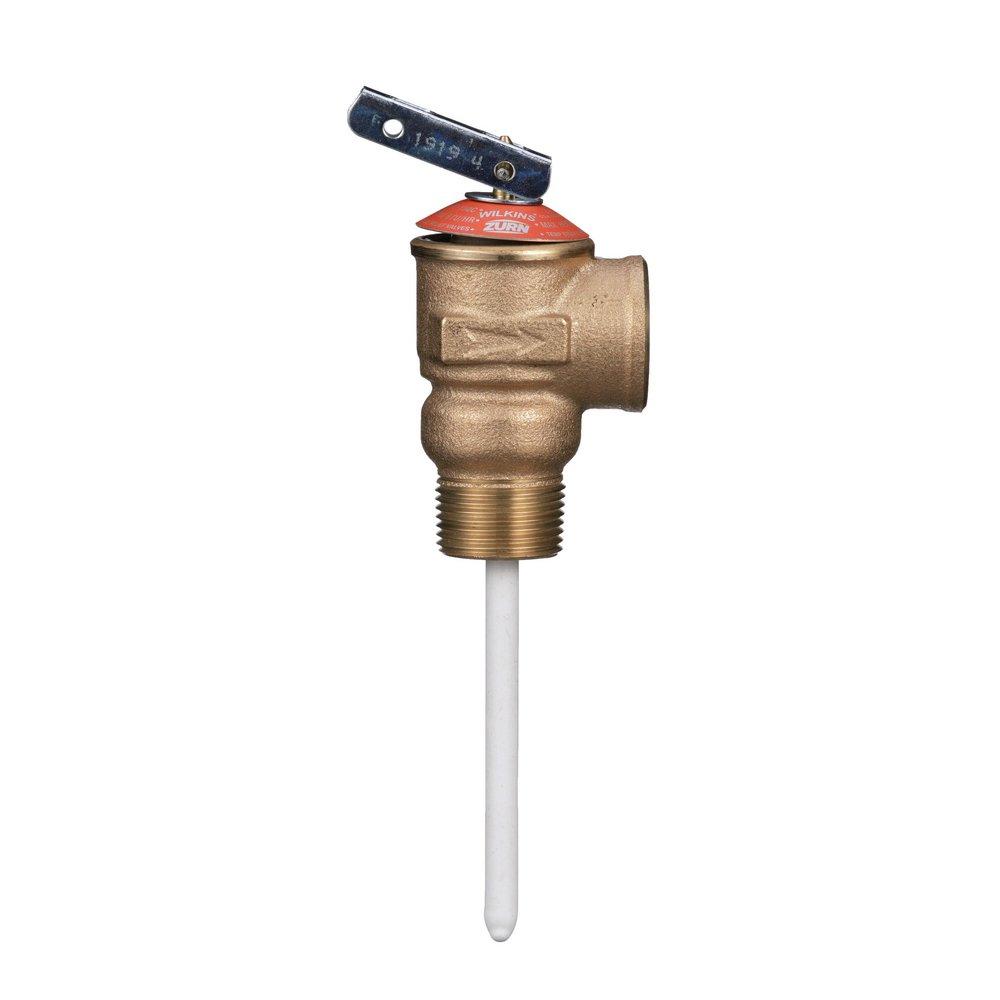

Zurn TP1100A-4C-150C T&P Relief Valve MNPT x FNPT 4 Probe Set at 150

Product Description

The Zurn TP1100A-4C-150C Temperature and Pressure Relief Valve is designed for use in potable water heating storage vessels. This valve protects against over-temperature and excessive pressure. It is specifically set to operate at one hundred fifty psi. The valve features a combination of cast brass and bronze materials for durability. The copper thermal element is coated with epoxy for protection against theft. This product is commonly installed on water heaters in residential environments.

• Commonly used on residential water heaters
• Provides protection from excessive pressure
• Thermal element protected with epoxy coating

Product Highlights

This valve is crucial in preventing damage in residential applications due to excessive pressure. It is CSA certified and follows ASME Section IV standards.

Product Information

Standard Information

• Brand: Zurn Wilkins
• MPN: TP1100A-4C-150C

Technical Specifications

• Size: 3/4 inch
• Type: Temperature and Pressure Relief Valve
• Material: Bronze, Cast Brass
• Connection Type: MNPT x FNPT
• Maximum Working Pressure: 150 psi
• Maximum Working Temperature: 210 degrees F
• Weight: 1 lbs
• Length: 6.5 inches
• Width: 1.25 inches
• Height: 1.25 inches
