Zurn RD2130-NH4-CI RD2130 Combination Roof Drain and Overflow with 4 No-Hub Outlet

Product Description

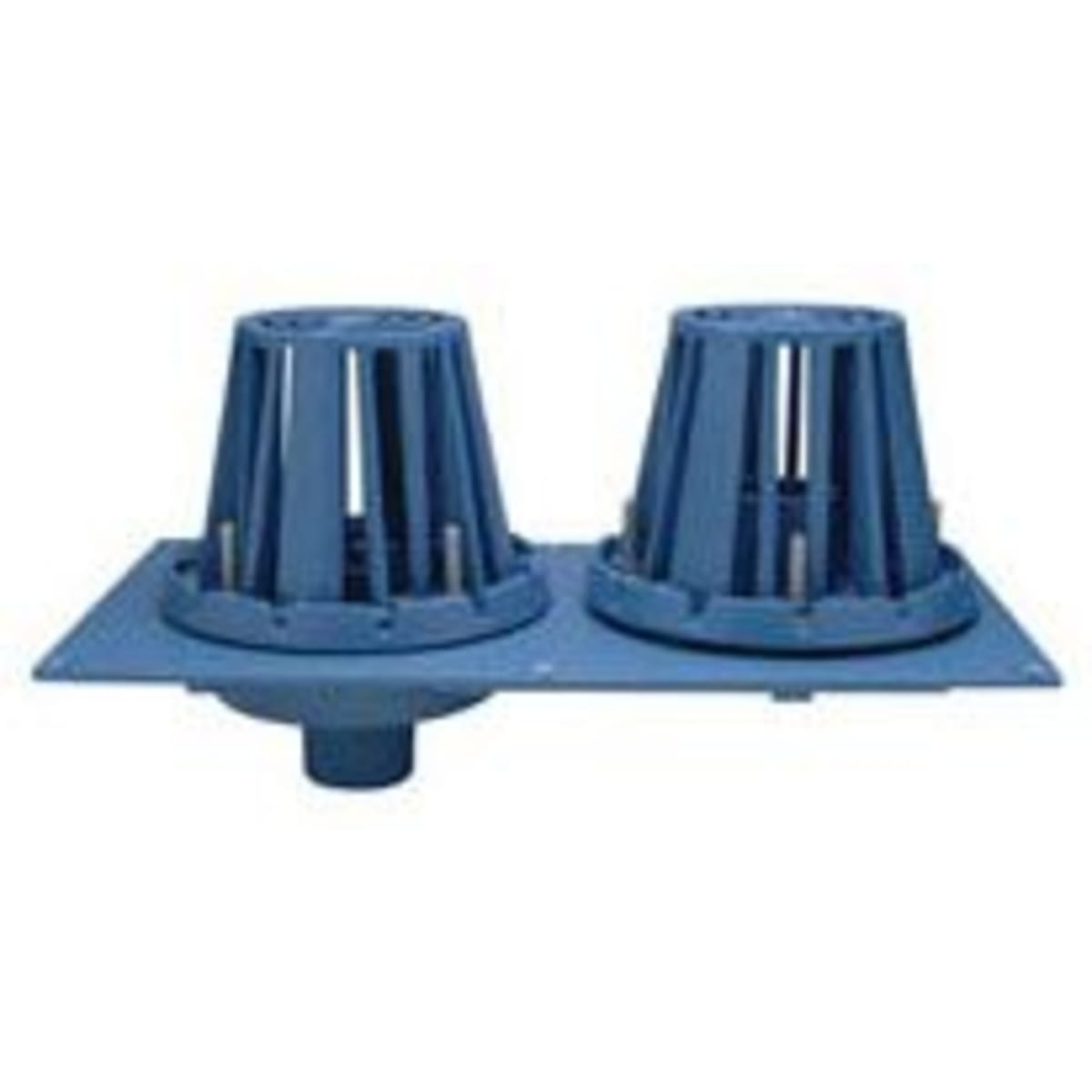

Zurn's RD2130-NH4-CI is a combination roof drain and overflow made from a Dura-Coated cast iron body. This component features a cast iron clamp device equipped with an integral gravel guard, roof sump receiver, and a cast iron dome strainer. It includes a four-inch no hub outlet for straightforward installation.

• Ships as a complete and assembled system
• Designed for both new construction and retrofit applications
• Overflow dome included

Product Highlights

This roof drain ensures seamless connections for an overflow drain pipe, safeguarding the roof against overflow conditions. The provided cast iron clamp device guarantees a robust, watertight seal.

Product Information

Standard Information

• Brand: Zurn
• Part #: ZURN-RD2130-NH4-CI

Technical Specifications

• Material: Cast Iron
• Height: 9.5 inches
• Width: 10.5 inches
• Length: 19 inches
• Diameter: 8-3/8 inches
• Weight: 37.75 lbs
• ASME Standard: A112.6.4
• Commercial or Residential: Primarily Commercial
