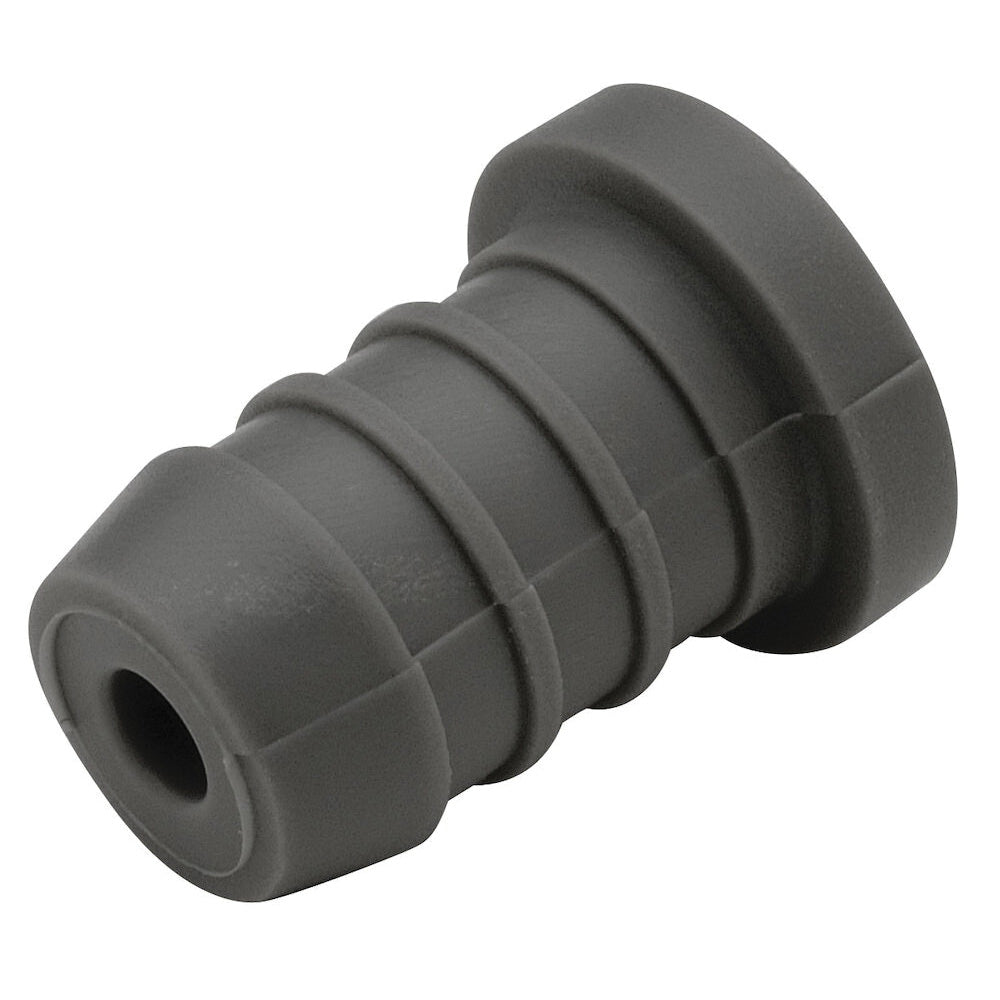

Zurn QXP3XP Test Plug Plastic (1/2 Inch)

Product Description

Zurn QXP3XP is a plastic test plug with a 1/2 inch barb connection designed for pressure testing PEX plumbing and radiant heating systems. The crimp-style plug measures approximately 0.83 inch in length with a 0.63 inch plug diameter and is constructed of molded polymer/plastic. It is intended for temporary pressure testing applications and provides corrosion and chemical resistance for aggressive water environments.

• 1/2 inch barb (PEX barb) connection for use with 1/2 in PEX fittings
• Plug diameter 0.63 in and length 0.83 in; overall dimensions ~0.83 in L x 0.63 in H x 0.63 in OD
• Plastic/polymer construction; rated for temporary pressure testing (pressure rating up to 80 psi at 200°F reported)

Product Highlights

Crimp-style plastic test plug for 1/2 in PEX with 0.63 in plug diameter, 0.83 in length, and 1/2 in barb connection for temporary pressure testing.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: QXP3XP
• Country of Origin: Import

Technical Specifications

• Brand: Zurn
• MPN: QXP3XP
• UPC: 08416967768
• Type: Crimp test plug
• Size: 1/2 inch
• Connection: 1/2 inch barb (PEX barb)
• Material: Plastic (polymer)
• Plug/Ball Diameter: 0.63 inch
• Plug/Ball Length: 0.83 inch
• Dimensions: 0.83 in L x 0.63 in H x 0.63 in OD
• Fitting Type: Plug
• Application: Plumbing and radiant heating systems; for use with PEX tubing
• Series: ZurnPEX QickSert
• Pressure Rating: Up to 80 psi at 200°F
• Weight: 0.01 lb
