Zurn QQT777GX Tee - 1-1/2 Barb

Product Description

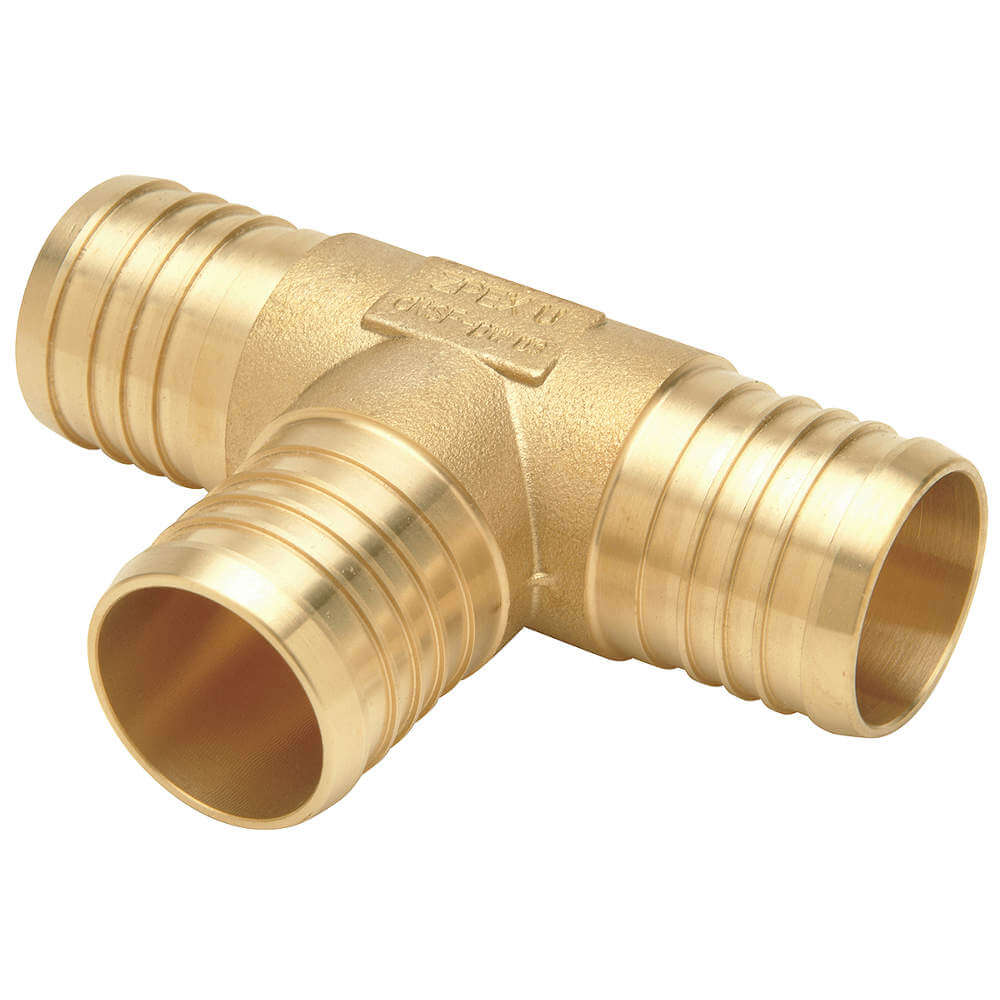

The Zurn QQT777GX is a brass tee fitting designed for PEX plumbing systems. It has a nominal size of one and one-half inches with barb connections. This durable fitting is suitable for both hot and cold water applications. It offers a pressure rating of up to one hundred sixty psi and a temperature rating ranging from seventy-three to two hundred degrees Fahrenheit.

• Easy installation without soldering.
• Lead-free construction for safe drinking water.
• Compatible with ASTM F877 and F1807 specifications.

Product Highlights

This tee fitting allows multi-directional flow from a single main line, making it ideal for various piping configurations.

Product Information

Standard Information

• Brand: Zurn Industries, Inc
• Material: Brass

Technical Specifications

• Dimensions: 2.68 inches height
• Nominal Size: 1-1/2 inches
• Length: 4.05 inches
• Pressure Rating: 80 to 160 psi
• Temperature Rating: 73 to 200 degrees Fahrenheit
• Connection Type: Barb
• Standards/Approval: ASTM F877, ASTM F1807, CSA B137.5, ANSI/NSF 14, ANSI/NSF 61 Annex G
