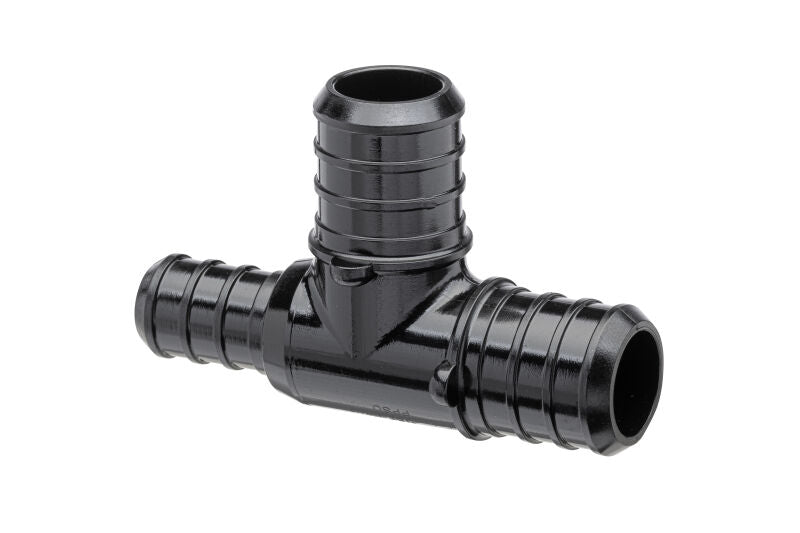

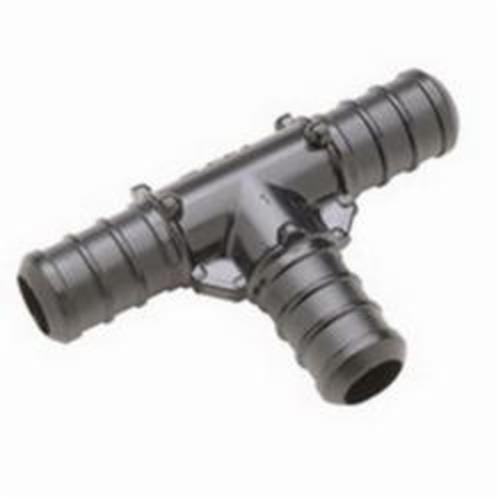

Zurn QQPT434X Cr polymer tee (3/4 x 1/2 x 3/4 Barb x Barb x Barb)

Product Description

Zurn QQPT434X is a Cr polymer crimp reducing tee for PEX tubing with 3/4 in x 1/2 in x 3/4 in barb connections. The molded QickSert CR tee is intended for hot and cold potable water and radiant heating systems and is lead-free. It meets relevant material and product standards for PEX fittings and is used where a reducing tee branch is required in PEX piping.

• Material: CR polymer (QickSert CR) with barb x barb x barb end connections for PEX tubing
• Pressure and temperature: rated 160 PSI at 73°F; 100 PSI at 180°F; 80 PSI at 200°F; temperature up to 200°F
• Standards and use: meets ASTM F877/F2159, NSF/ANSI 14/61, and CSA B137.5; suitable for hot and cold potable water, plumbing, and radiant heating systems

Product Highlights

Reducing PEX crimp tee, 3/4 in x 1/2 in x 3/4 in barb connections, molded CR polymer, lead-free, meets ASTM and NSF/CSA standards

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: QQPT434X

Technical Specifications

• Brand: ZURN
• MPN: QQPT434X
• Product Type: Reducing tee (crimp, reducing)
• Series: ZurnPEX QickSert CR
• Nominal Size: 3/4 in x 1/2 in x 3/4 in
• End Connection: Barb x Barb x Barb (PEX barb)
• Material: CR polymer (Acudel / QickSert CR)
• Material Specification: ASTM F877 / ASTM F2159
• Pressure Rating: 160 PSI at 73°F; 100 PSI at 180°F; 80 PSI at 200°F
• Temperature Rating: Up to 200°F
• Maximum Operating Pressure: 160 psi
• Dimensions: Length 2.4 in; Width 2.4 in; Height 1.2 in
• Method of Manufacture: Molded
• Applicable Standards: NSF/ANSI 14; NSF/ANSI 61; CSA B137.5; ASTM F877; ASTM F2159
• Application: Hot and cold potable water systems, plumbing, radiant heating systems
• Lead Free: Yes
• Intended Tubing: PEX tubing
• UPC: 08416968412
