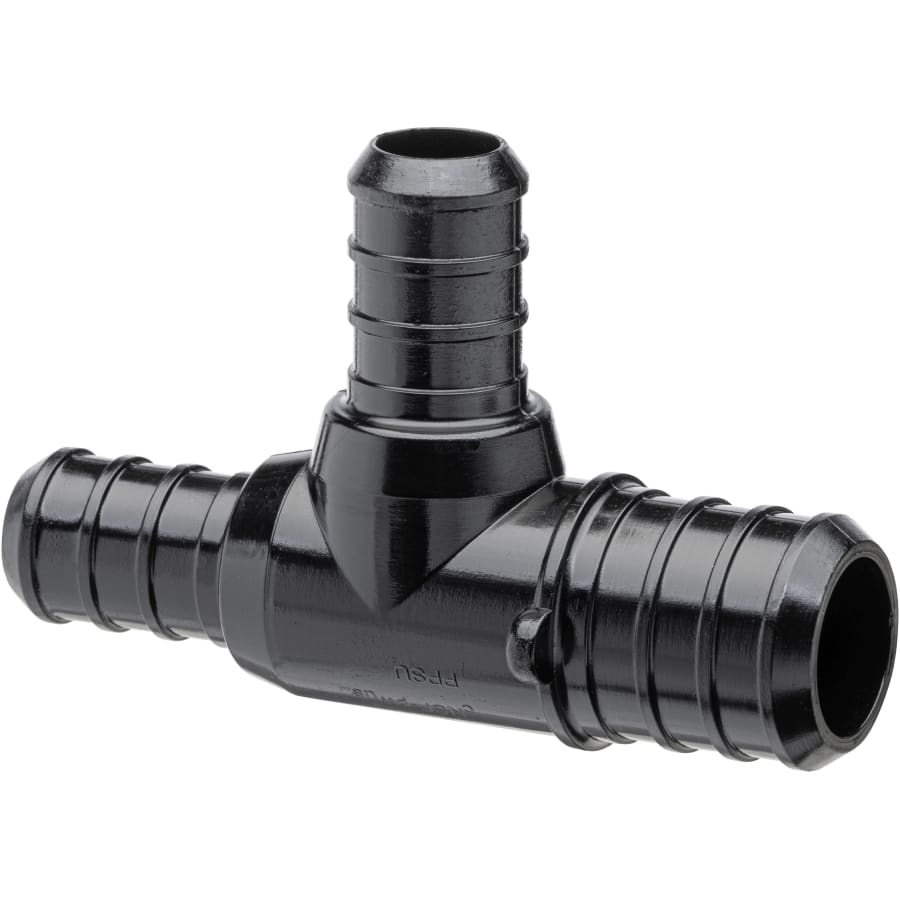

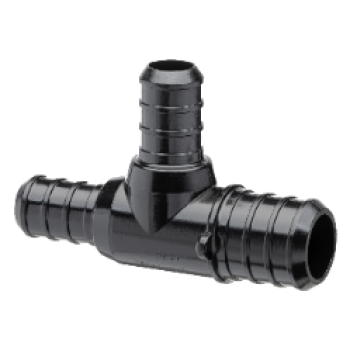

Zurn QQPT433X Cr Polymer Tee 3/4 Barb x 1/2 Barb x 1/2 Barb

Product Description

Zurn QQPT433X is a CR polymer reducing tee with barb connections sized 3/4 x 1/2 x 1/2 inch for PEX systems. It provides crimp-compatible barb connections for potable hot and cold water and radiant heating applications, meets ASTM F877/F2159 material specifications, and complies with NSF/ANSI 14/61 and CSA B137.5. The lead-free fitting is rated to 160 PSI at 73 Deg F and is compatible with ZurnPEX QickSert installations and PEX tubing.

• CR polymer construction; material specification ASTM F877/F2159; lead-free
• Barb connections 3/4 in x 1/2 in x 1/2 in; crimp reducing tee compatible with PEX
• Pressure rated 160 PSI at 73 Deg F; intended for hot and cold potable water and radiant heating

Product Highlights

CR polymer reducing tee for PEX systems with 3/4 x 1/2 x 1/2 in barb connections; ASTM F877/F2159 and NSF/ANSI 14/61, CSA B137.5 compliant; 160 PSI at 73 Deg F; lead-free.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: QQPT433X
• Country of Origin: USA

Technical Specifications

• Brand: ZURN
• MPN: QQPT433X
• UPC: 08416968411
• SKU: QQPT433X / 13147001589
• Reference ID: ZURNQQPT433X
• Material: CR polymer
• Material Specification: ASTM F877/F2159
• Type: Crimp, Reducing
• Series / Technology: ZurnPEX QickSert
• Connection Type: Barb x Barb x Barb
• Connection Size: 3/4 in x 1/2 in x 1/2 in
• Nominal Size: 3/4 inch x 1/2 inch x 1/2 inch
• Pressure Rating: 160 PSI at 73 Deg F
• Operating Temperature: 200 Deg F
• Application: Hot and cold potable water systems; plumbing and radiant heating systems
• Applicable Standards: NSF/ANSI 14/61; CSA B137.5
• Lead Free: Yes
• Used On: PEX tubing
• Dimensions: 2.4 in L x 1.2 in W x 1.2 in H
• Weight: 0.02 lb
• Certifications: NSF/ANSI 14/61; CSA B137.5
• Number in Pack: 50
• Country of Origin: China
