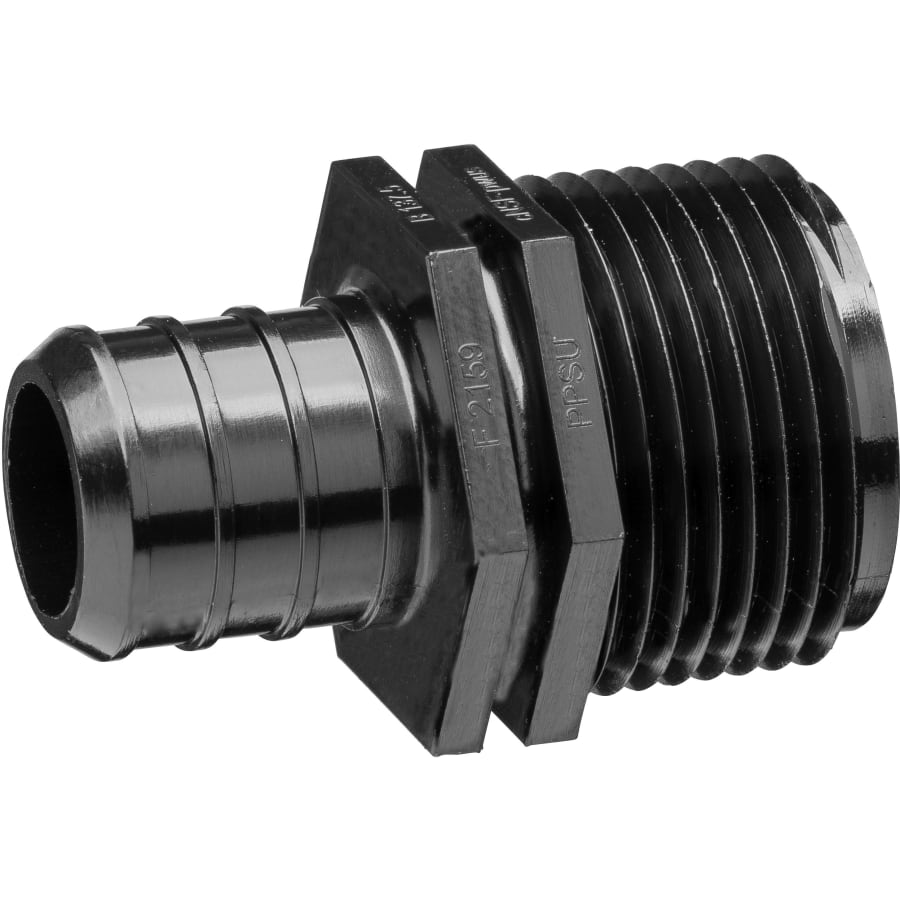

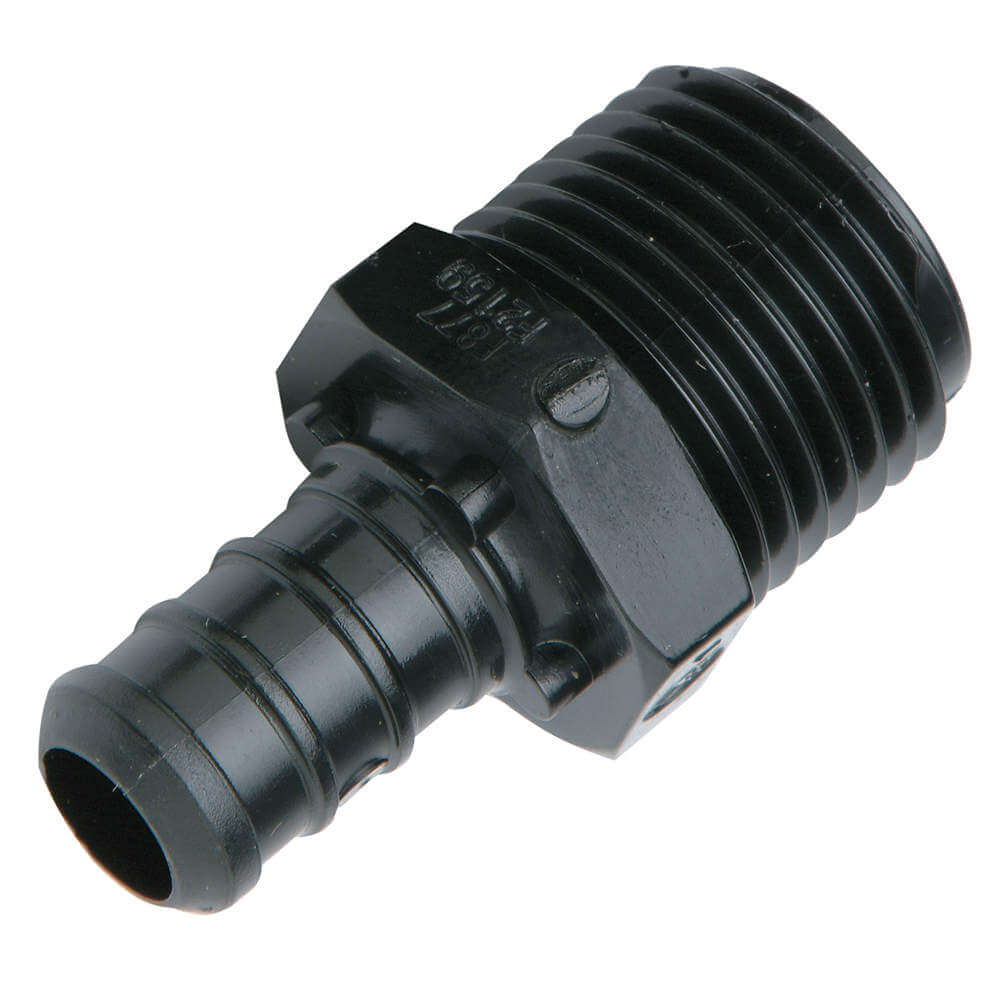

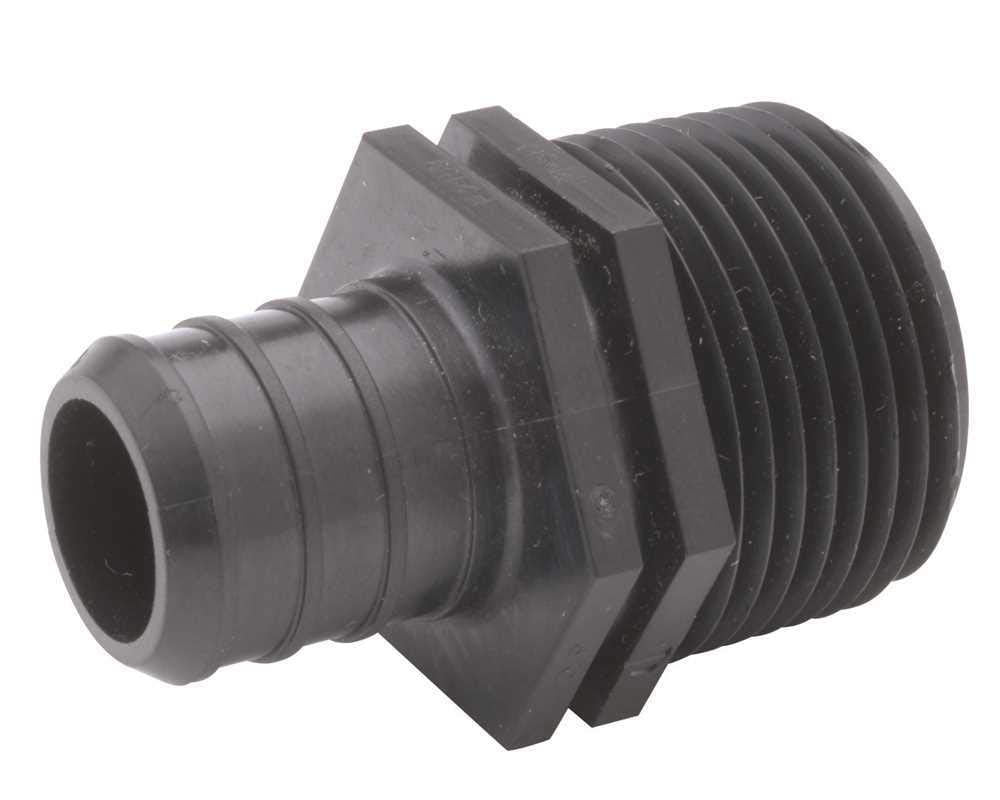

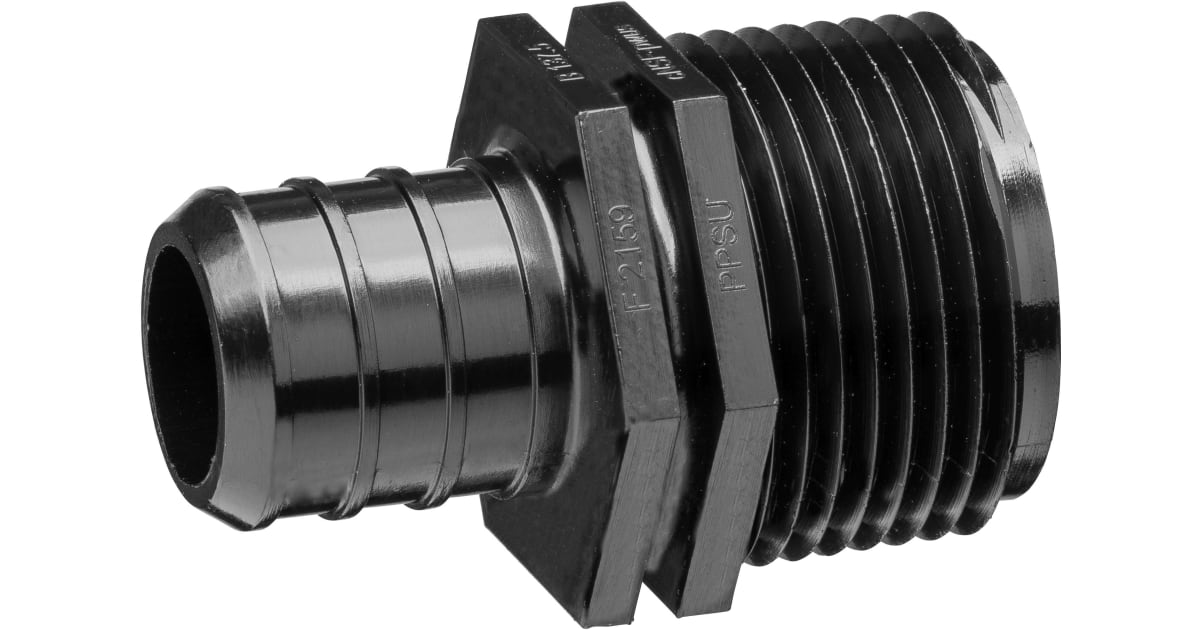

Zurn QQPMC44X QickSert polymer male adapter (3/4 in barb x 3/4 in MPT)

Product Description

Zurn QQPMC44X is a QickSert CR polymer male adapter that transitions from a 3/4 in PEX barb to a 3/4 in male pipe thread (MPT). The fitting is lead free and constructed from chlorine- and corrosion-resistant CR polymer for potable hot and cold water and radiant heating systems. It is designed for insert and crimp installations and is compatible with PEX crimp fittings and stainless steel QickClamp rings.

• 3/4 in barb x 3/4 in male pipe thread (MPT) connection for PEX to threaded pipe transitions
• CR polymer construction; lead free and resistant to chlorine and corrosion
• Pressure rated: 160 psi at 73°F, 100 psi at 180°F, 80 psi at 200°F; compatible with crimp and QickClamp installations

Product Highlights

Barb-to-MPT QickSert polymer adapter for PEX; lead free; certified to ASTM F877/F2159 and NSF/ANSI standards; rated to 200°F.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: QQPMC44X
• Country of Origin: United States

Technical Specifications

• Brand: Zurn
• MPN: QQPMC44X
• Model: QQPMC44X
• Product Type: QickSert polymer adapter
• Material: CR polymer (chlorine- and corrosion-resistant polymer)
• Connection: 3/4 in barb x 3/4 in male pipe thread (MPT/MNPT)
• Size: 3/4 in x 3/4 in
• Thread Size: 3/4-14
• Fitting Type: Barb x male threaded adapter
• Lead Free: Yes
• Pressure Rating: 160 psi at 73°F; 100 psi at 180°F; 80 psi at 200°F
• Maximum Operating Temperature: 200°F
• Operating Temperature Range: +33°F to +200°F
• Material Specification / Standards: ASTM F877; ASTM F2159
• Certifications / Compliance: NSF/ANSI 14; NSF/ANSI 61; NSF/ANSI 372; CSA B137.5
• Compatible With: PEX crimp fittings and stainless steel QickClamp rings
• Application: Hot and cold potable water, plumbing and radiant heating systems
• Length: 1.64 in
• Maximum Operating Pressure: 160 psi
• Series / Connection System: QickSert
