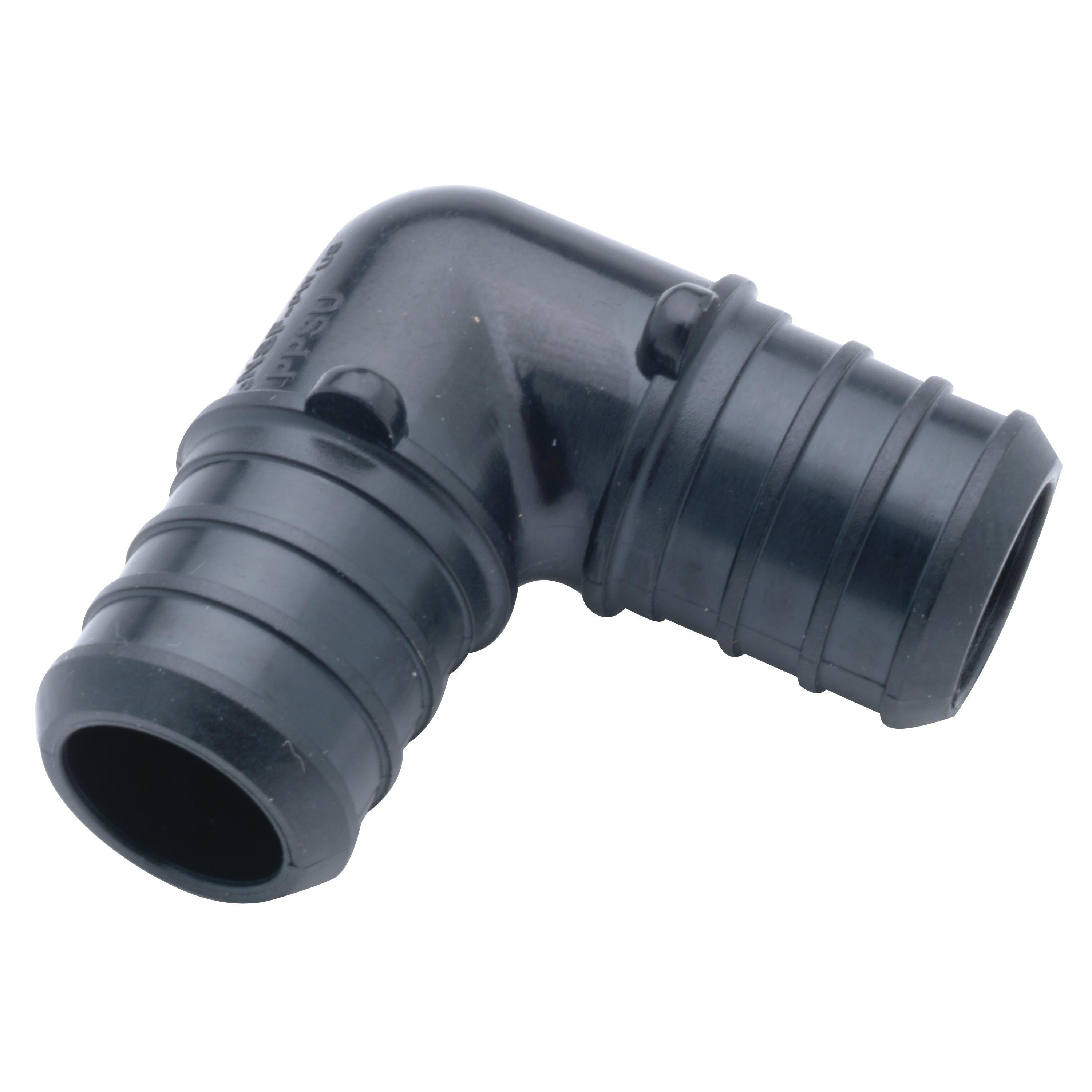

Zurn QQPE44X Cr Polymer Elbow (3/4 Barb x 3/4 Barb, 90 Degree)

Product Description

Zurn QQPE44X is a CR polymer 90-degree PEX elbow with 3/4 inch barb-to-barb connections designed for crimp-style installations. The molded fitting meets ASTM F877/F1807/F2159 material specifications and is listed to NSF/ANSI 14 and 61 and CSA B137.5. It is rated 160 psi at 73°F with a temperature rating to 200°F and is intended for hot and cold potable water, plumbing, and radiant heating systems.

• CR polymer construction; molded; meets ASTM F877 / F1807 / F2159
• 3/4 in barb x 3/4 in barb, 90-degree crimp-style elbow; dimensions 1.2 in L x 1.2 in H
• Pressure ratings: 160 psi at 73°F; 100 psi at 180°F; 80 psi at 200°F; lead-free; NSF/ANSI 14 and 61; CSA B137.5

Product Highlights

CR polymer 90° PEX elbow, 3/4 in barb connections, 160 psi @ 73°F, NSF/ANSI and CSA compliant

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: QQPE44X
• Country of Origin: China

Technical Specifications

• Brand: Zurn
• MPN: QQPE44X
• Product Type: Elbow Fitting
• Angle: 90 Degree
• Size: 3/4 in x 3/4 in
• End Connection: Barb x Barb
• Material: CR polymer
• Material Specification: ASTM F877 / F1807 / F2159
• Process: Molded
• Dimensions: 1.2 in L x 1.2 in H
• Pressure Rating: 160 psi at 73°F
• Pressure Rating (at 180°F): 100 psi at 180°F
• Pressure Rating (at 200°F): 80 psi at 200°F
• Temperature Rating: 200 deg F
• Application: Hot and cold water; plumbing; radiant heating system
• Applicable Standards: NSF/ANSI 14; NSF/ANSI 61; CSA B137.5
• Lead Free: Yes
• UPC: 08416968408
• For Use With: Zurn PEX potable non-barrier pipes
• Weight: 0.02 pound
