Product Description

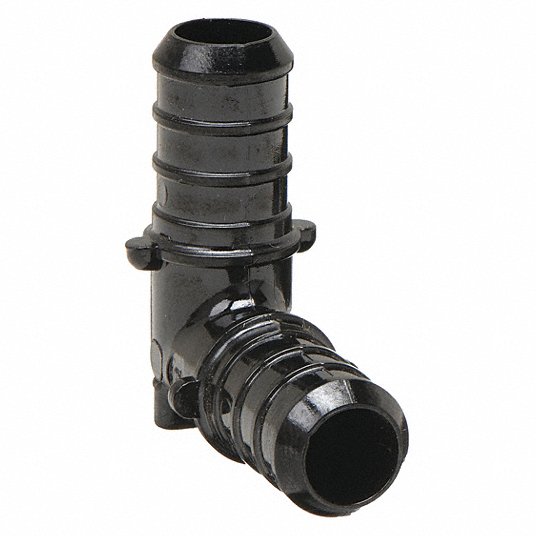

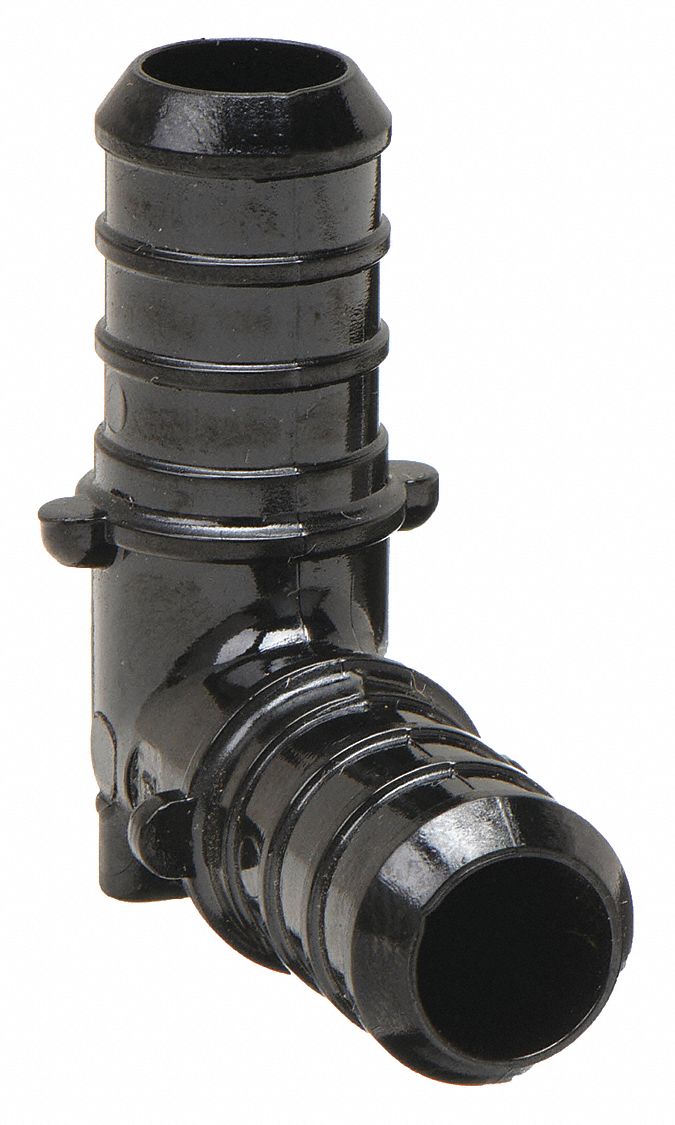

The Zurn QQPE33X is a CR polymer 90-degree elbow fitting with 1/2-inch barb x 1/2-inch barb connections for PEX plumbing systems. It uses an insert-and-crimp QickSert CR connection method compatible with Zurn PEX potable non-barrier pipes and meets ASTM F877/F2159 material specifications. The fitting is lead-free, rated to 160 psi at 73°F, and suitable for potable water and radiant heating applications with an approximate size of 1.13 in L x 1.13 in H.
- CR polymer 90° elbow with 1/2 in barb x 1/2 in barb connections (QickSert CR insert-and-crimp system)
- Meets ASTM F877 and ASTM F2159; certified to NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 372 and CSA B137.5; lead-free
- Pressure rated 160 psi at 73°F; operating temperature up to 200°F; approximate dimensions 1.13 in L x 1.13 in H
Product Highlights
90° CR polymer PEX crimp elbow, 1/2 in barb x 1/2 in barb, 160 psi rating, meets ASTM F877/F2159 and NSF/ANSI standards
Product Information
Standard Information
-
Brand: ZURN
-
Manufacturer Part Number: QQPE33X
-
Country of Origin: China
Technical Specifications
-
Brand: ZURN
-
Manufacturer: Zurn Elkay Water Solutions
-
Manufacturer Part Number (MPN): QQPE33X
-
Series: QQPE-X (QickSert CR)
-
Model/Title: Cr Polymer Elbow / PEX QickSert CR 90 Deg Elbow
-
Material: CR polymer (Acudel, QickSert CR)
-
Material Specification: ASTM F877; ASTM F2159
-
Fitting Type: 90 degree elbow
-
Bend Angle: 90 Degree
-
Connection Type: Barb x Barb
-
Connection Size: 1/2 inch x 1/2 inch
-
Connection Method: Insert-and-crimp (Crimp)
-
For Use With: Zurn PEX potable non-barrier pipes; PEX tubing
-
Pressure Rating: 160 psi at 73°F
-
Maximum Operating Pressure: 160 psi
-
Operating Temperature: 33°F to 200°F
-
Dimensions: Approximately 1.13 in L x 1.13 in H
-
Standards and Certifications: NSF/ANSI 14; NSF/ANSI 61; NSF/ANSI 372; CSA B137.5; ASTM F877; ASTM F2159
-
Lead-Free: Yes
-
Application: Plumbing; potable water distribution; radiant heating systems
-
Barb Style: Standard
-
UPC: 08416968406
-
Country of Origin: China
