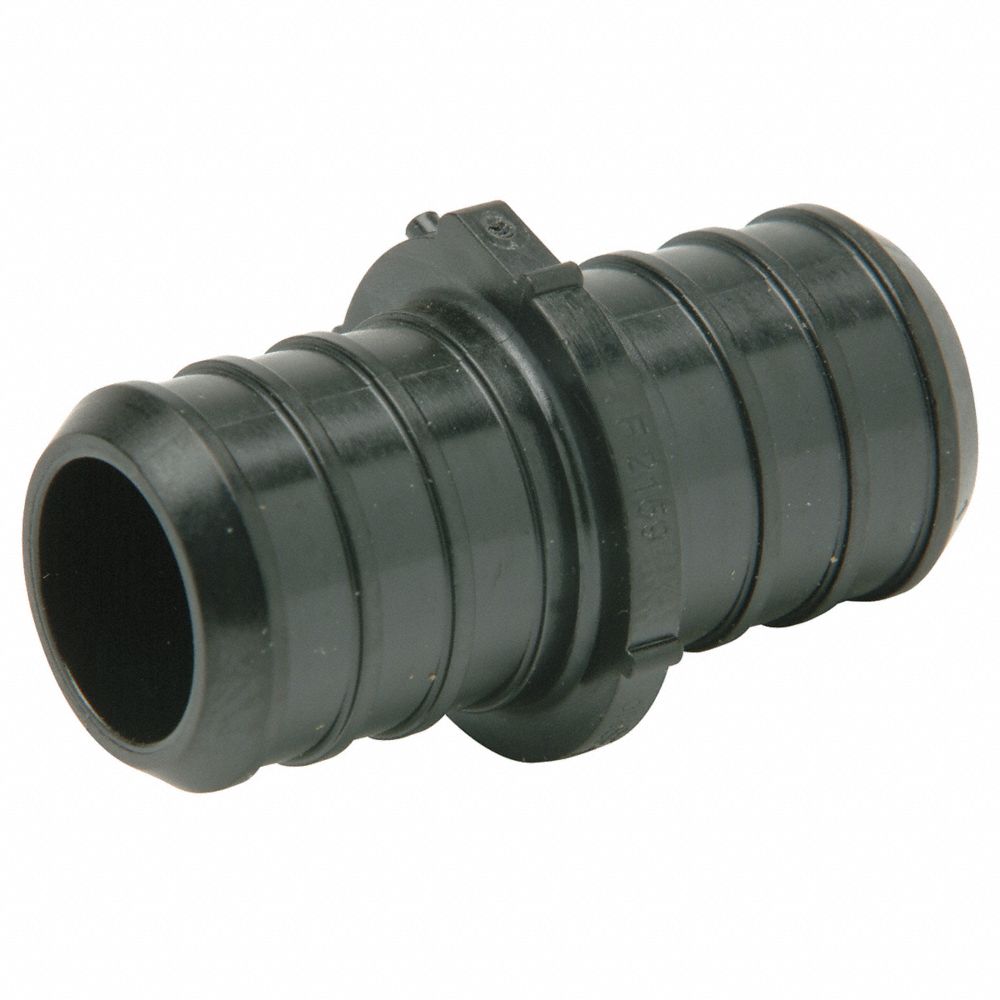

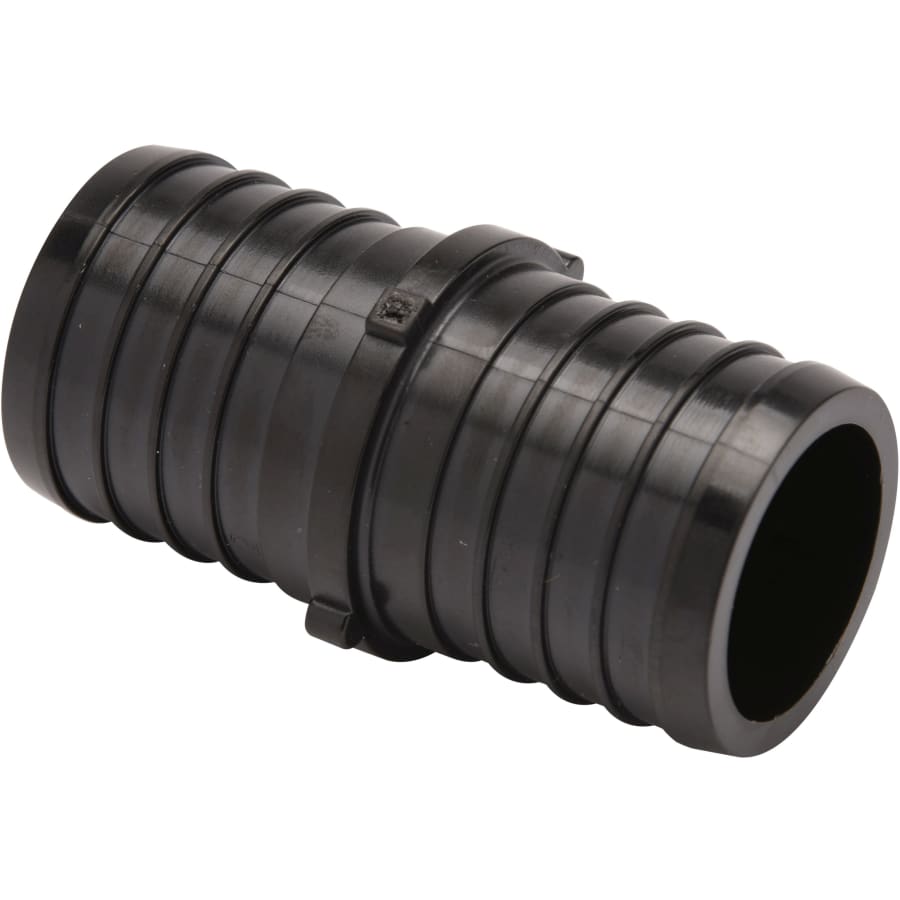

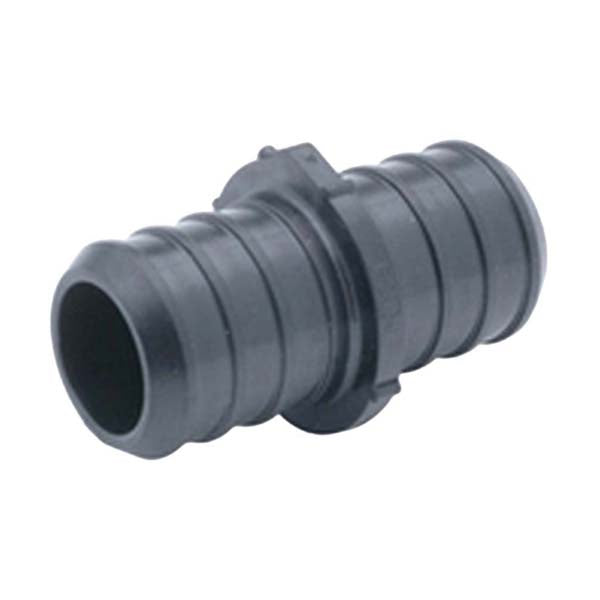

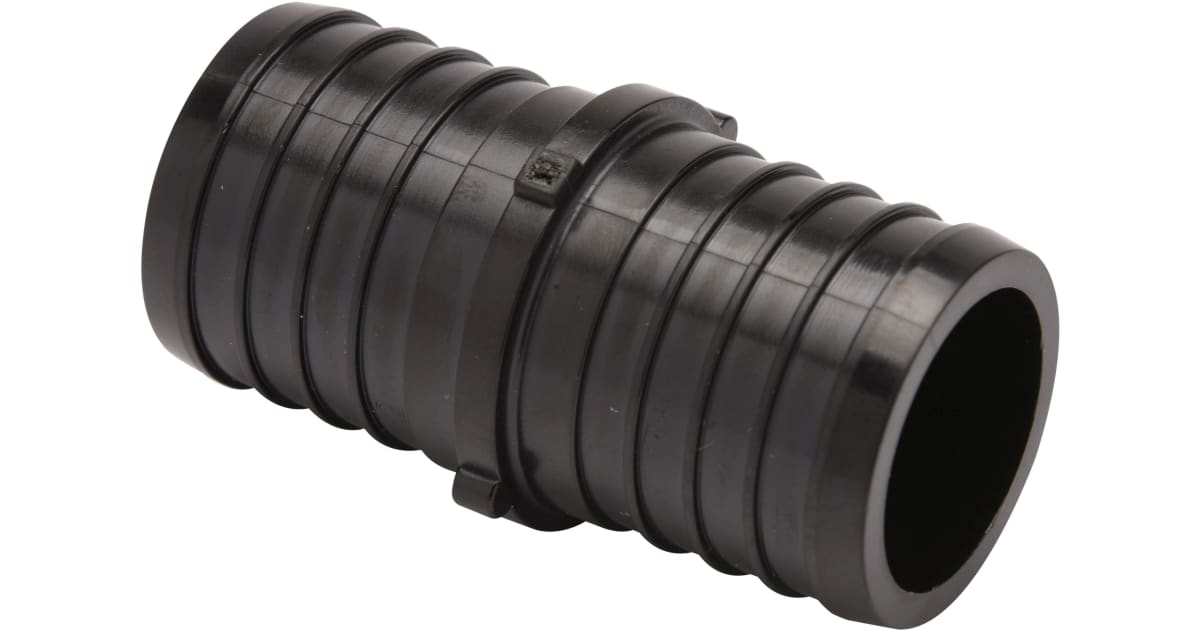

Zurn QQPC54X QickSert CR Polymer Reducing Coupling (1 in x 3/4 in)

Product Description

Zurn QQPC54X is a QickSert CR polymer reducing coupling for PEX tubing with a 1 in barb to 3/4 in barb configuration. It functions as a crimp-style PEX coupling for hot and cold potable water and radiant heating systems, meeting ASTM F877 and F2159 material specifications and applicable NSF/ANSI and CSA standards. The fitting is lead-free, molded from CR polymer, and rated to 160 PSI at 73 deg F.

• CR polymer (molded) construction; material meets ASTM F877 / F2159
• Reducing barb x barb connection, 1 in to 3/4 in; installation type: crimp
• Pressure rating 160 PSI at 73 deg F; suitable for hot and cold potable water and radiant heating; NSF/ANSI and CSA certified

Product Highlights

1 in x 3/4 in PEX crimp reducing coupling; CR polymer; 160 PSI at 73 deg F; NSF/ANSI and CSA compliant

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: QQPC54X
• Country of Origin: USA

Technical Specifications

• Brand: ZURN
• MPN: QQPC54X
• Product Line: QickSert CR
• Product Type: Reducing coupling
• Connection Type: Barb x Barb
• Installation Type: Crimp (reducing)
• Size: 1 in x 3/4 in
• Material: CR polymer (molded)
• Material Specification: ASTM F877; ASTM F2159
• Pressure Rating: 160 PSI at 73 deg F
• Temperature Range: -33 to 200 deg F
• Max Operating Temperature: 200 deg F
• Applications: Hot and cold potable water; plumbing; radiant heating; use on PEX tubing
• Standards/Certifications: NSF/ANSI 14; NSF/ANSI 61; NSF/ANSI 372; CSA B137.5
• Lead Free: Yes
• Length: 1.668 in
• Burst Strength: Over 700 lbs before failure
• UV Resistance: Up to 6 months exposure
• UPC: 08416968595
• Weight: 0.02 lb
