Product Description

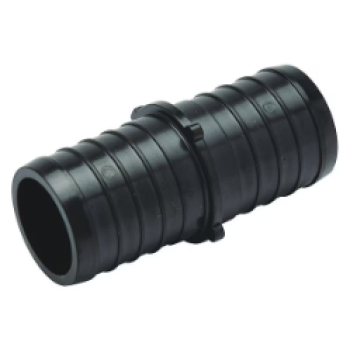

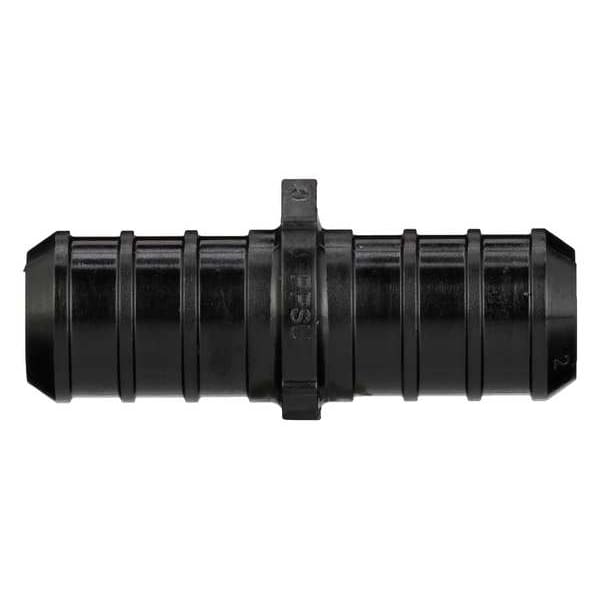

Zurn QQPC33X is a CR polymer coupling designed to join 1/2 inch PEX tubing with barb-to-barb connections. The coupling is a crimp-type fitting molded from engineered polymer and conforms to ASTM F877 and ASTM F2159 material specifications. It is intended for hot and cold potable water, plumbing, and radiant heating systems and is pressure rated for typical PEX system service.
- CR polymer (Acudel/engineered polymer) construction with 1/2 in barb x 1/2 in barb connections for PEX tubing
- Crimp-type coupling molded per ASTM F877 and ASTM F2159; complies with NSF/ANSI 14 and NSF/ANSI 61 and CSA B137.5
- System pressure ratings include 160 psi at 73°F (with reduced ratings at elevated temperatures); dimensions ~0.68 in OD x 1.5 in L
Product Highlights
CR polymer PEX crimp coupling, 1/2 in barb x barb, meets ASTM F877/F2159 and NSF/ANSI standards, system rated 160 psi @ 73°F; 0.68 in OD x 1.5 in length.
Product Information
Standard Information
-
Brand: ZURN
-
Manufacturer Part Number: QQPC33X
-
Country of Origin: China
Technical Specifications
-
Brand: Zurn
-
MPN: QQPC33X
-
Part Number / SKU: QQPC33X
-
UPC: 08416968397
-
Product Type: CR polymer coupling
-
Series / Family: QickSert CR
-
Connection Type: Barb x Barb
-
End Style: Barb
-
Size: 1/2 in x 1/2 in
-
Nominal Size: 1/2 in
-
Connection Method: Crimp
-
Material: CR polymer / Acudel
-
Material Specification: ASTM F877, ASTM F2159
-
Pressure Rating: 160 psi at 73°F (100 psi @ 180°F; 80 psi @ 200°F)
-
Maximum Operating Pressure: 160 psi
-
Temperature Rating: 200 °F (max referenced temperature in ratings)
-
Dimensions: 0.68 in OD x 1.5 in L
-
Length: 1.5 in
-
Outer Diameter: 0.68 in
-
Application: Hot and cold potable water systems, plumbing, radiant heating systems, PEX tubing connections
-
Standards / Certifications: NSF/ANSI 14; NSF/ANSI 61; ASTM F877; ASTM F2159; CSA B137.5
-
Lead Free: Yes
-
Weight: 0.006 POUND
-
Country of Origin: United States
