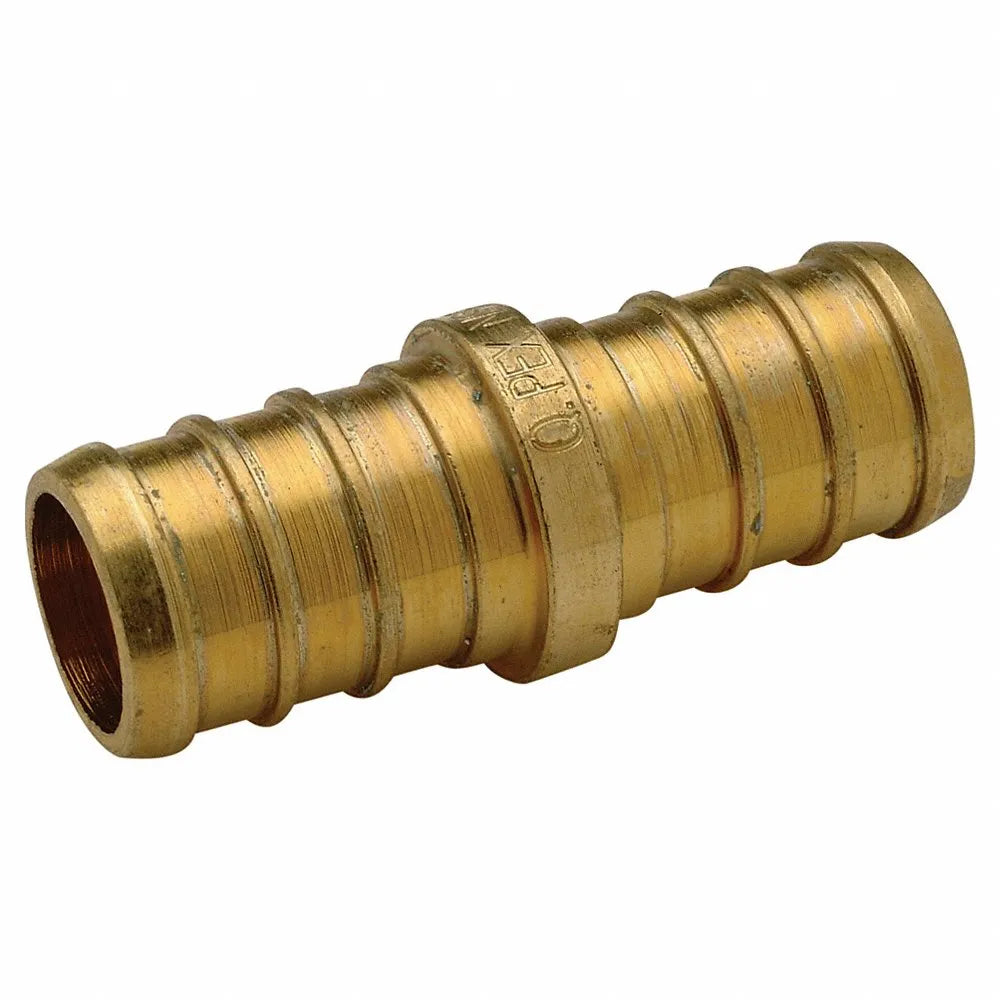

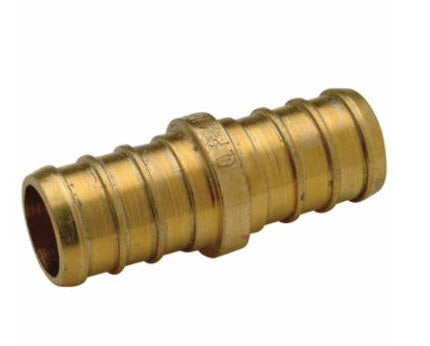

Zurn QQC64GX Coupling, Brass, Barbed X Barbed, 3/4 Inch Pipe Size, 1 1/2 Inch Overall Length (Pack of 10)

Product Description

The ZURN QQC64GX coupling is a brass, barbed x barbed fitting with a 3/4 inch pipe size and an overall length of 1 1/2 inches. It is suitable for use in hot and cold potable water distribution systems. This coupling is fast, easy, and safe to install.

• Brass construction
• Barbed X Barbed connection
• 3/4 Inch Pipe Size

Product Highlights

This Zurn brass coupling is a dependable insert and crimp fitting that is easy to install.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: QQC64GX
• Country of Origin: United States

Technical Specifications

• Brand: ZURN
• MPN: QQC64GX
• Material: Brass
• Type: Barbed Coupling
• Pipe Size: 3/4 Inch
• Overall Length: 1 1/2 Inch
• End Style: Barb
• Pressure: 160 psi
• Fitting Shape: Connector
• Material Grade: C69300
• Fitting Material: Brass
• Fitting Side B Pipe Size: 3/4 in
• End Connection Type: Barbed
• Specific Fitting Shape: Straight Connector
• Compatible Tube Material: Polyethylene
• Fitting Side B Connection Type: Barbed
• Maximum Operating Pressure: 160 psi
• Maximum Operating Temperature: 200 Degrees F
• Minimum Operating Temperature: 73 Degrees F
• Fitting Side A Connection Type: Barbed
• Temperature Range: 73 �F to 200 �F
• Connector Type: Coupling
• Application: Potable Water
• Barb Style: Standard
• For Tube ID: 24/25 in
• For Tube Inside Diameter: 24/25 in
• standard: ASTM F1807, ASTM F877, CSA B137.5, NSF/ANSI STANDARD 14, NSF/ANSI STANDARD 61 INCLUDING ANNEX G
• Connection Type: Barbed
• Fitting Type: Coupling
• Material Construction: Brass
