Product Description

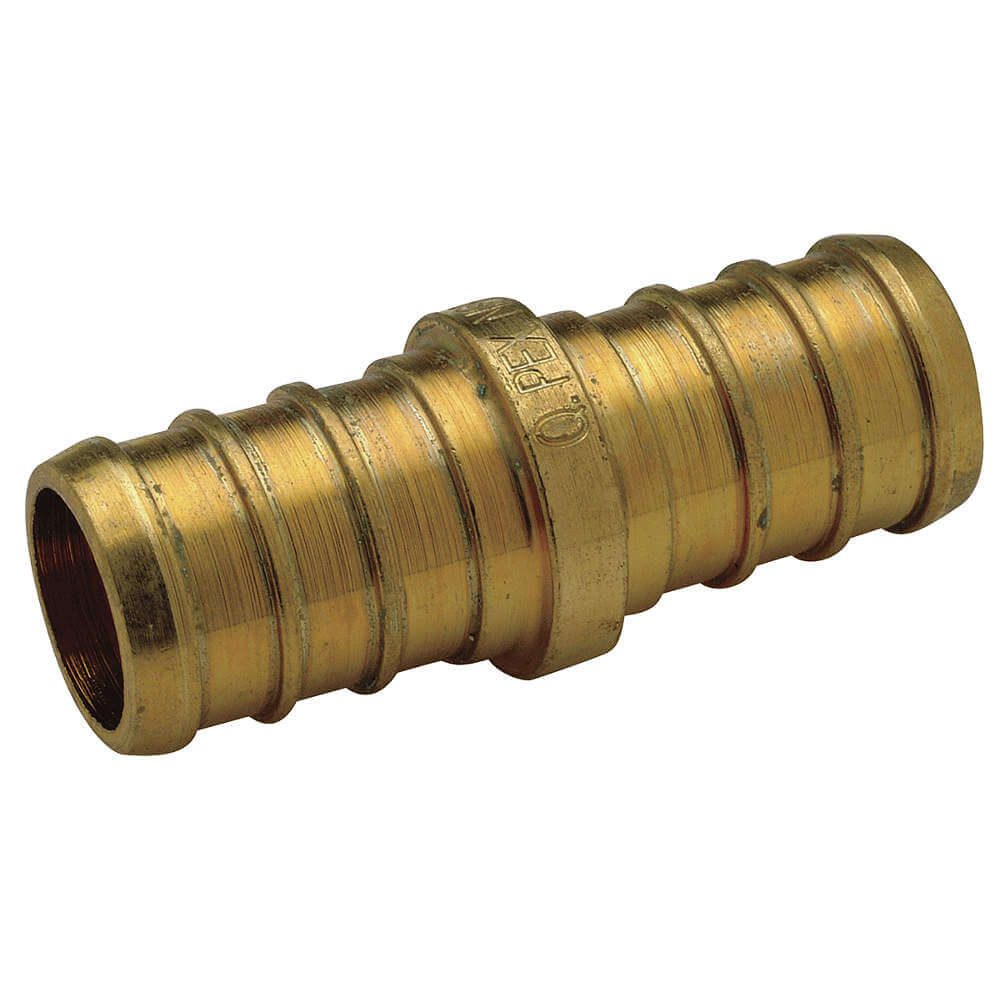

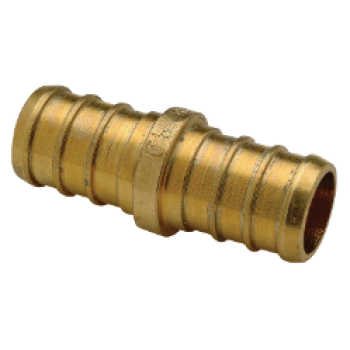

Zurn QQC44GX is a low-lead brass coupling designed to join 3/4-inch PEX tubing with a 3/4-inch barb x 3/4-inch LF connection. The straight barbed coupling measures approximately 1.38 inches overall and supports PEX crimp installation. It is rated to 160 psi at 73°F (with reduced ratings at higher temperatures) and has a maximum temperature rating of 200°F. The fitting meets ASTM, CSA, and NSF standards for potable water and radiant heating use.
- Low-lead brass construction (material grade C69300) with standard barbed PEX connections.
- Connection: 3/4 in barb x 3/4 in LF; overall length approximately 1.38 in; PEX crimp compatible.
- Pressure/temperature ratings: 160 PSI at 73°F; 100 PSI at 180°F; 80 PSI at 200°F; maximum temperature 200°F; meets ASTM F1807, ASTM F877, CSA B137.5, NSF/ANSI standards.
Product Highlights
Low-lead brass 3/4 in PEX barbed coupling, 1.38 in length, rated to 160 psi and 200°F; compliant with ASTM F1807/F877, CSA B137.5, and NSF/ANSI standards.
Product Information
Standard Information
-
Brand: ZURN
-
Manufacturer Part Number: QQC44GX
-
Country of Origin: China
Technical Specifications
-
Brand: Zurn
-
Manufacturer Part Number: QQC44GX
-
UPC: 08416901635
-
Series: QQC-GX
-
Material: Low-lead brass
-
Material Grade: C69300
-
Low-Lead: Yes
-
Fitting Type: Coupling (straight connector)
-
Connection Type: PEX barbed
-
End Connection: 3/4 in barb x 3/4 in LF
-
Connection Size: 3/4 in x 3/4 in
-
PEX Connection Method: Crimp
-
Barb Style: Standard
-
Overall Length: 1.38 in (1 3/8 in)
-
Pressure Rating: 160 PSI at 73°F; 100 PSI at 180°F; 80 PSI at 200°F
-
Max Operating Pressure: 160 psi
-
Temperature Rating: 200°F (maximum)
-
Temperature Range: 33 to 200°F
-
Applicable Standards: ASTM F1807; ASTM F877; CSA B137.5; NSF/ANSI 14; NSF/ANSI 372; NSF/ANSI 61
-
Application: PEX hot and cold water; plumbing; radiant heating; potable water
-
Resistance Properties: Corrosion resistant; Freeze damage resistant; Mineral buildup resistant; Rust resistant
-
Overall Description: Barbed coupling with 3/4 in tube inner diameters, approx. 1.38 in length, low-lead brass construction
-
Country of Origin: China
-
Weight: 0.05 lb
