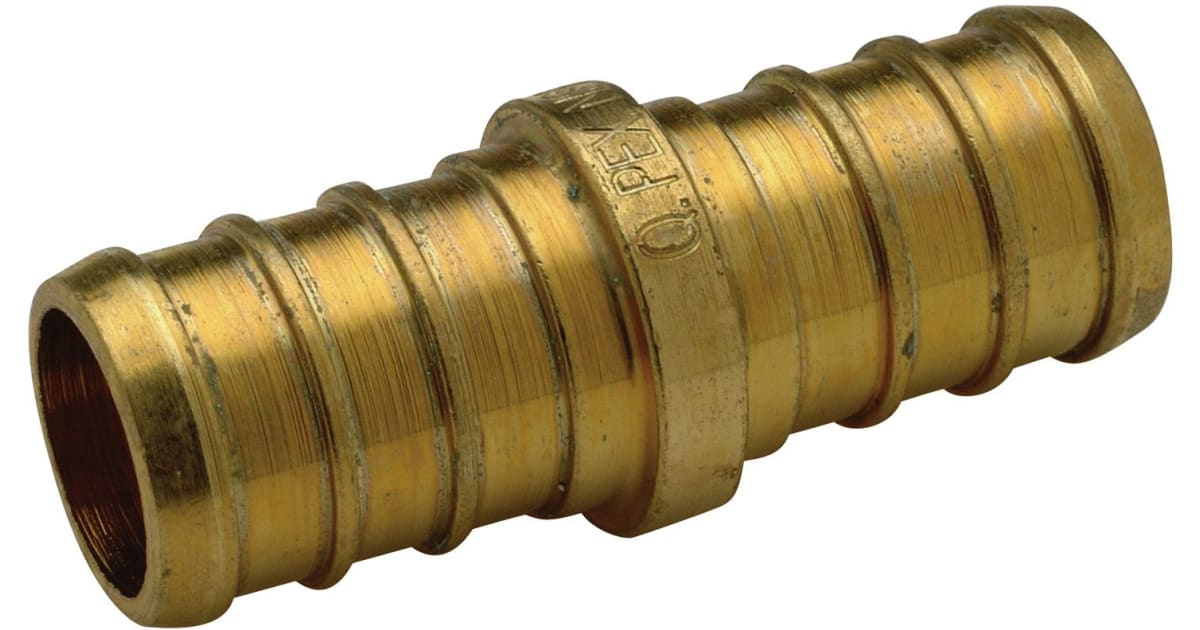

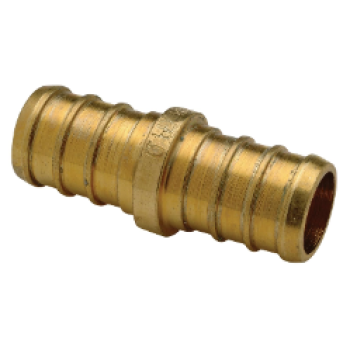

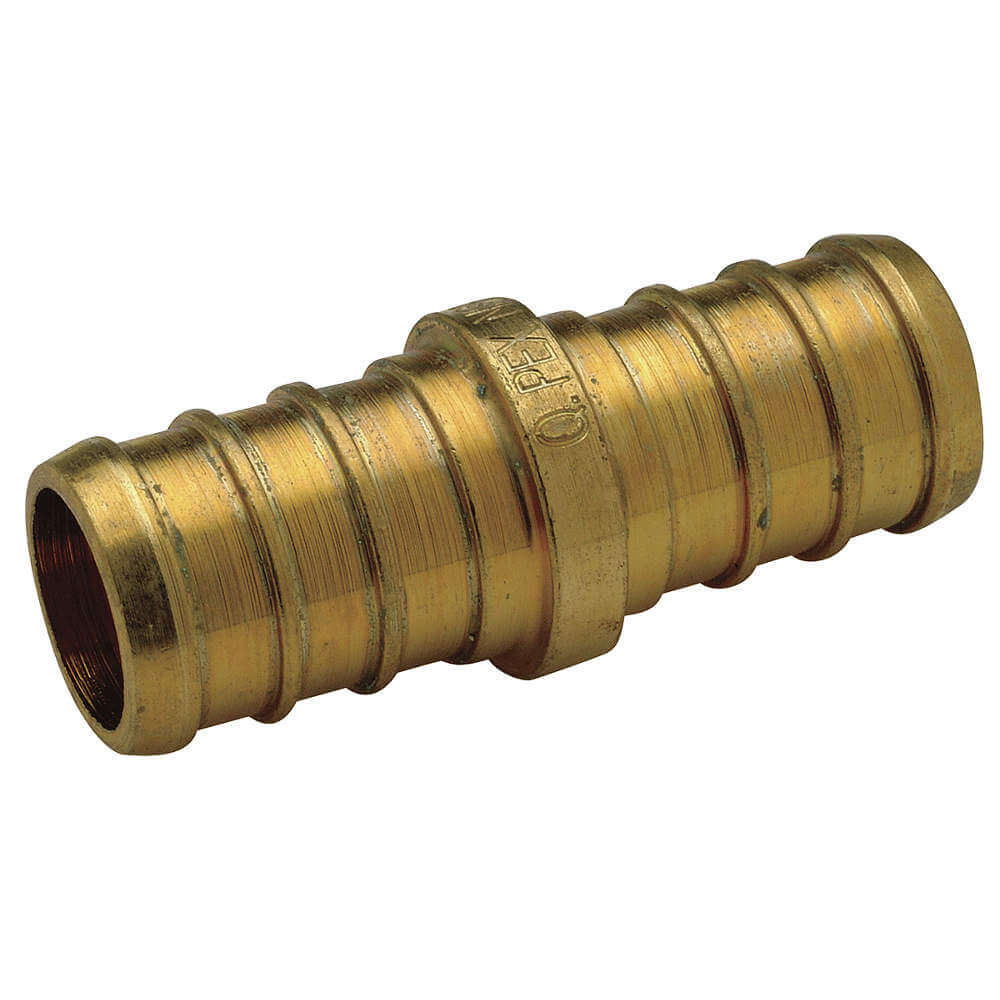

Zurn QQC33GX Xl Brass Coupling 1/2 Barb x 1/2 Barb

Product Description

The Zurn QQC33GX is an XL brass coupling for 1/2-inch barb PEX connections, intended for potable hot and cold water and radiant heating systems. The coupling is lead-free and manufactured to ASTM F877/F1807 material specifications, providing a 1.38 in length barbed connection that installs with a crimp method. It is rated for temperatures up to 200°F and pressure ratings up to 160 psi at 73°F.

• Lead-free brass construction; material meets ASTM F877/F1807
• 1/2 in barb x 1/2 in barb coupling for PEX with crimp installation; 1.38 in length
• Pressure and temperature ratings: 160 psi at 73°F; 100 psi at 180°F; 80 psi at 200°F; max temp 200°F; temperature range +33°F to +200°F

Product Highlights

1/2 in barbed lead-free brass coupling for PEX; crimp installation; rated to 160 psi and 200°F; compliant with ASTM, CSA and NSF standards.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: QQC33GX
• Country of Origin: China

Technical Specifications

• Brand: ZURN
• MPN: QQC33GX
• Product Type: Coupling fitting
• Fitting Type: Coupling (barbed)
• Material: Brass (low-lead / lead-free)
• Material Specification: ASTM F877; ASTM F1807
• Lead Free: Yes
• Connection Type: Barb x barb
• Size: 1/2 inch x 1/2 inch
• Installation Type: Crimp
• Dimensions (Length): 1.38 in
• Max Operating Pressure: 160 psi at 73°F
• Pressure Rating: 160 psi at 73°F; 100 psi at 180°F; 80 psi at 200°F
• Max Operating Temperature: 200°F
• Min Operating Temperature: 33°F
• Temperature Range: +33°F to +200°F
• Application: PEX hot and cold water, plumbing, radiant heating, potable water
• Applicable Standards: CSA B137.5; NSF/ANSI 14; NSF/ANSI 61; NSF/ANSI 372; ASTM F1807; ASTM F877
• NSF 61 Certified: Yes
• Country of Origin: China
• UPC: 08416901633
