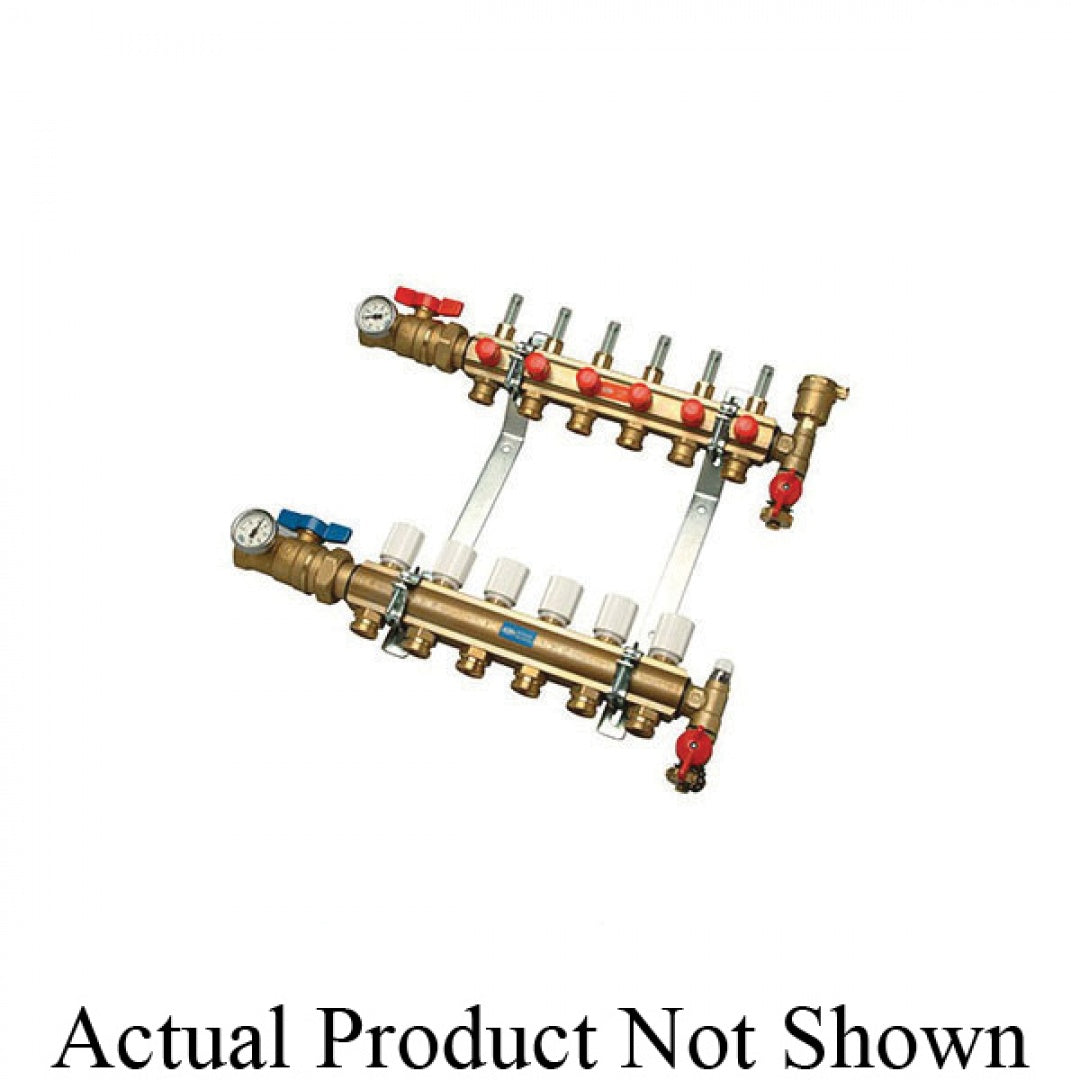

Zurn QHPM-5 5-Port Manifold, Inline Air Vent and Supply/Return Ball Valves

Product Description

The Zurn QHPM-5 is a preassembled five-port manifold designed for radiant heating systems. This product includes supply and return isolation ball valves along with automatic air vents. It features a one-inch inlet and operates under a pressure rating of 150 psi and a temperature rating of 230 degrees Fahrenheit. Unit dimensions are sixteen inches wide, five and seven-sixteenths inches deep, and seventeen and three-eighths inches high.

• Complete with supply and return isolation ball valves.
• Automatic air vents included.
• Ideal for use in radiant heating applications.

Product Highlights

This manifold is essential for efficient thermal distribution in heating systems.

Product Information

Standard Information

• Manufacturer: Zurn Industries, Inc
• UPC: 84169685735

Technical Specifications

• Dimensions: 16 inches wide x 5-7/16 inches deep x 17-3/8 inches high
• Inlet Size: 1 inch
• Material: Brass
• Number of Outlets: 5
• Pressure Rating: 150 psi
• Temperature Rating: 230 degrees Fahrenheit
• Type: Preassembled
