Zurn QER4X PEX F1960 Expansion Ring with Stop (3/4 Inch)

Product Description

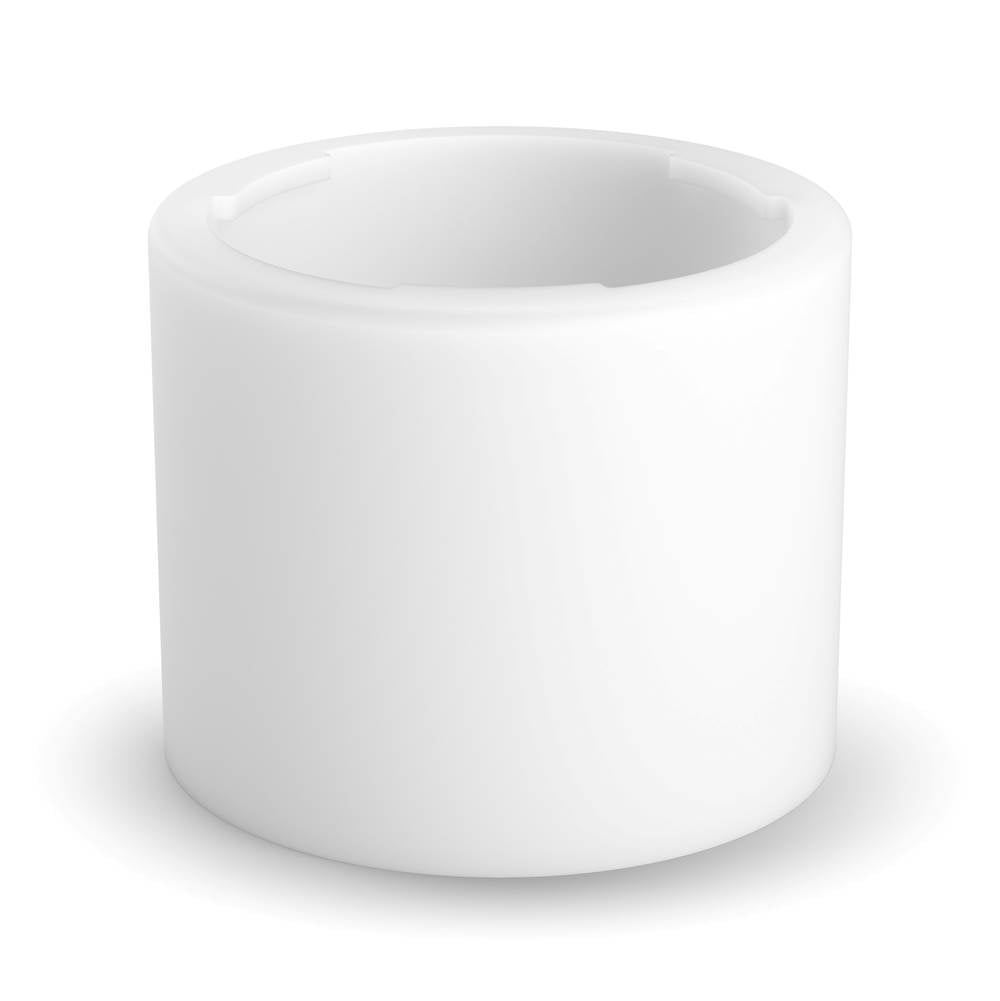

The Zurn QER4X is a 3/4-inch F1960 PEX expansion reinforcing ring with an integrated stop, used to position and reinforce expansion-style PEX fittings. The ring is molded from ASTM F1960 polyethylene and is intended for use with pipe fittings and non-barrier PEX tubing in potable water, plumbing, and radiant heating systems. Typical dimensions are 0.88 in ID x 1.13 in OD x 0.92 in width.

• 3/4 inch F1960 expansion-style reinforcing ring with integrated stop
• Molded from ASTM F1960 polyethylene; lead-free and meets ADA, ARCAT, NSF/ANSI 61/372 and CSA B137.5
• Overall dimensions: 0.88 in inner diameter x 1.13 in outer diameter x 0.92 in width

Product Highlights

3/4-inch F1960 expansion reinforcing ring for non-barrier PEX; molded polyethylene construction with integral positioning features; compliant with multiple potable water standards.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: QER4X
• Country of Origin: China

Technical Specifications

• Brand: Zurn
• MPN: QER4X
• Product Type: PEX expansion reinforcing ring
• End Style: F1960 (expansion)
• Nominal Size: 3/4 inch
• Material: ASTM F1960 polyethylene
• With Stop: Yes
• Inner Diameter: 0.88 inch
• Outer Diameter: 1.13 inch
• Width: 0.92 inch
• Dimensions: 0.88 in ID x 1.13 in OD x 0.92 in width
• Applications: Potable water systems; plumbing; radiant heating systems; used on pipe fittings and non-barrier PEX tubing
• Integral Features: Integral positioning tabs
• Pressure Rating: 160 PSI at 73°F; 100 PSI at 180°F; 80 PSI at 200°F
• Applicable Standards: ADA; ARCAT; NSF/ANSI 61/372; CSA B137.5
• Lead-Free: Yes
• Unit Of Measure: Each
• UPC: 8416911729
• Country of Origin: China
• Fitting/Connector Type: Reinforcing ring
