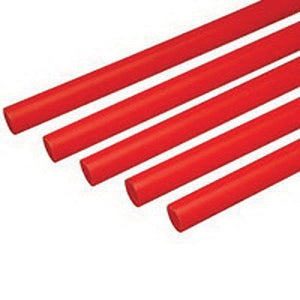

Zurn Q3PS20XRED Non-Barrier PEX Tubing Straight 1/2 x 20 ft

Product Description

Zurn Q3PS20XRED is a non-barrier cross-linked polyethylene (PEX) straight-length tubing with a 1/2 in CTS nominal size and 20 ft length for hot and cold potable water applications. The tubing meets ASTM F876/F877 material specifications, is lead-free and NSF certified, and is compatible with ASTM F1807 crimp and F1960 expansion fittings. Pressure ratings vary with temperature up to 200°F.

• Nominal size: 1/2 in CTS; outside diameter 0.625 in; inside diameter 0.475 in; wall thickness 0.062 in; length 20 ft (6.1 m).
• Material and standards: cross-linked polyethylene (PEX) non-barrier; meets ASTM F876/F877; NSF/ANSI/CAN 61 and NSF/ANSI 14 certified; compatible with ASTM F1807 and F1960 fittings; lead-free.
• Performance: pressure ratings — 160 psi at 73°F; 130 psi at 120°F; 100 psi at 180°F; 80 psi at 200°F; average fluid capacity 0.0092 gallon per foot.

Product Highlights

1/2 in CTS non-barrier PEX, 20 ft straight length for potable hot and cold water; ASTM/NSF certified; compatible with crimp and expansion fittings.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Q3PS20XRED
• Country of Origin: USA

Technical Specifications

• Brand: Zurn
• MPN: Q3PS20XRED
• Model: Q3PS20XRED
• Type: Non-barrier PEX tubing (straight length)
• Material: Cross-linked polyethylene (PEX)
• Material Specification: ASTM F876/F877
• Nominal Size: 1/2 in CTS
• Outside Diameter: 0.625 in (5/8 in)
• Inside Diameter: 0.475 in
• Wall Thickness: 0.062 in
• Length: 20 ft (6.1 m)
• End Connection: Plain PEX tube (compatible with crimp/expansion fittings)
• Pressure Rating: 160 psi at 73°F; 130 psi at 120°F; 100 psi at 180°F; 80 psi at 200°F
• Operating Temperature: Up to 200 °F
• Average Fluid Capacity: 0.0092 gallon per foot
• Applications: Potable hot and cold water; radiant heating; underground fluid distribution; water distribution to manifolds; hydronic coils
• Compatibility: ASTM F1807 crimp and F1960 expansion fittings
• Certifications and Standards: NSF/ANSI/CAN 61; NSF/ANSI 14; ASTM E84; CSA B137.5; AWWA C904; ICC-ES; UPC; CAN/ULC S102.2
• Lead-Free: Yes
• UPC: 08416966614
• Product Form: Straight length
