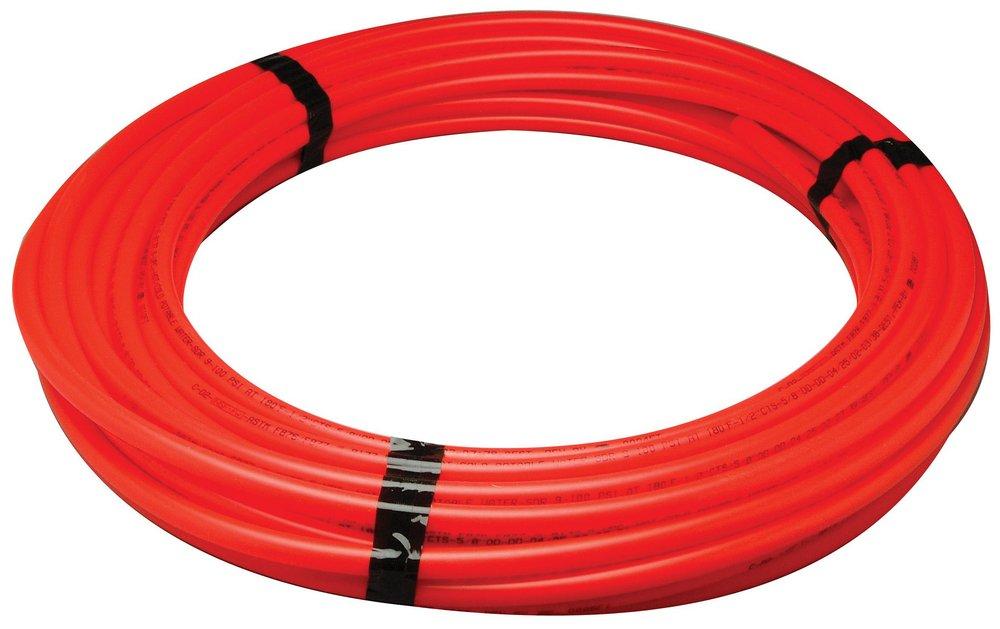

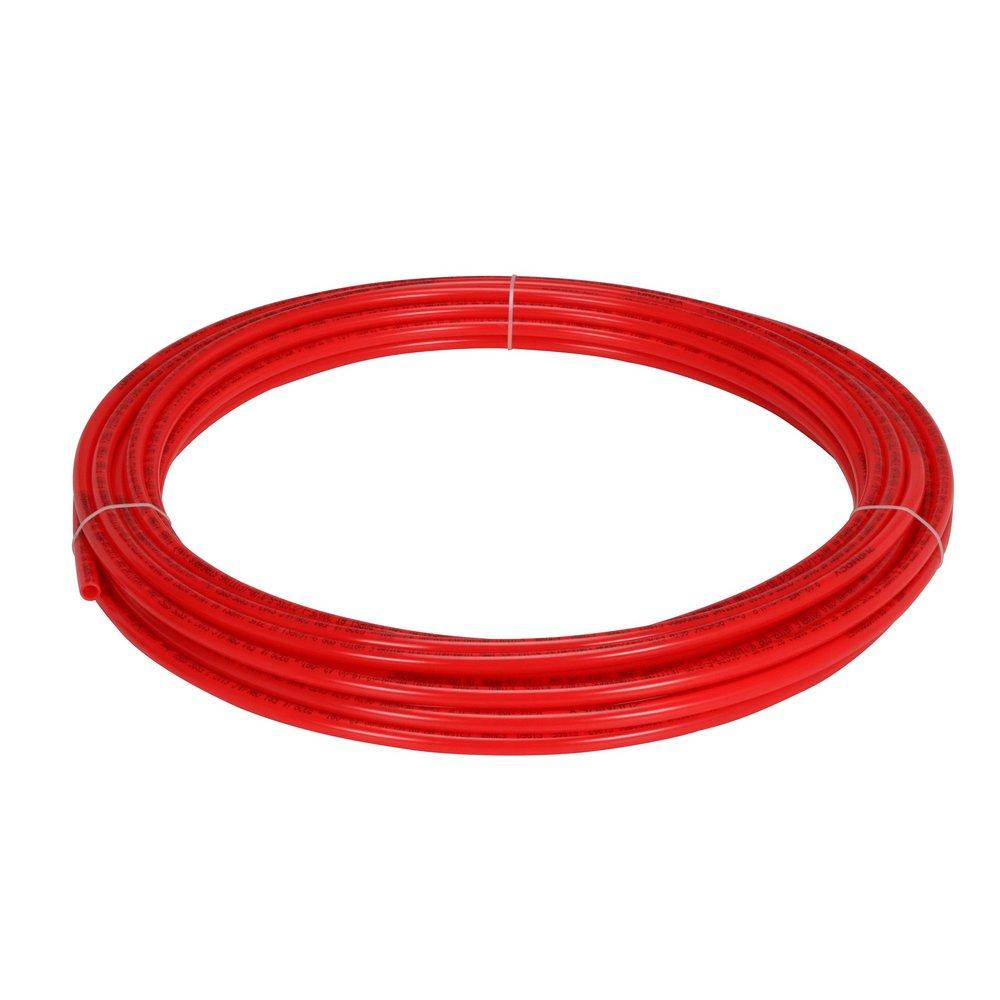

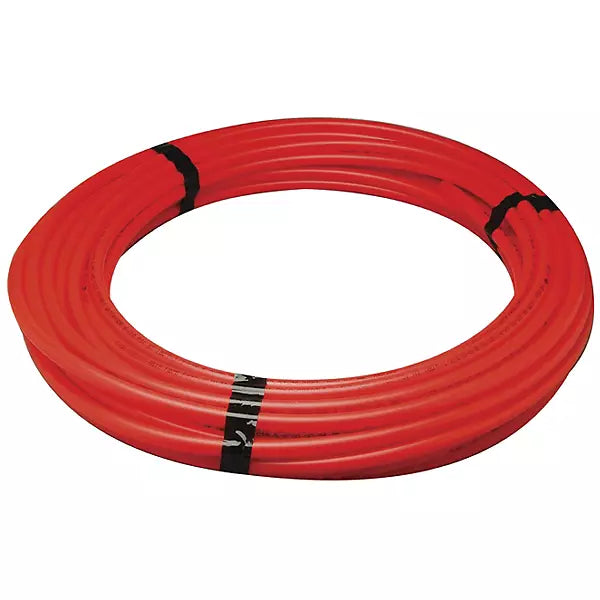

Zurn Pex Q3PC100XRED 1/2 x 100 ft. CTS PEX Tubing Coil

Product Description

The ZURN PEX Q3PC100XRED is a 1/2 x 100 ft. CTS PEX tubing coil designed for hot and cold water applications. It offers corrosion resistance to prevent mineral buildup and extends system life. This PEX tubing is freeze-resistant and NSF 61 certified. It is constructed from non-toxic, BPA and lead-free materials.

• Corrosion resistance eliminates mineral buildup
• Pressure rating of up to 80 PSI at 200 degrees Fahrenheit
• High-temp and freeze-resistant

Product Highlights

Durable PEX tubing for potable water distribution with corrosion and freeze resistance. Easy to install with fewer fittings and a 25-year limited warranty.

Product Information

Standard Information

• Brand: ZURN PEX
• Manufacturer Part Number: Q3PC100XRED
• Country of Origin: Domestic

Technical Specifications

• Material: PEX
• Nominal Size: 1/2 inch
• Length: 100 ft
• Temperature Rating: 73 to 200 Deg F
• Pressure Rating: 80 to 160 psi
• Type: Coil
• ANSI: ANSI 14, ANSI 61
• ASTM: ASTM E84, ASTM F876/F877, ASTM F1807, ASTM F1865, ASTM F1960, ASTM F2098, ASTM F2159
• AWWA: AWWA C-904
• Application: Fire Systems, Potable Water, Water Supply
• Diameter - Inside 1: 19/40 in
• Diameter - Outside: 5/8 in
• End Connection 1: Plain End
• End Connection 2: Plain End
• End Connections: Plain End
• Fire Suppression System Rated: Yes
• GSA Approved: No
• IAPMO Listed: No
• Maximum Temperature: 200
• NSF: NSF 14, NSF 61
• NSF Certified: Yes
• Origin: Domestic
• PipeTubing Size: 1/2 in
• Pressure - Maximum: 160 psi
• UL Listed: UL 1821
• UPC: 084169666154
• Wall Thickness: 0.062 in
