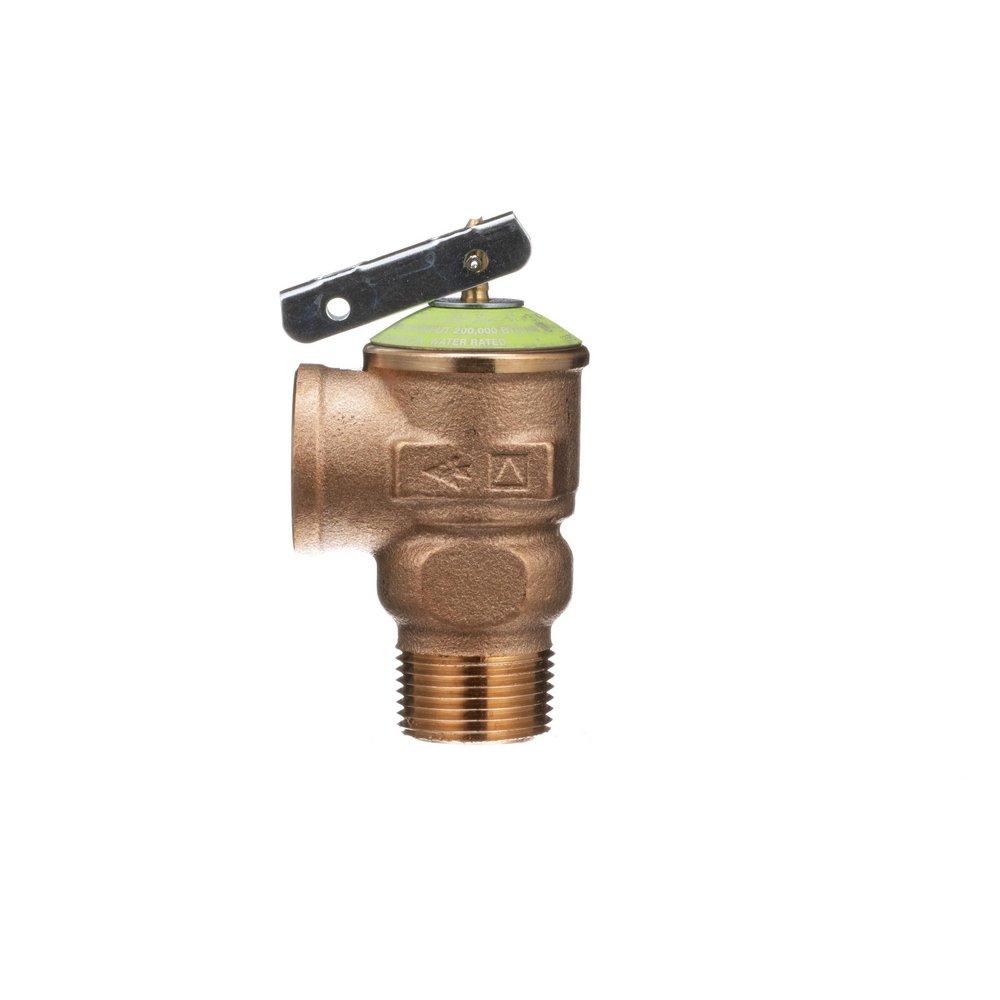

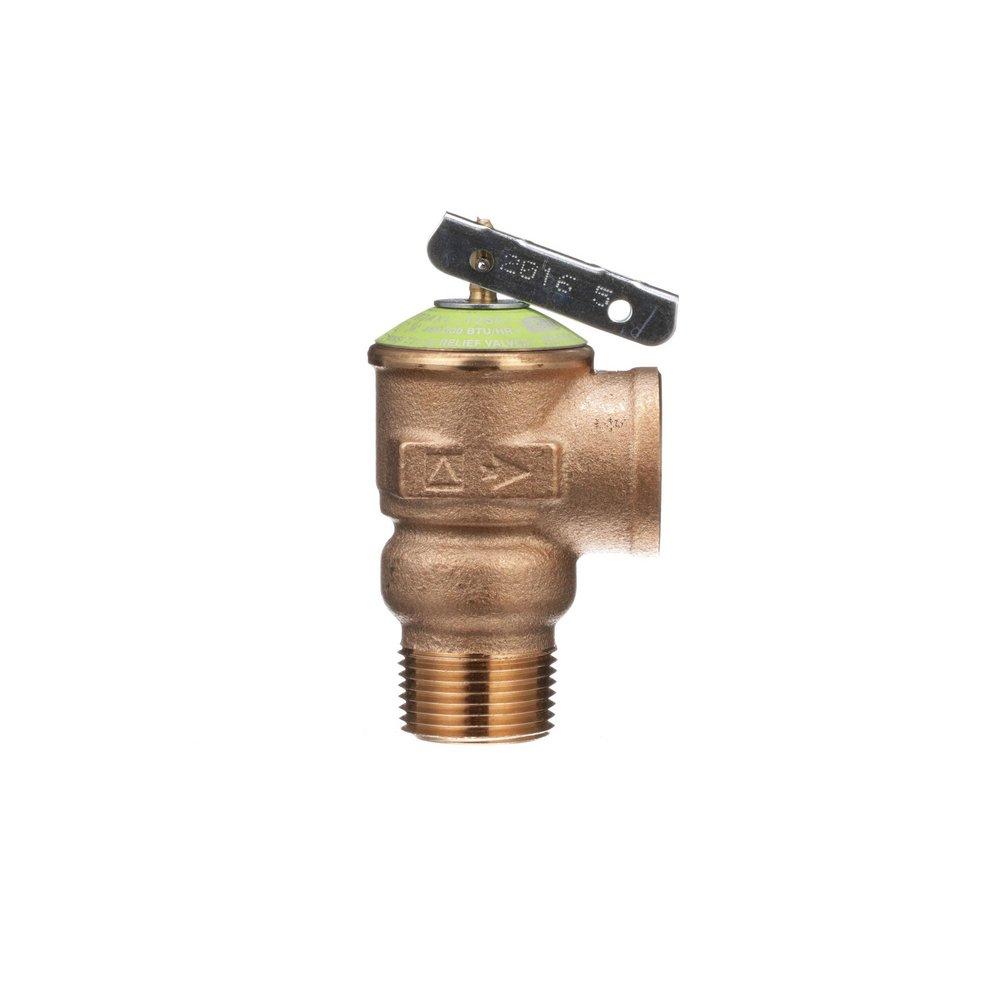

Zurn P1000AXL 3/4 in. Cast Brass-Bronze-Stainless Steel-Silicone MNPT x FNPT 125# Relief Valve

Product Description

The Zurn P1000AXL-125C is a pressure relief valve designed for use on water heating storage vessels. This valve prevents over-temperature and excessive pressure, protecting your system. Constructed from cast brass and bronze, it includes stainless steel internals and is epoxy-coated for corrosion resistance.

• Pressure relief valve set at 125 psi
• CSA compliant to ANSI Z21.22/CSA 4.4
• Certified to ASME Section IV by the National Board

Product Highlights

This valve features multiple pressure settings, offering versatility for various applications, including residential and commercial use.

Product Information

Standard Information

• Brand: Zurn Wilkins
• Part Number: P1000AXL-125C

Technical Specifications

• Size: 3/4 inches
• Maximum Working Water Pressure: 125 psi
• Maximum Working Water Temperature: 250 degrees Fahrenheit
• Connection Type: MNPT x FNPT
• Weight: 0.54 lbs
• Material: Bronze, Cast Brass
• Valve Style: Angle Body
• Mounting Type: Vertical
