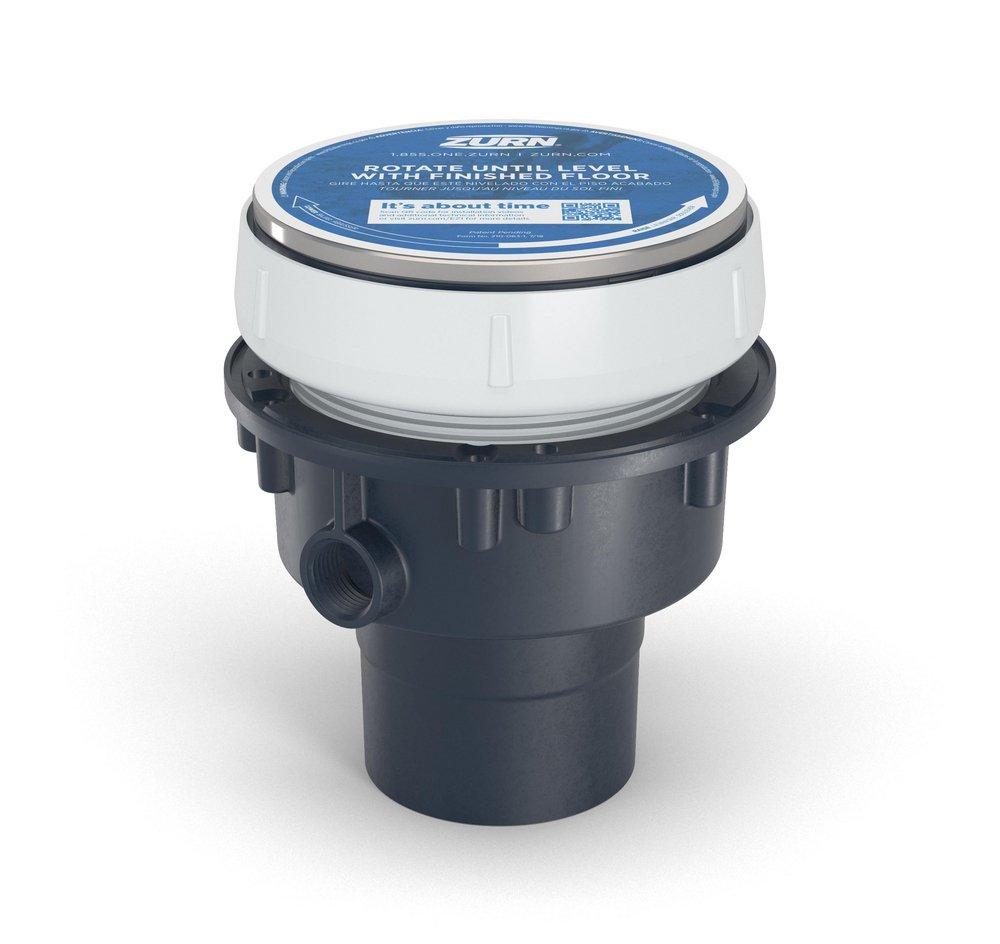

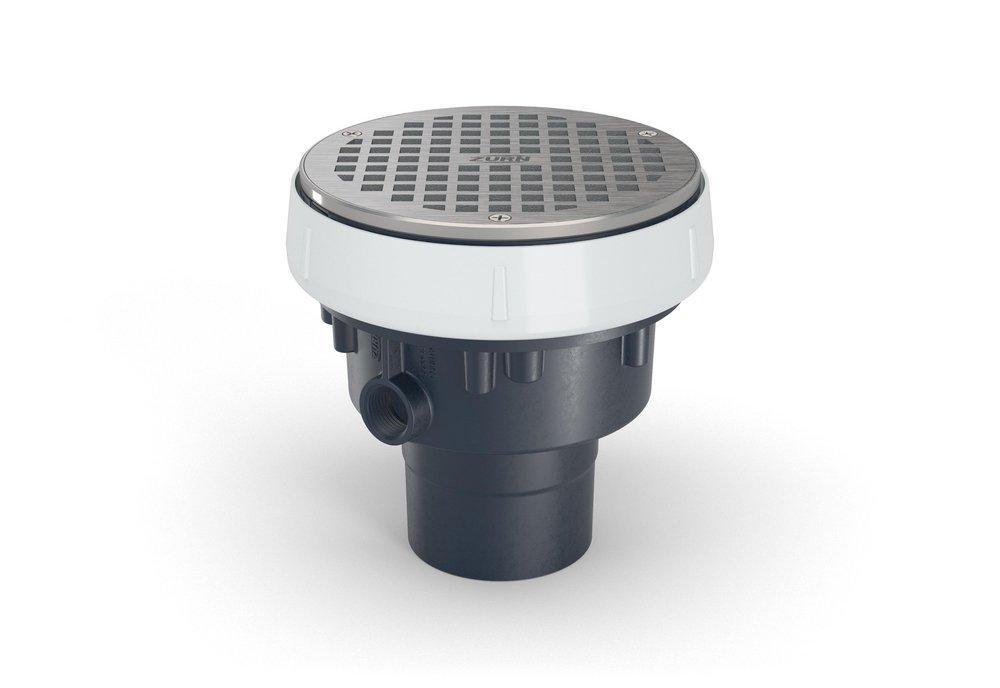

Zurn EZ-PV2-R6 EZ PVC Slab On Grade Floor Drain with 6 in. Nickel Bronze Head

Product Description

The Zurn EZ-PV2-R6 is a solvent weld PVC slab on grade floor drain with a six-inch nickel bronze head. This drain is engineered for efficient installation, saving time and effort for contractors. The intuitive design allows for adjustments after concrete is poured, enabling quick corrections to ensure the proper slope is achieved. The drain features an optional ZShield barrier to minimize odors and prevent insects from entering the drain system. The six-inch strainer connects to a two-inch by three-inch bottom outlet and meets industry standards for both commercial and residential applications.

• Reduces installation time by 14 minutes
• Durable construction suitable for high-traffic areas
• Includes a protective grate sticker during installation

Product Highlights

Durable and designed for new construction or retrofit applications, the Zurn EZ-PV2-R6 is ideal for tough environments and can handle heavy traffic loads.

Product Information

Standard Information

• Brand: Zurn
• MPN: EZ-PV2-R6

Technical Specifications

• Width: 6.8 inches
• Height: 7 inches
• Length: 6.8 inches
• Material: Nickel Bronze; PVC
• Connection Type: Solvent Weld
• Load Capacity: 3000 lbs
• Approval Standards: ASEE, ICC, IAPMO
