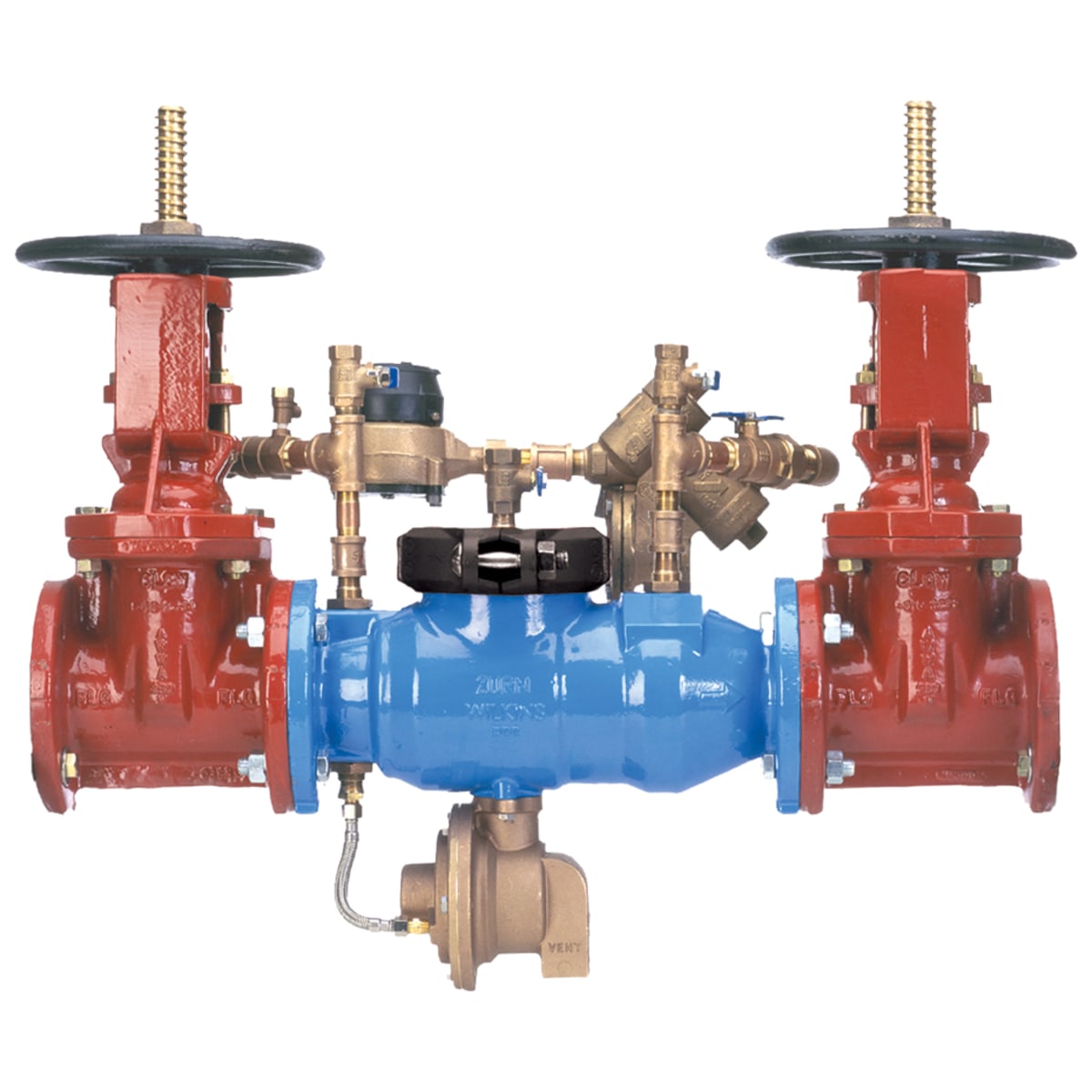

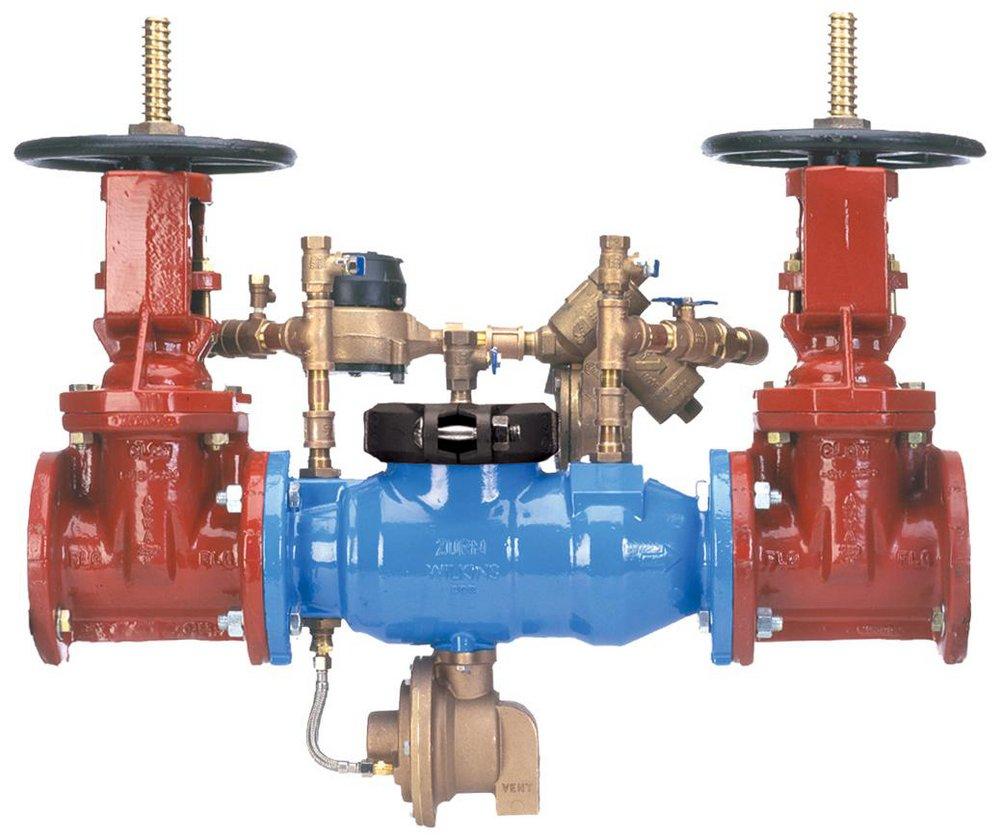

Zurn 6-375DA 375DA 6 in. Epoxy Coated Ductile Iron Flanged 175 psi Backflow Preventer

Product Description

The Zurn 6-375DA is a 6-inch epoxy coated ductile iron flanged backflow preventer designed for high-pressure applications. This device protects against backsiphonage and backpressure from contaminated water, making it suitable for use in critical fire protection systems. It includes a metered bypass that detects leaks and unauthorized water use, ensuring efficient operation.

• Relief valves and checks provide easy access for maintenance
• Constructed from corrosion-resistant epoxy coated ductile iron
• Rated for a maximum working pressure of 175 psi

Product Highlights

The Zurn 6-375DA offers reliable protection against water contamination, reducing potential costs associated with leaks and unauthorized water use.

Product Information

Standard Information

• Brand: Zurn Wilkins
• Model: 6-375DA

Technical Specifications

• Type: Reduced Pressure Principle Backflow Preventer
• Size: 6 inches
• Connection Size: 6 x 6 inches
• Connection Type: Flanged x Flanged
• Material: Ductile Iron
• Weight: 565.715 lbs
• Maximum Working Water Pressure: 175 psi
• Maximum Working Water Temperature: 140 deg F
• Mounting Type: Vertical, Horizontal
• Finish Color: Blue, Red
