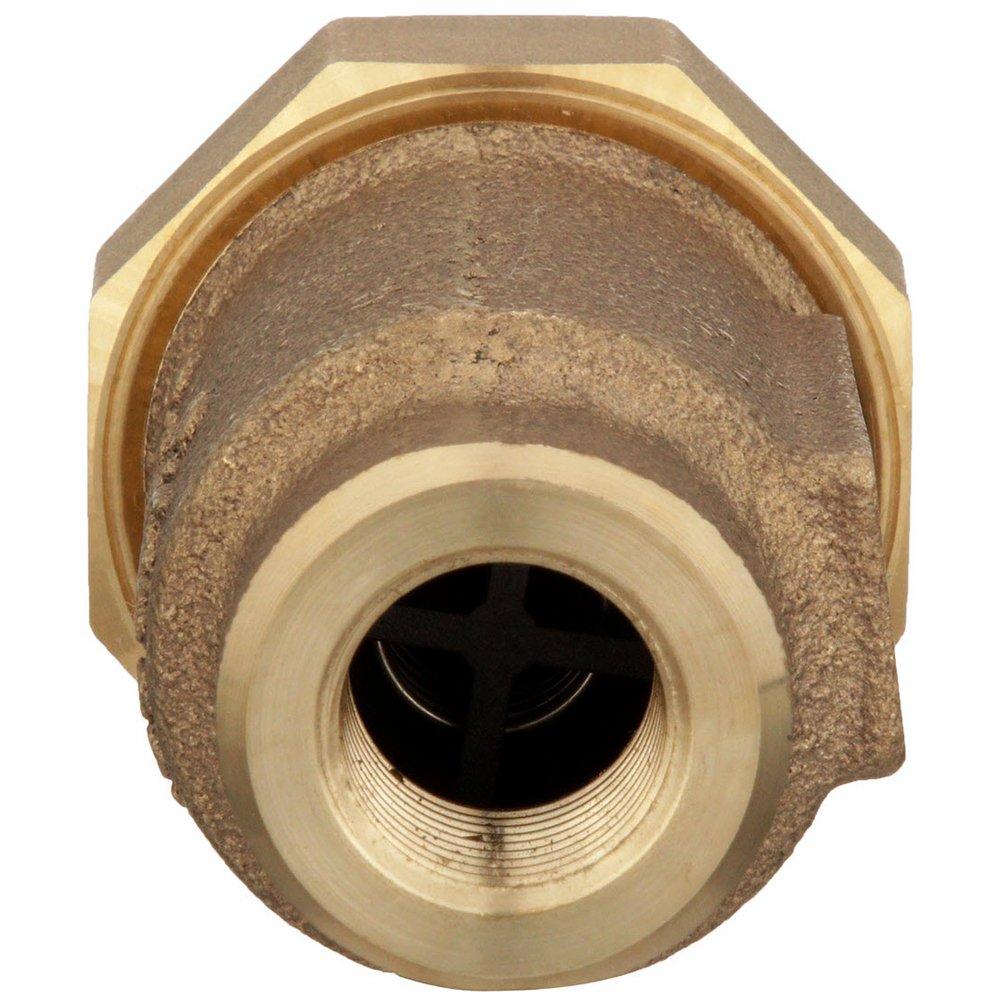

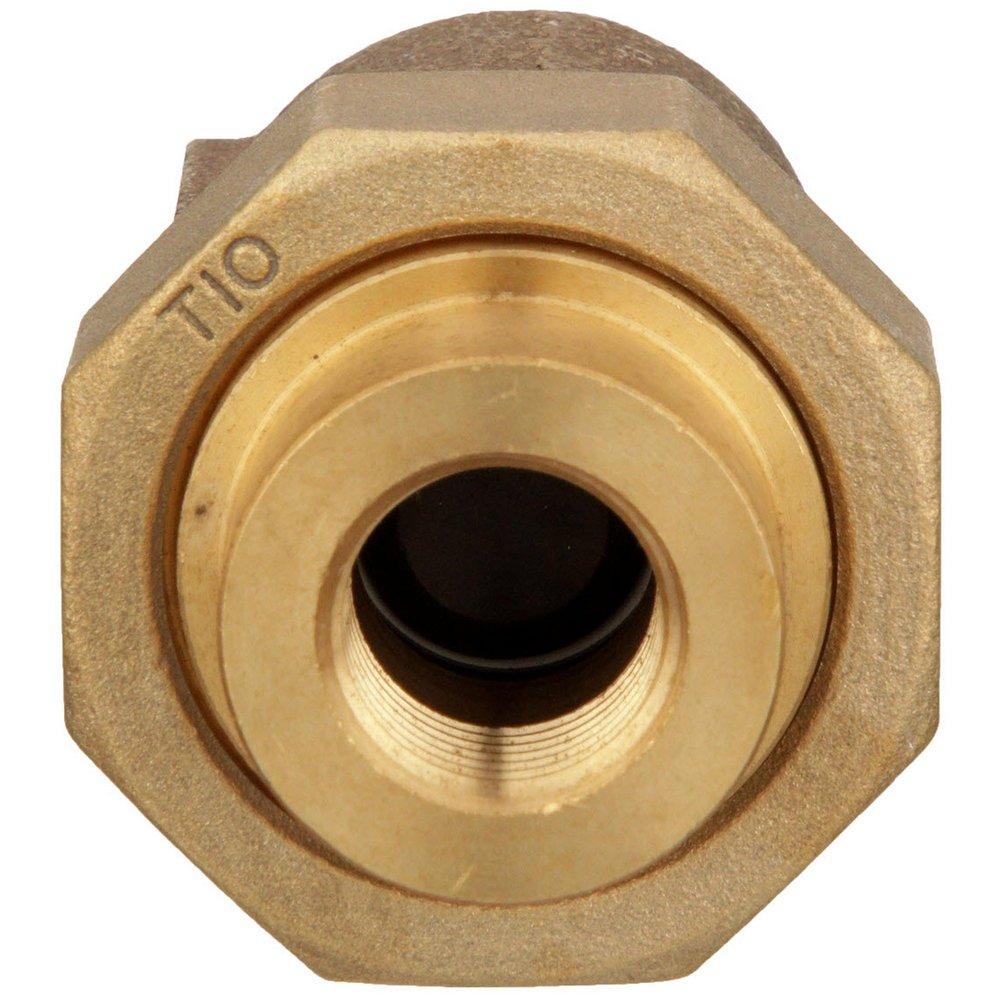

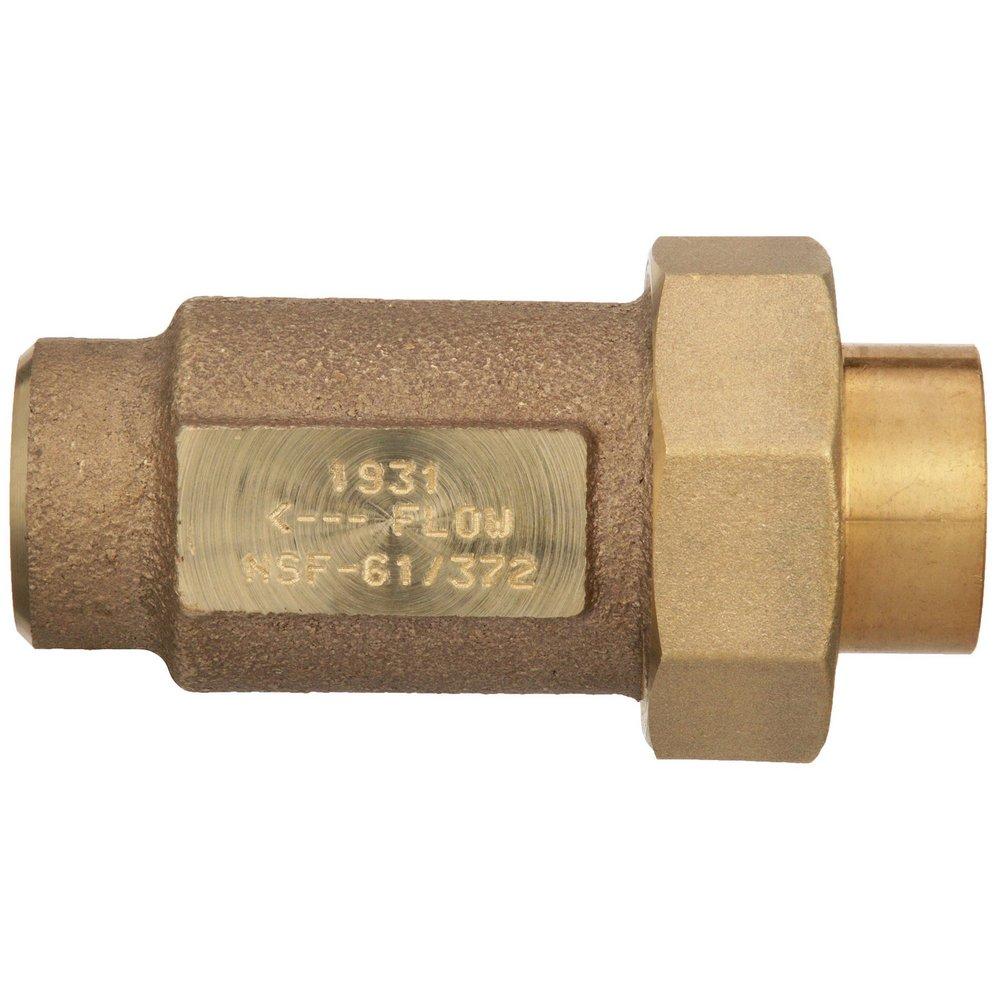

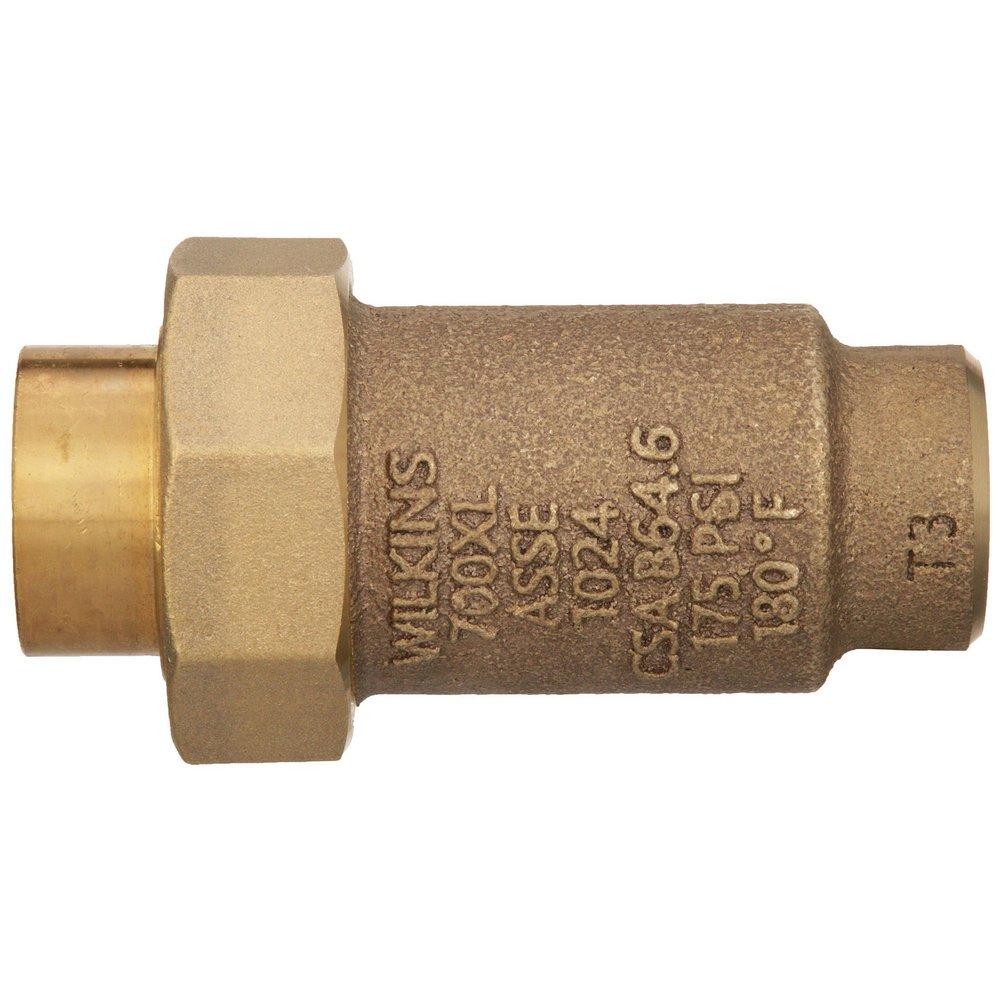

Zurn 38UFX38F-700XL Model 700XL 3/8 in. FNPT Dual Check Valve

Product Description

The Zurn 38UFX38F-700XL Model 700XL is a 3/8 inch FNPT dual check valve designed for low hazard applications on potable water lines. It protects against backsiphonage and backpressure of polluted water. This non-testable device can be installed either horizontally or vertically, provided it remains above water. The valve meets ASSE and CSA standards.

• Quality stainless steel springs and low-lead bronze body
• Built for easy installation with union inlet and outlet connections
• Ideal for both residential and commercial plumbing use

Product Highlights

The 700XL valve is lead-free, certified, and built to resist corrosion. It also offers several configuration options, reducing installation time and costs.

Product Information

Standard Information

• Brand: Zurn Wilkins
• MPN: 38UFX38F-700XL

Technical Specifications

• Type: Dual Check Valve
• Application: Plumbing
• Connection Size: 3/8 x 3/8
• Connection Type: FNPT x FNPT
• Material: Bronze
• Weight: 0.876 lbs
• Height: 2.1 inches
• Width: 2.3 inches
• Length: 4.1 inches
• Maximum Working Water Pressure: 175 psi
• Maximum Working Water Temperature: 140 deg F
• ASSE Standard: ASSE 1024
• Mounting Type: Vertical, Horizontal
