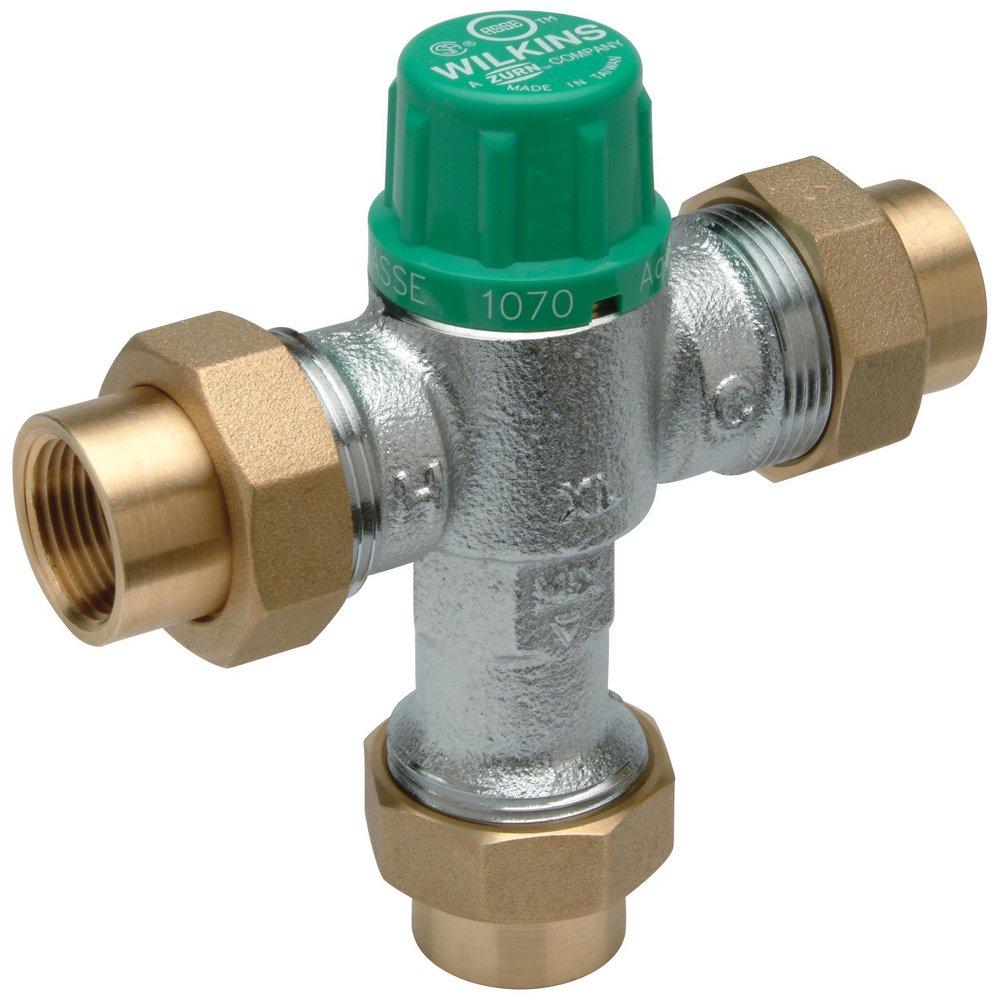

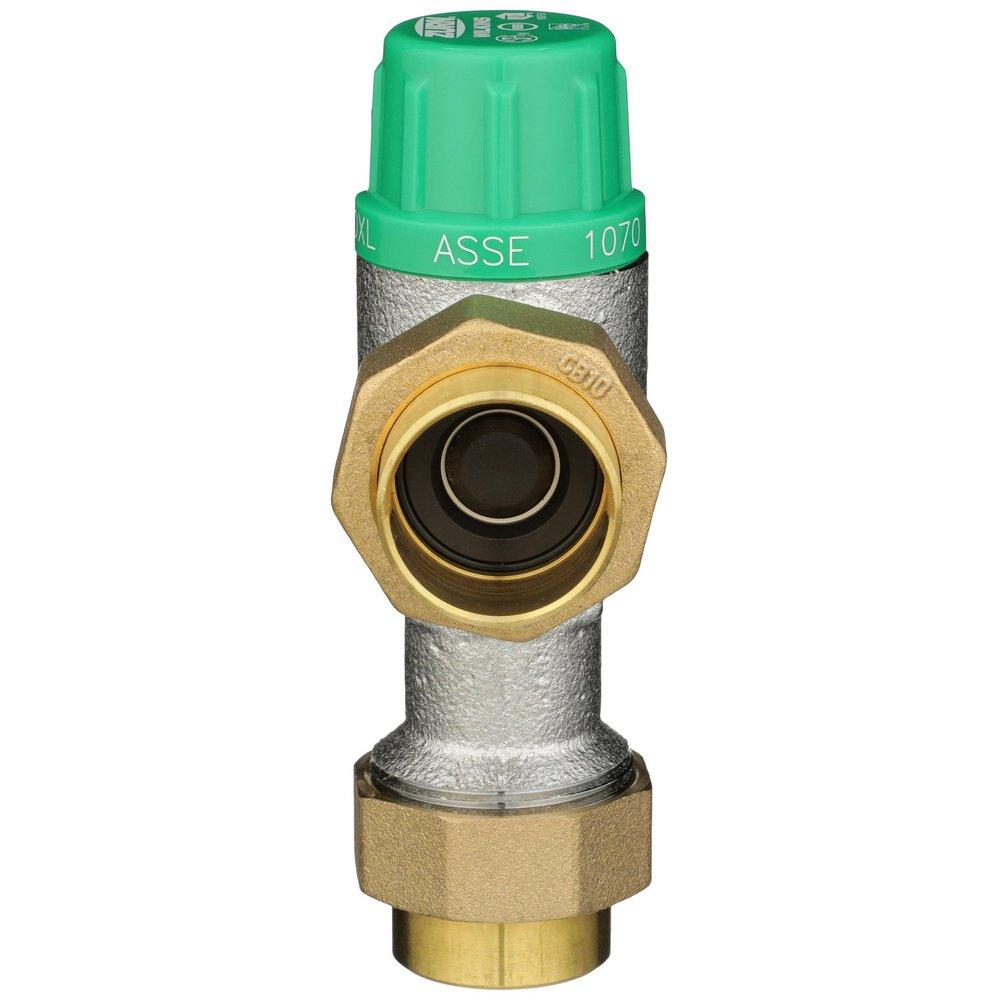

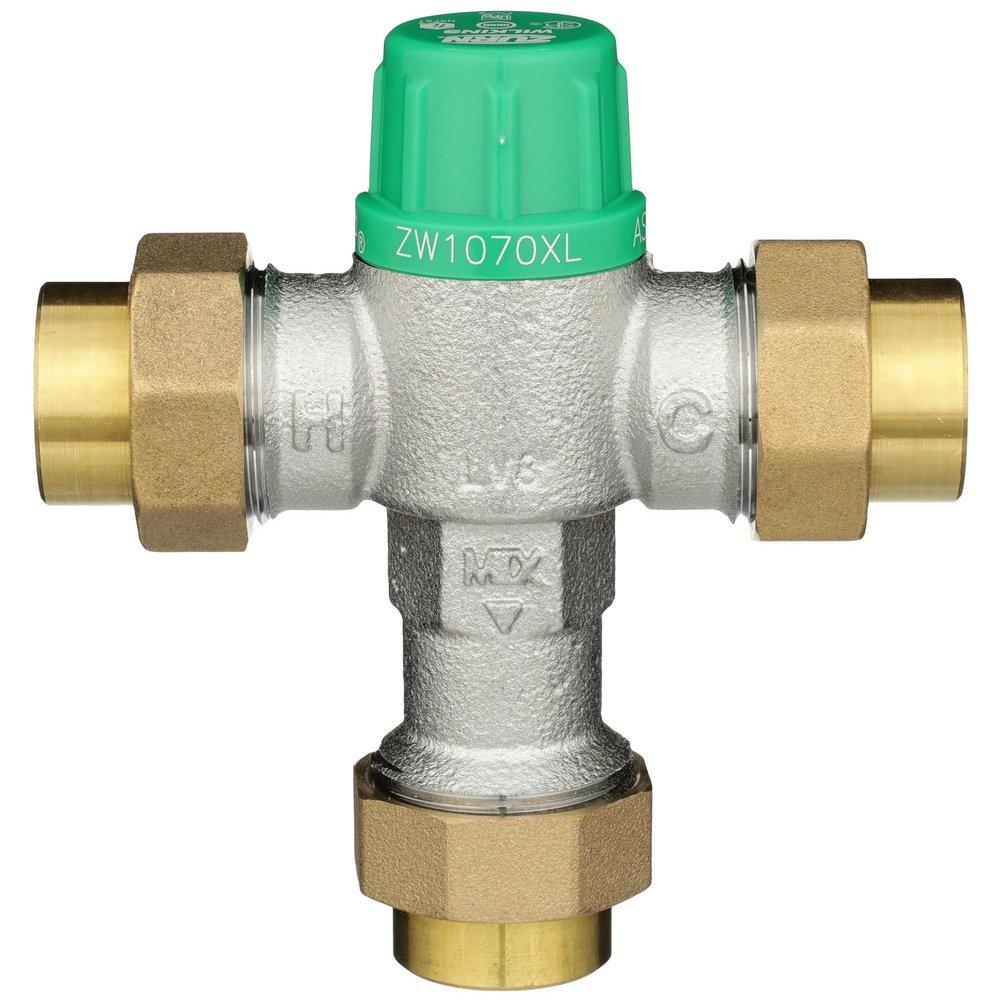

Zurn 34-ZW1070XL Aqua-Gard 3/4 in. FNPT Mixing Valve

Product Description

The Zurn 34-ZW1070XL Aqua-Gard mixing valve is a thermostatic mixing valve designed for use in residential and commercial applications. This valve helps prevent scalding by regulating the water temperature between ninety-five to one hundred fifteen degrees Fahrenheit. It can be installed at the point of use, making it ideal for sinks, lavatories, and bathtubs.

• Size: three-fourths inches FNPT connection
• Low-lead compliant, ensuring safety in drinking water systems
• Meets ANSI standards for performance and safety

Product Highlights

This mixing valve lowers the risk of scalding injuries while providing energy efficiency. It is suitable for various fixtures and is often required by building codes.

Product Information

Standard Information

• Brand: Zurn
• MPN: 34-ZW1070XL

Technical Specifications

• Material: Low Lead Cast Bronze
• Connection Size: three-fourths x three-fourths inches
• Maximum Working Pressure: one hundred forty-five psi
• Minimum Flow Rate: zero point five GPM
• ASSE Standard: 1070
• Application: Residential, Commercial
• Temperature Range: ninety-five to one hundred fifteen degrees Fahrenheit
• Mounting Type: Vertical, Horizontal
