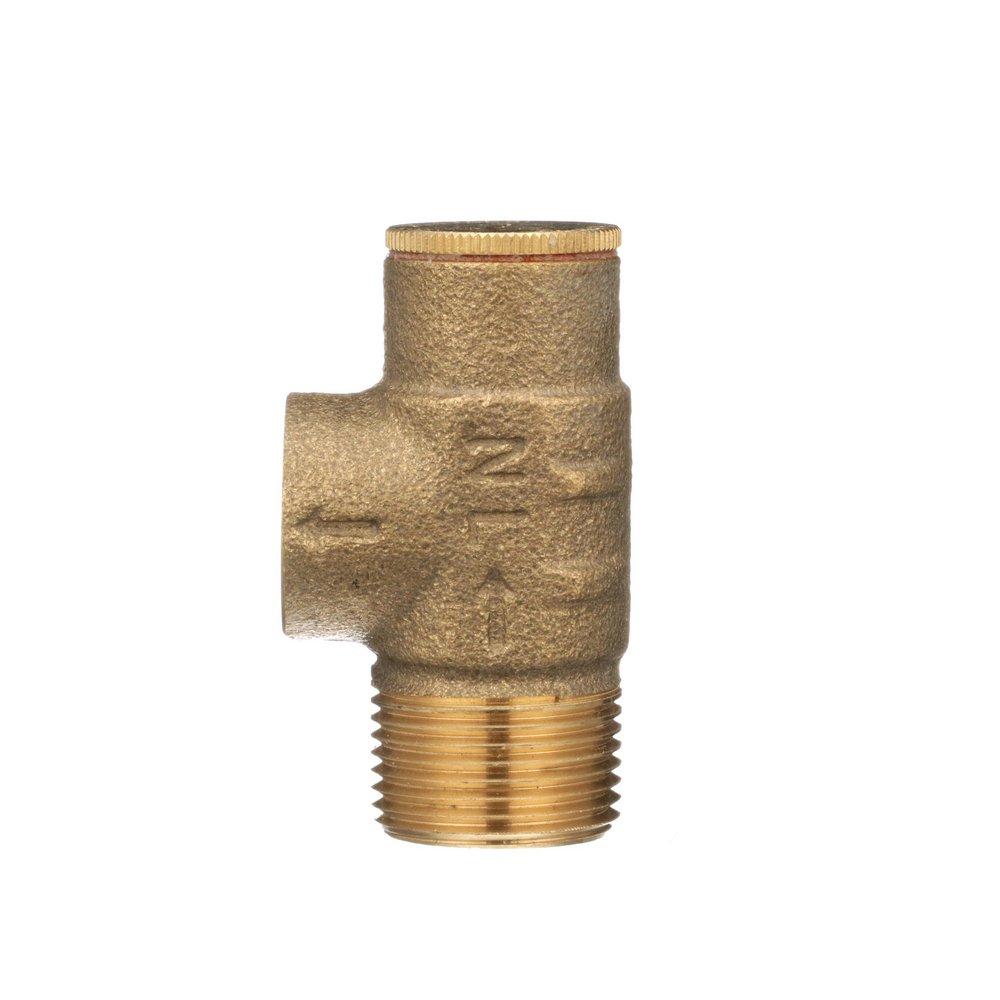

Zurn 34-P1550XL-125 P1550XL 3/4 in. Pressure Relief Valve 125#

Product Description

The Zurn P1550XL 3/4 in. Pressure Relief Valve, MPN 34-P1550XL-125, prevents excessive pressure buildup in cold water service lines. This valve is designed for pressure applications and works well with other temperature-limiting devices. The valve is preset to relieve pressure at one hundred twenty-five psi and includes male NPT inlet and female NPT outlet connections for straightforward installation.

• Fixed pressure relief setting at 125 psi.
• Low lead cast bronze construction for durability.
• Versatile for various commercial and industrial applications.

Product Highlights

This valve ensures the protection of water systems from high pressure, making it suitable for static relief, low capacity pump relief, and passive solar applications.

Product Information

Standard Information

• Brand: Zurn Wilkins
• MPN: 34-P1550XL-125

Technical Specifications

• Size: 3/4 inches
• Type: Pressure Relief Valve
• Weight: 0.5 lbs
• Material: Low Lead Cast Bronze
• Length: 2.32 inches
• Height: 0.88 inches
• Width: 0.88 inches
• Application: Commercial
• Connection Type: MNPT x FNPT
• Maximum Working Water Pressure: 175 psi
• Maximum Working Water Temperature: 210 degrees F
• Valve Style: Angle Body
• Mounting Type: Vertical
