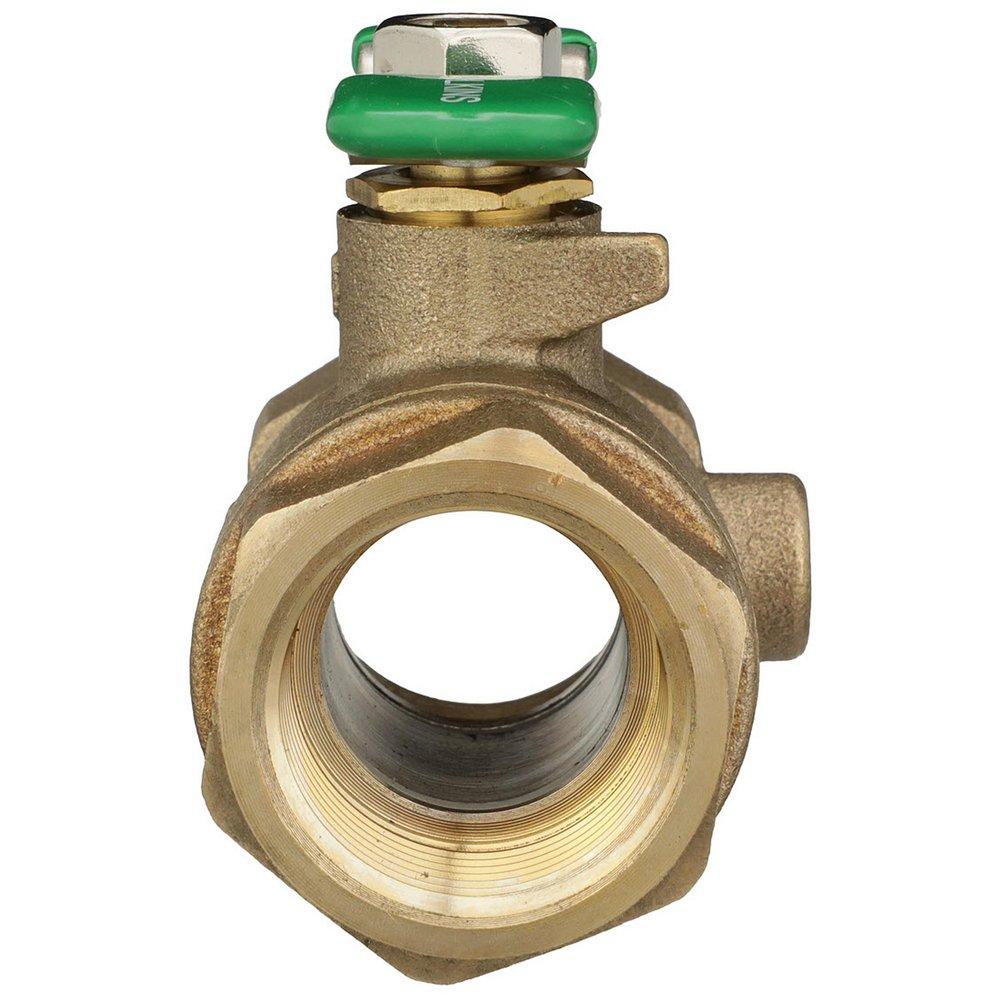

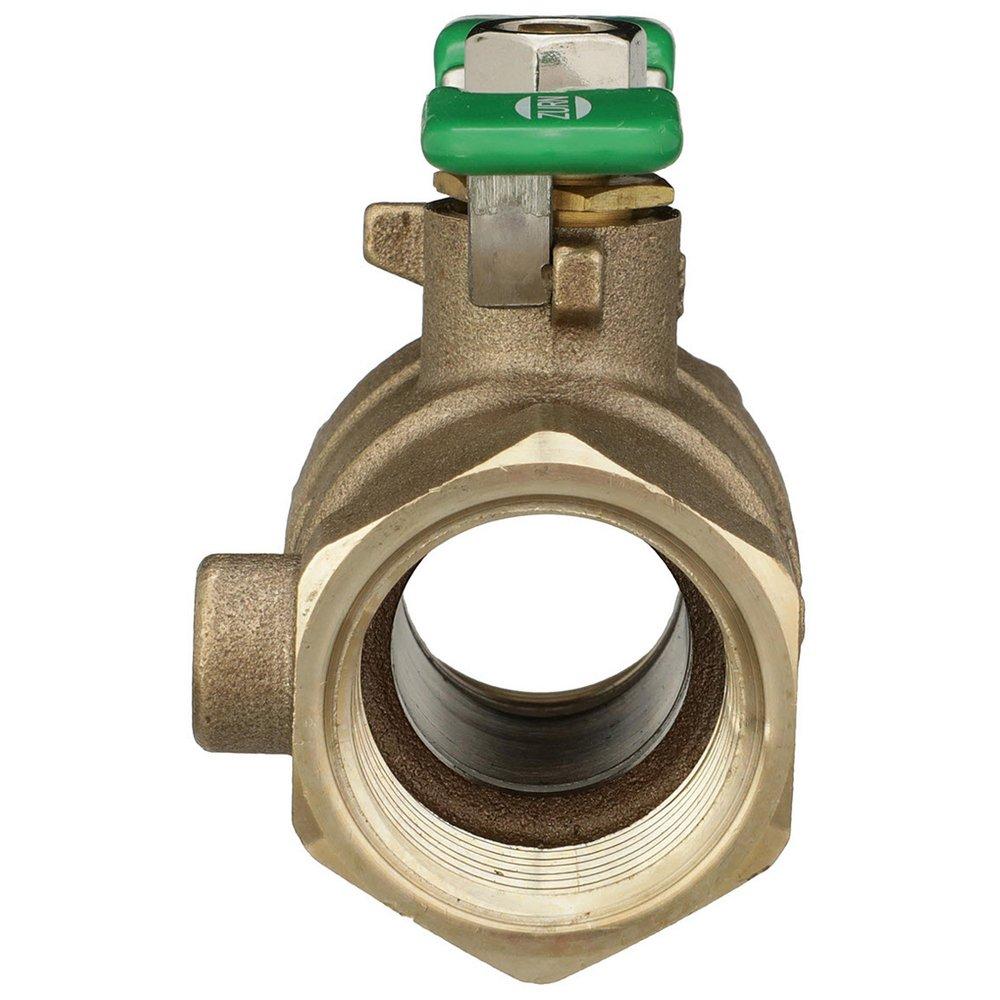

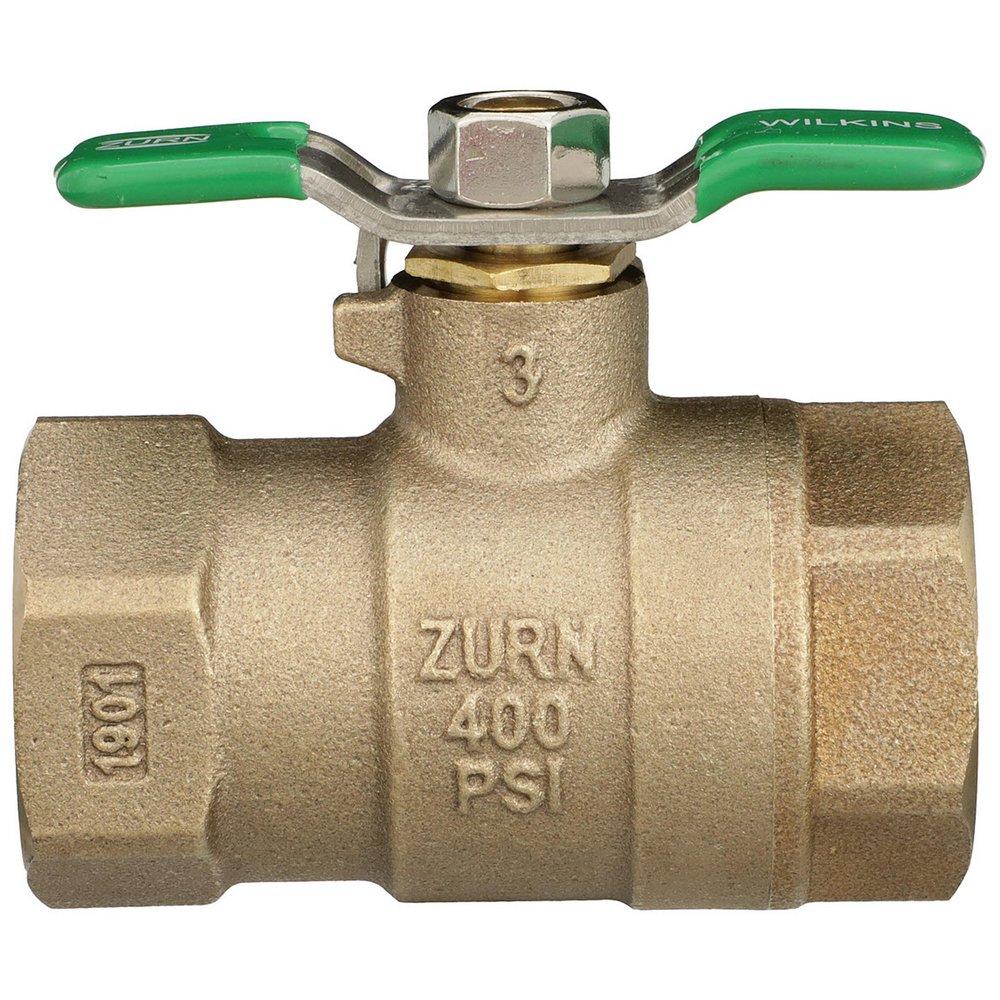

Zurn 34-850TXL Model 850XL 3/4 in. Bronze Full Port FNPT 400# Ball Valve

Product Description

The Zurn 34-850TXL Model 850XL is a 3/4 inch bronze ball valve designed for various plumbing applications. This valve features a full port design which allows for maximum flow. It is suitable for residential, commercial, and industrial use where lead-free components are essential.

• Full port design for maximum flow and minimal pressure drop.
• Constructed with low lead cast bronze for durability and safety.
• Rated for up to 400 psi water, oil, and gas.

Product Highlights

The Zurn 34-850TXL provides reliable operation and performance in demanding environments.

Product Information

Standard Information

• Brand: Zurn Wilkins
• Model Number: 34-850TXL

Technical Specifications

• Valve Style: In-line (Backflow, PRVs, TMVs, RVs, etc.)
• Mounting Type: Vertical, Horizontal
• Connection Size: 3/4 x 3/4
• Connection Type: FIP x FIP
• Body Material: Low Lead Cast Bronze
• Maximum Working Water Pressure: 400 psi
• Temperature Rating: 33°F to 350°F
