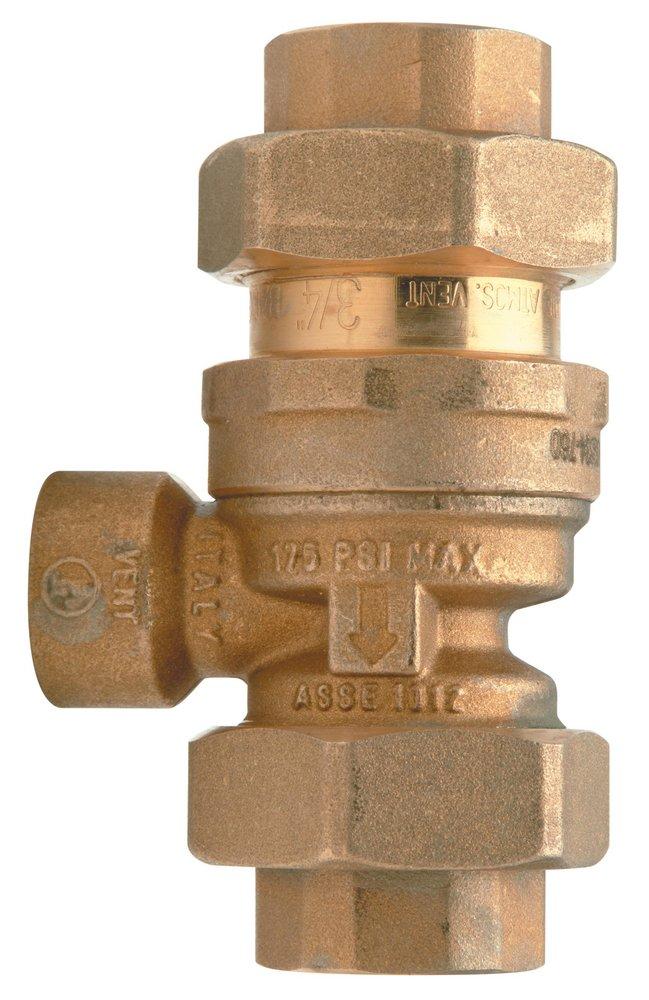

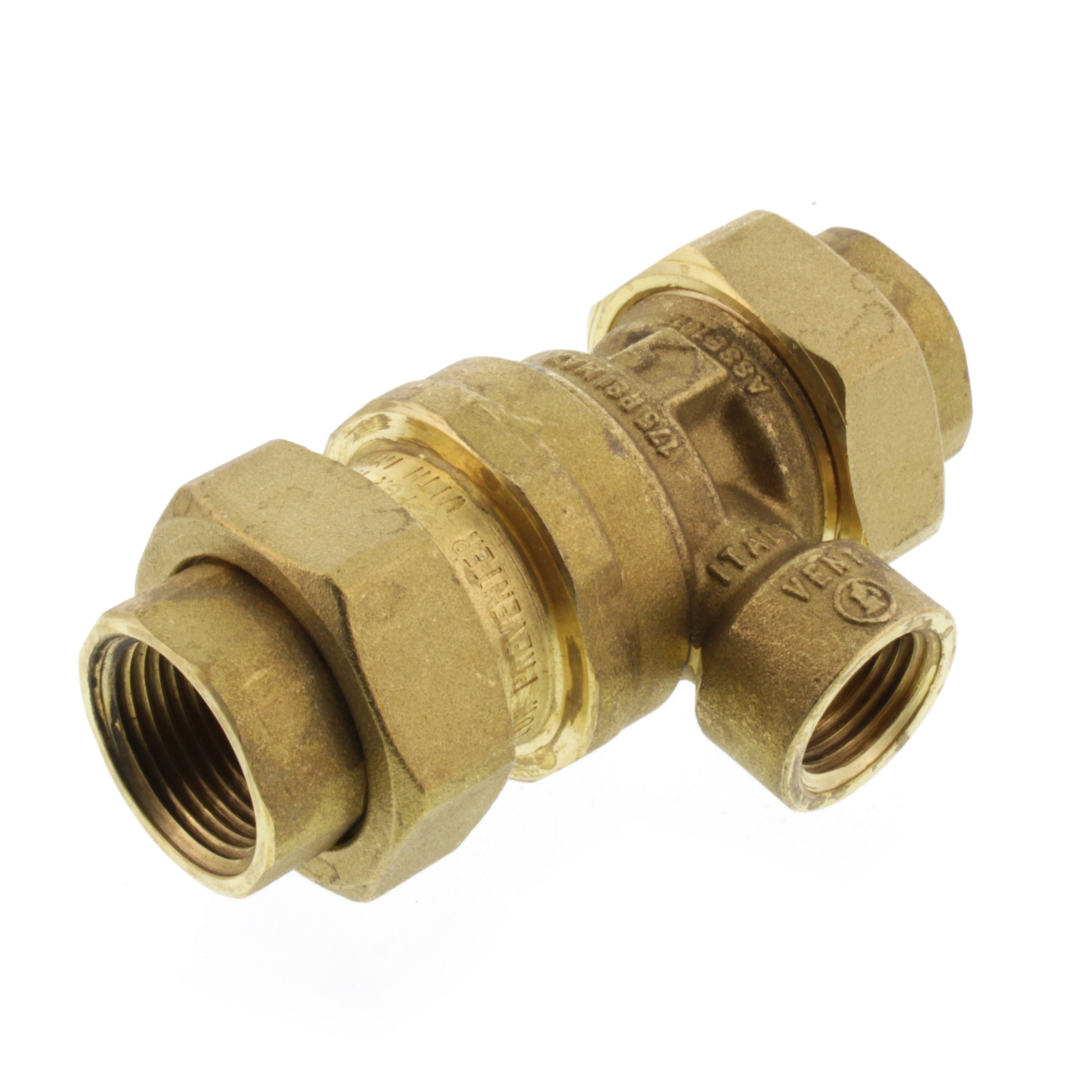

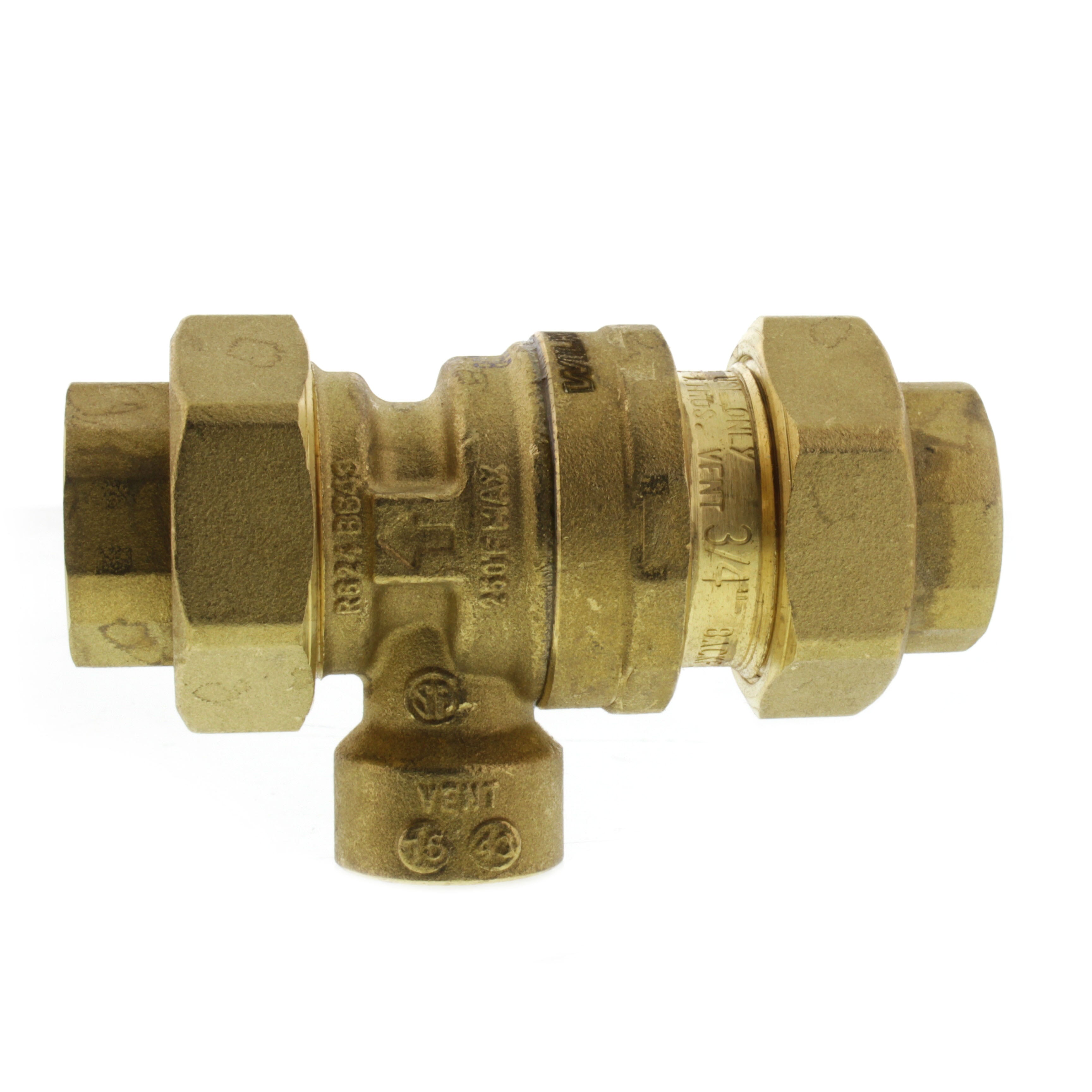

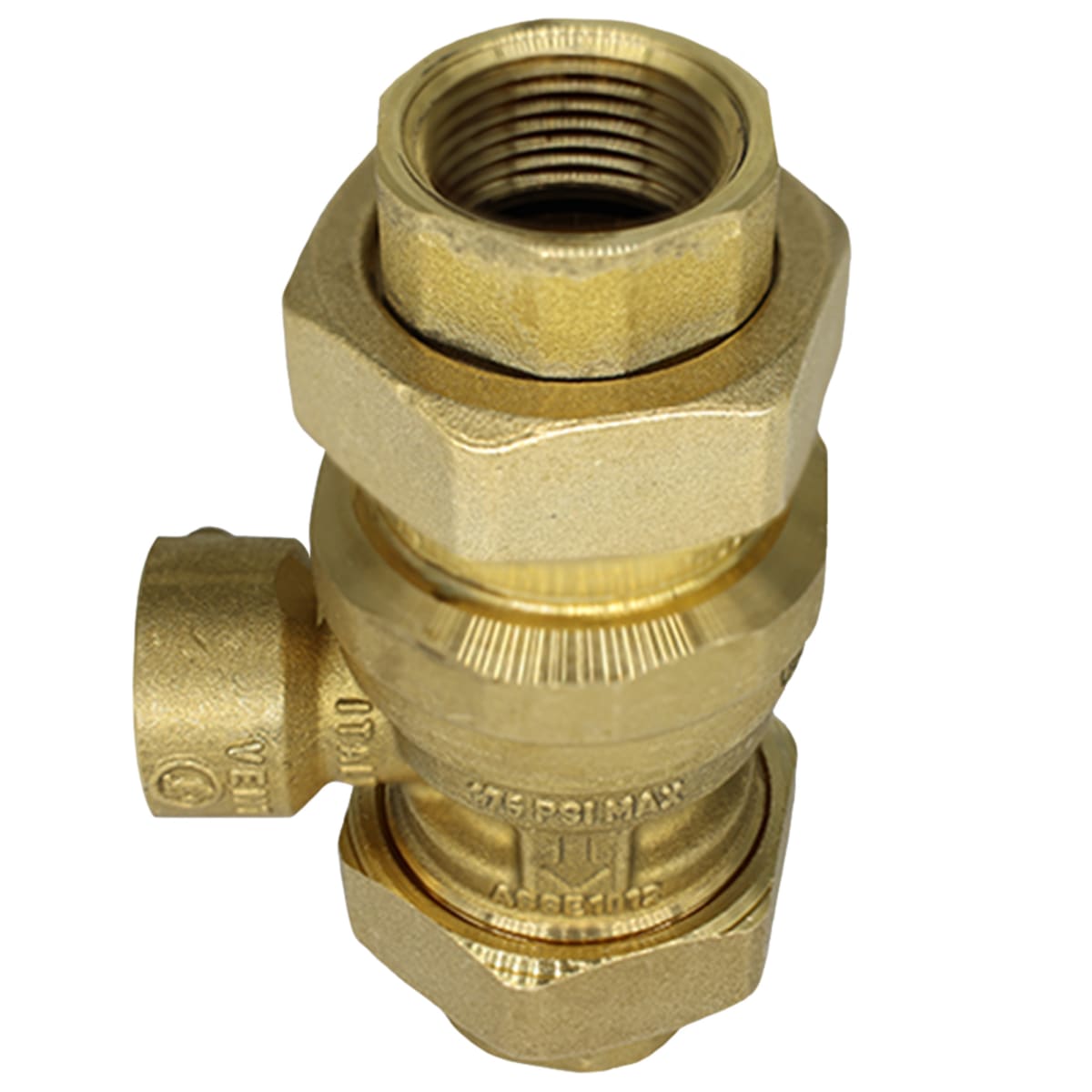

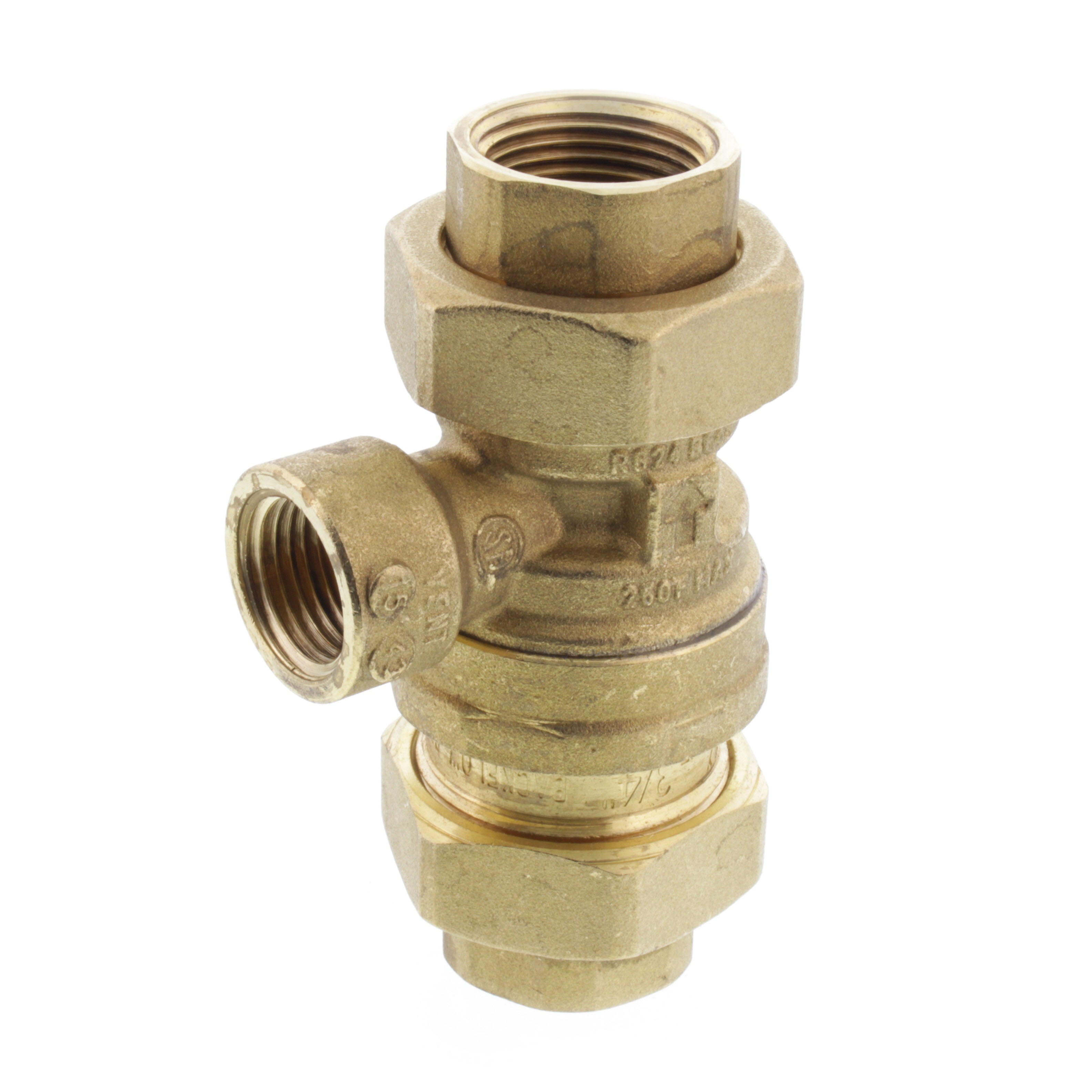

Zurn 34-760 Model 760 3/4 In. FNPT Dual Check Valve

Product Description

The Zurn 34-760 Model 760 3/4 In. FNPT Dual Check Valve is designed for protection against backflow in plumbing systems. This unit is ideal for both residential and commercial installations, particularly in environments with a potential health hazard. Key features include a brass body, a threaded atmospheric vent drain, and an integral strainer screen to prevent clogging.

• Includes two FNPT union end connections
• Fits three-fourth inches inside diameter pipe
• Brass body construction protects against corrosion

Product Highlights

This dual check valve provides reliable backflow prevention. It is suitable for installation on boiler fill water lines, ensuring compliance with plumbing standards.

Product Information

Standard Information

• Brand: Zurn Wilkins
• MPN: 34-760

Technical Specifications

• Type: Dual Check Backflow Preventer
• Size: 3/4 In.
• Material: Brass
• Connection Type: FNPT x FNPT
• Maximum Working Water Pressure: 175 psi
• Maximum Working Water Temperature: 210 degrees F
• Height: 2.2 inches
• Length: 4.78 inches
• Width: 2.8 inches
• Weight: 1.27 lbs
• Mounting Type: Horizontal
• ASSE Standard: ASSE 1012
