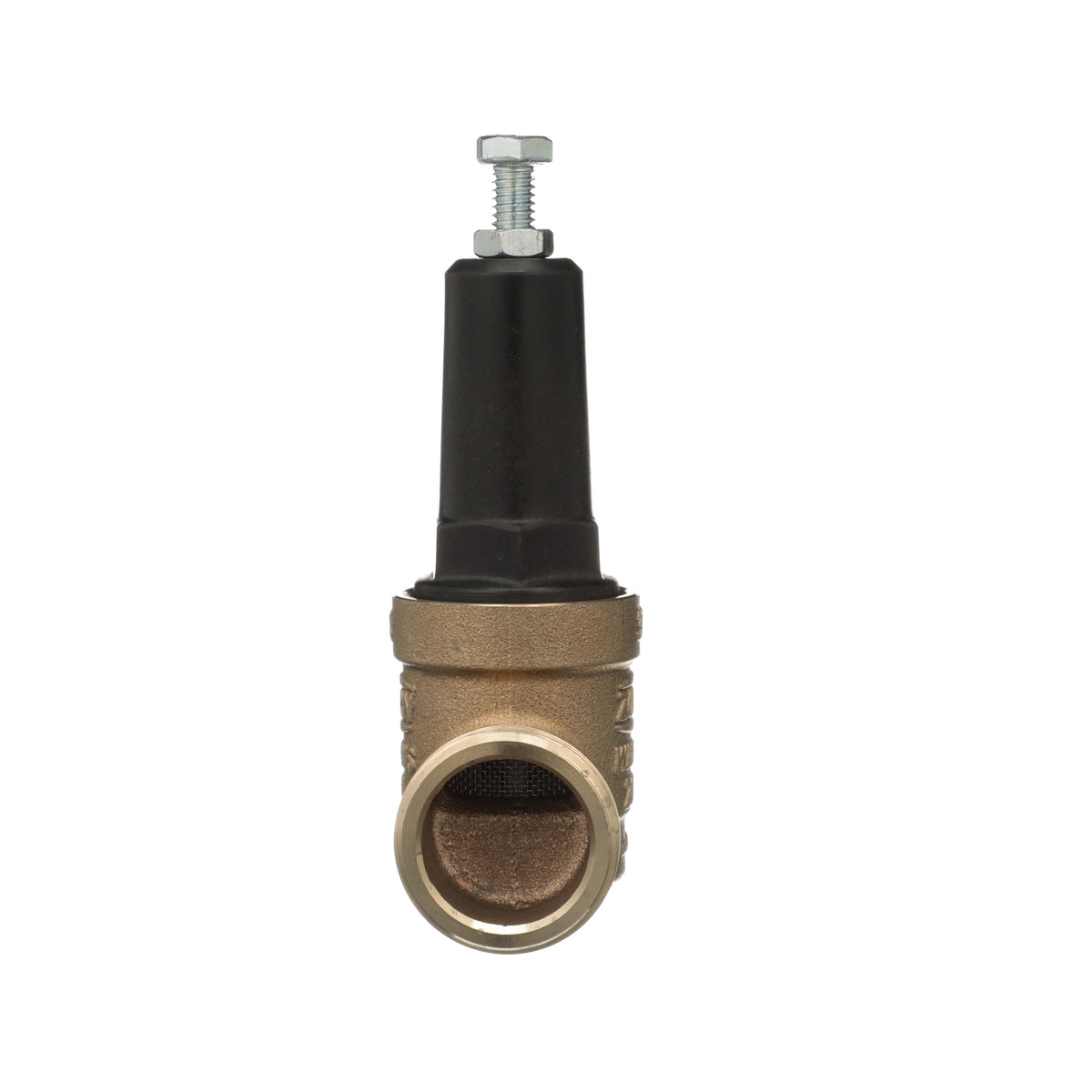

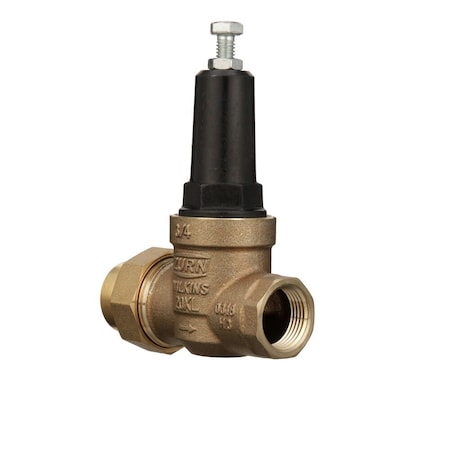

Product Description
The ZURN 34-20XL pressure reducing valve is designed to reduce high inlet pressure to lower outlet pressure on potable water lines. Its compact design ensures ease of installation in residential or commercial applications. The balanced stem design enables the PRV to react smoothly to changes in system flow and protects from inlet pressure changes.
- Short lay length and compact design ensures ease of installation.
- Composite cartridge and bell housing deliver superior strength and corrosion resistance.
- Stainless steel strainer screen catches debris.
Product Highlights
This pressure reducing valve is compact, versatile, and an ideal solution for any application.
Product Information
Standard Information
-
Brand: ZURN
-
Manufacturer Part Number: 34-20XL
-
Country of Origin: China
Technical Specifications
-
Size: 3/4"
-
Material: Cast Bronze
-
Lead Free: Yes
-
Inlet Type: Union FNPT
-
Outlet Type: Union FNPT
-
Pressure Range: 25 to 75 psi
-
Max Pressure (PSI): 300
-
Preset PSI Setting: 50 psi
-
Max Water Temp (°F): 140°F
-
Features: Compact design and short lay length ensures ease of installation in any application from new construction to replacement
-
Pipe Size: 3/4"
-
Application: Residential;Commercial
-
Connection Type: FNPT x FNPT
-
Body Material: Bronze/Polymer
-
End Style: Single Union FNPT x FNPT
-
Inlet to Outlet Length: 4-1/8 in
-
Media: Water
-
Nominal Size: 3/4 in
-
Series: 20XL
-
Temperature Rating: 33 to 140 deg F
