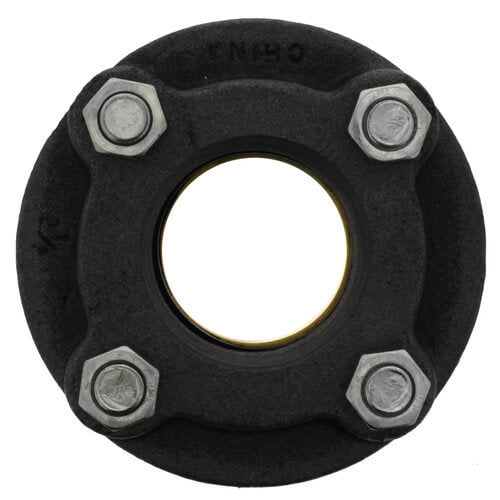

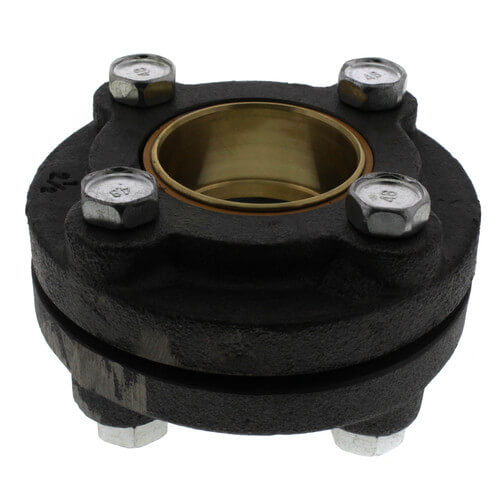

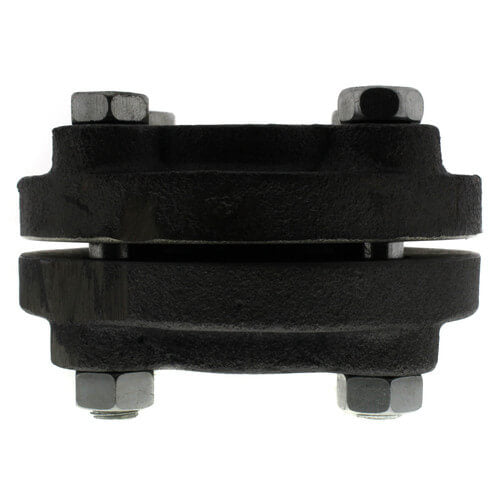

Zurn 212-DUXLC 2-1/2 Flanged Female x Female Dielectric Union

Product Description

The Zurn 212-DUXLC is a 2-1/2 inch flanged female x female dielectric union designed for protecting potable water lines. This fitting is essential for preventing system deterioration from galvanic and stray current corrosion. Its lead-free design meets safety standards for plumbing fittings.

• Lead-free construction for health safety
• Designed for dissimilar metal piping applications
• Thread and copper solder joint compatibility

Product Highlights

Use this dielectric union to connect different piping materials safely and effectively. It supports bronze, iron, and copper connections, making it versatile for various plumbing needs.

Product Information

Standard Information

• Material: Steel
• Pressure Rating: 250 psi

Technical Specifications

• Size: 2-1/2 inches
• Connection Type: Female flange x copper solder joint
• Maximum Temperature Rating: 180 degrees Fahrenheit
• Standards Met: ANSI/NSF 372 by IAPMO R&T, ANSI B1.20.1
• Shipping Dimensions: 6.5 inches (depth) x 6.5 inches (width) x 4.25 inches (height)
