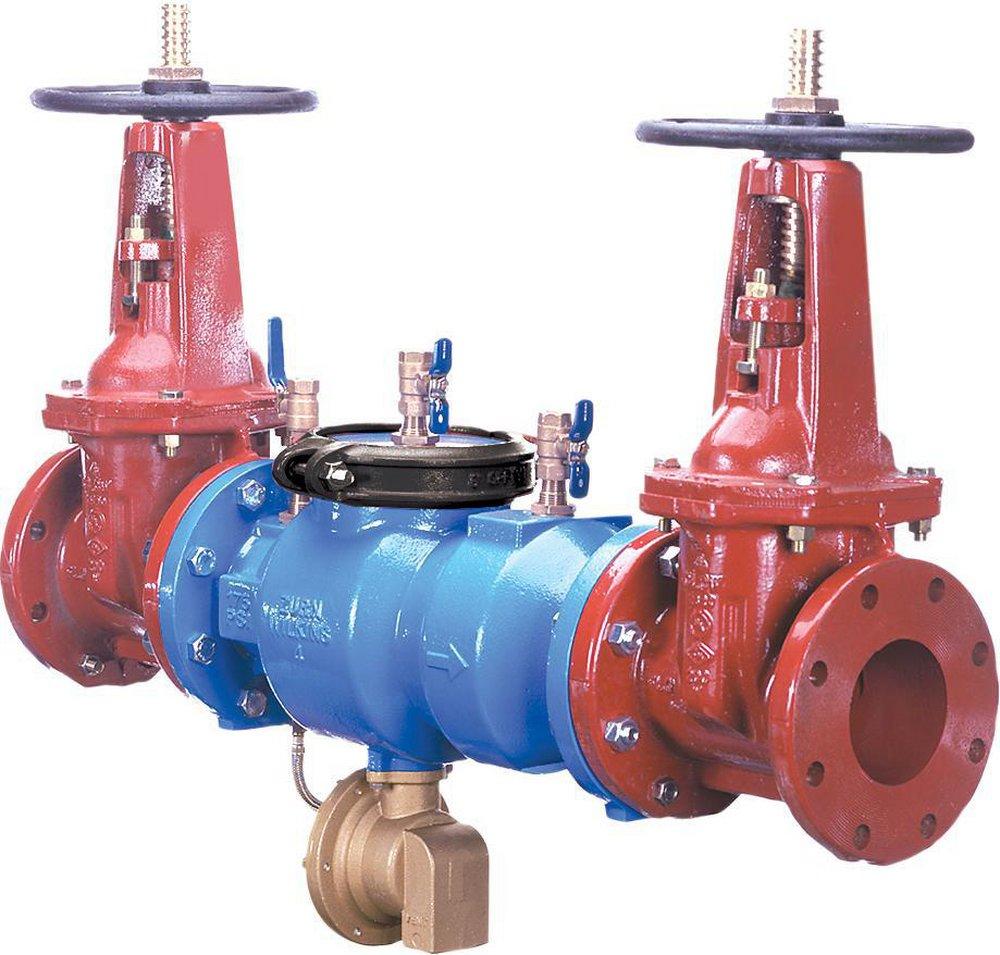

Zurn 212-375OSY 375 2-1/2 in. Epoxy Coated Ductile Iron Flanged x Grooved 175 psi Backflow Preventer

Product Description

The Zurn 212-375OSY is a 2-1/2 inch reduced pressure principle backflow preventer. This device is used to protect potable water supplies from contamination due to backpressure or backsiphonage. It features a complete epoxy coating that prevents corrosion and ensures long-lasting durability. The backflow preventer is compliant with lead-free laws and designed for use in applications where health hazards may occur.

• Utilizes Zurn Wilkins low headloss compound check for reliable performance
• Complete epoxy coating inside and outside to eliminate corrosion risks
• ASSE Listed 1013 and AWWA Compliant C511

Product Highlights

This backflow preventer is designed for waterworks applications and built to withstand maximum working pressures of 175 psi and temperatures up to 140 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Zurn Wilkins
• MPN: 212-375OSY

Technical Specifications

• Size: 2-1/2 inches
• Type: Reduced Pressure Principle Backflow Preventer
• Weight: 217 lbs
• Material: Ductile Iron
• Connection Type: Flanged x Flanged
• Maximum Working Water Pressure: 175 psi
• Maximum Working Water Temperature: 140 degrees Fahrenheit
• Dimensions: Length 36.8 inches, Width 19.3 inches, Height 28.3 inches
• Valve Style: In-line Backflow Preventer
• Mounting Type: Vertical, Horizontal
• Application: Waterworks
