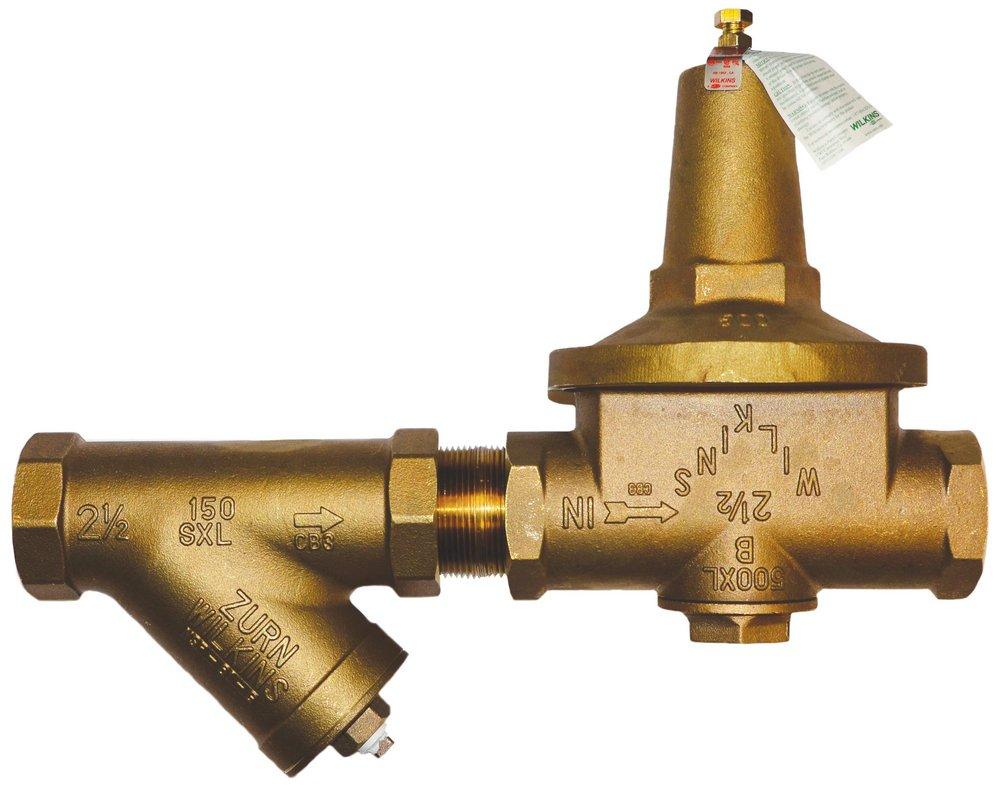

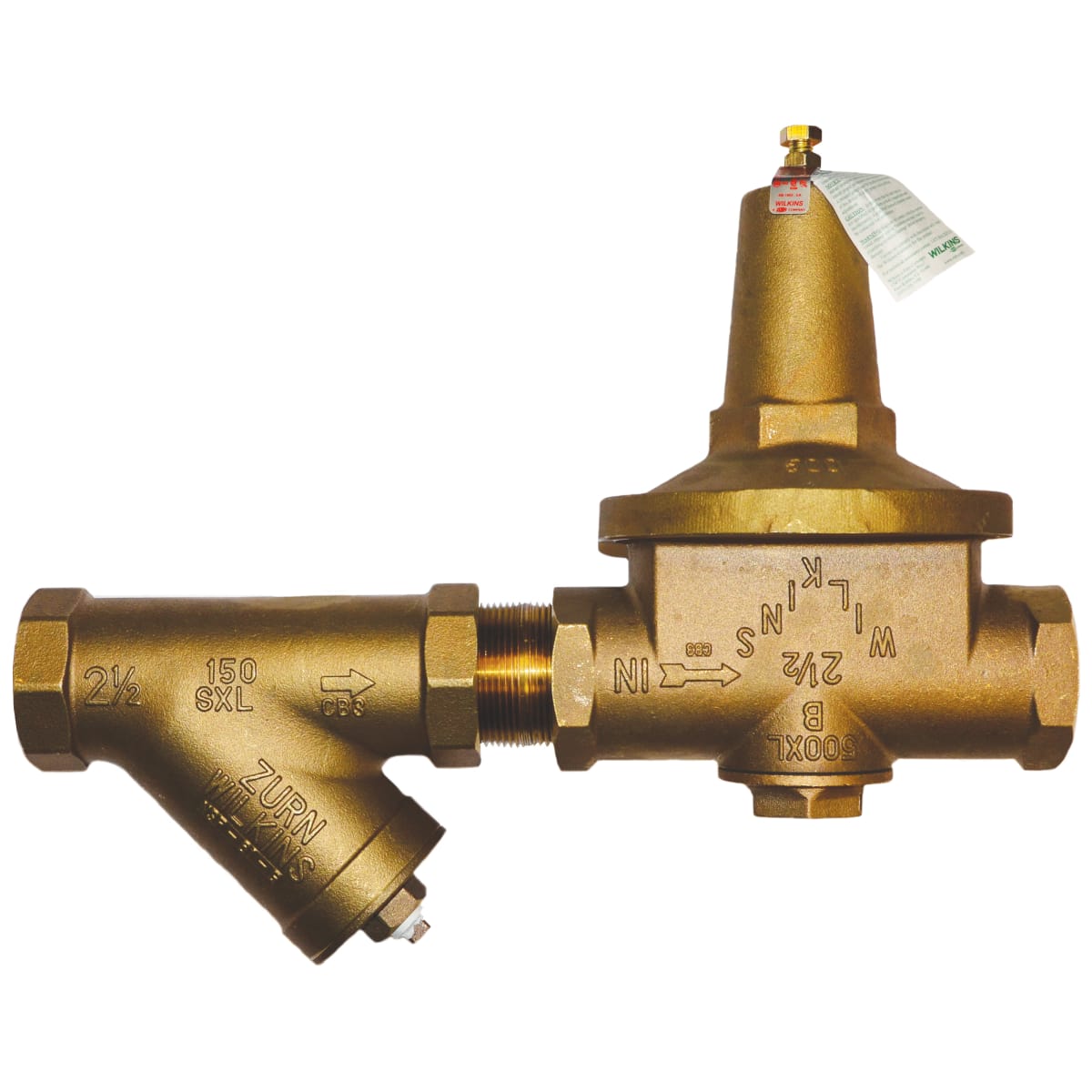

Zurn 2-500XLYSBR 500XLYSBR 2 in. Cast Bronze Union FNPT x FNPT Pressure Reducing Valve

Product Description

The Zurn 2-500XLYSBR is a pressure reducing valve designed for industrial and commercial use. It features a wye strainer to protect against sediment and debris, ensuring reliable operation and reduced maintenance costs. The valve is suitable for high flow applications, effectively reducing pressure from the inlet to a lower outlet pressure.

• Durable, threaded bell for easy access to cartridge internals.
• Wye strainer minimizes maintenance by protecting against debris.
• High flow capacity ideal for industrial water lines.

Product Highlights

This valve is equipped with a balanced piston design that enables smooth adjustments to varying system flow demands. Its direct acting integral bypass design helps avoid excessive pressure buildup due to thermal expansion, making it a reliable choice for pressure management in diverse applications.

Product Information

Standard Information

• Brand: Zurn Wilkins
• Material: Low Lead Cast Bronze

Technical Specifications

• Size: 2 inches
• Width: 13 inches
• Height: 16.5 inches
• Length: 19.5 inches
• Weight: 43 lbs
• Maximum Working Water Pressure: 300 psi
• Maximum Working Water Temperature: 140 degrees F
• Reduced Pressure Range: 25-75 psi
• ASSE Standard: ASSE 1003
• Connection Size: FNPT
