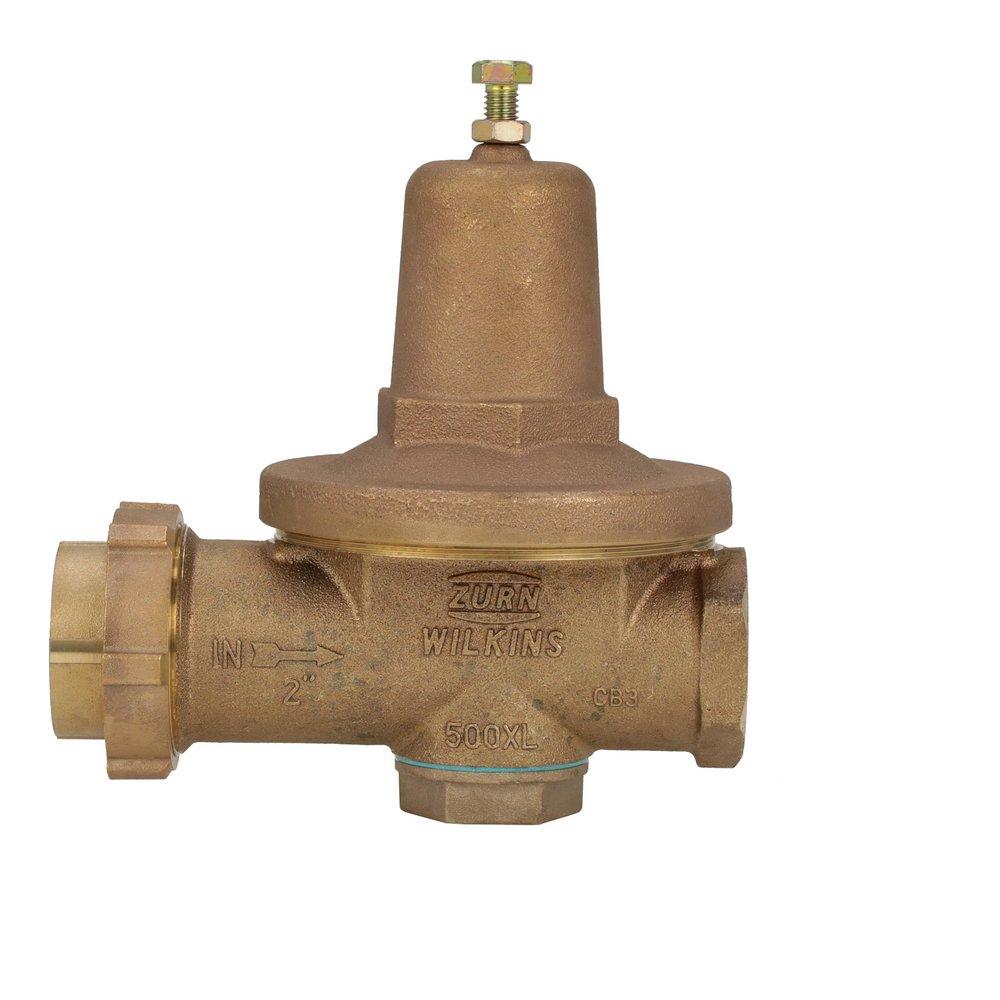

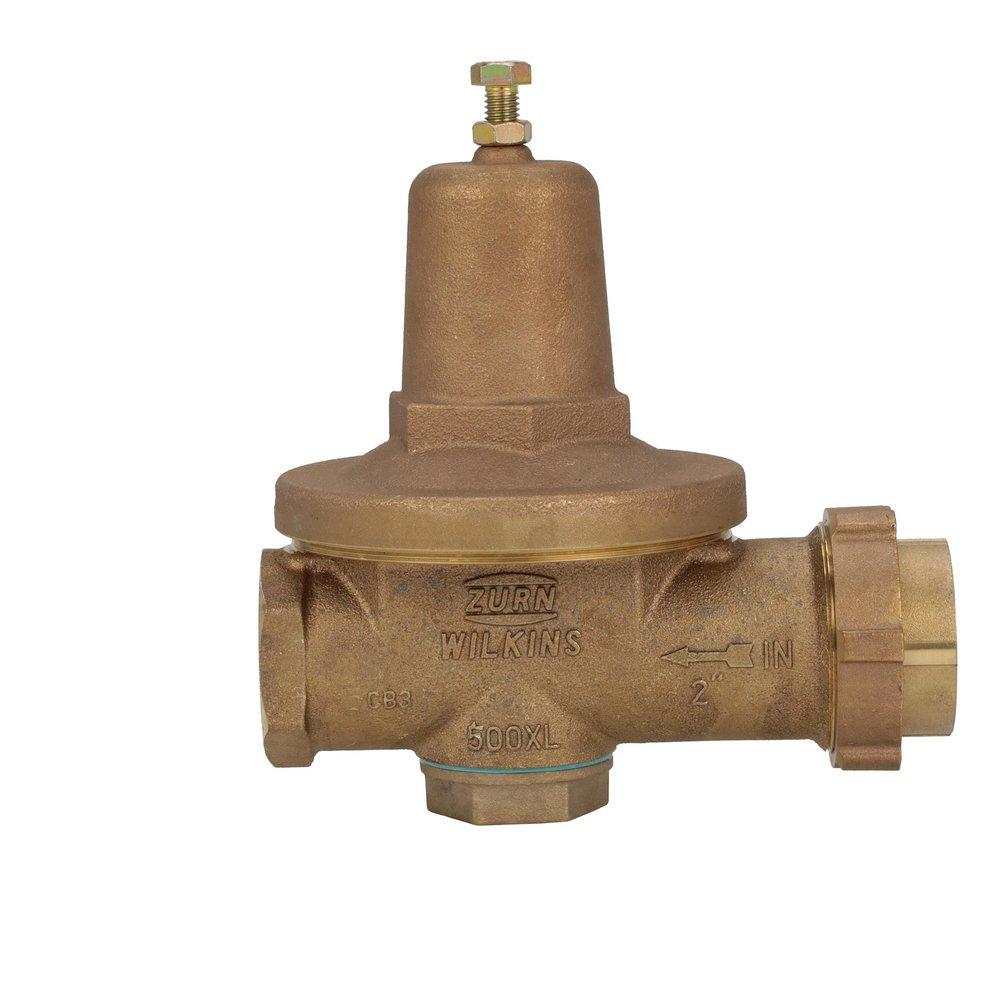

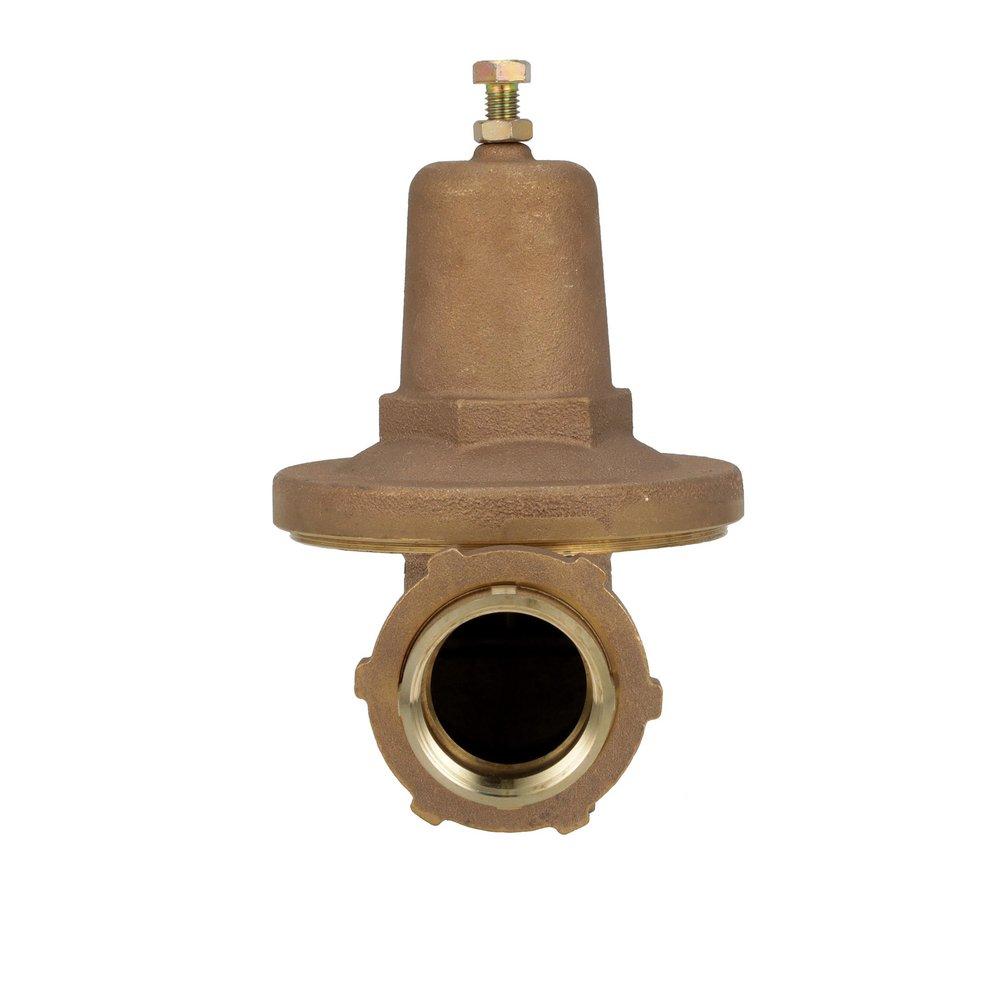

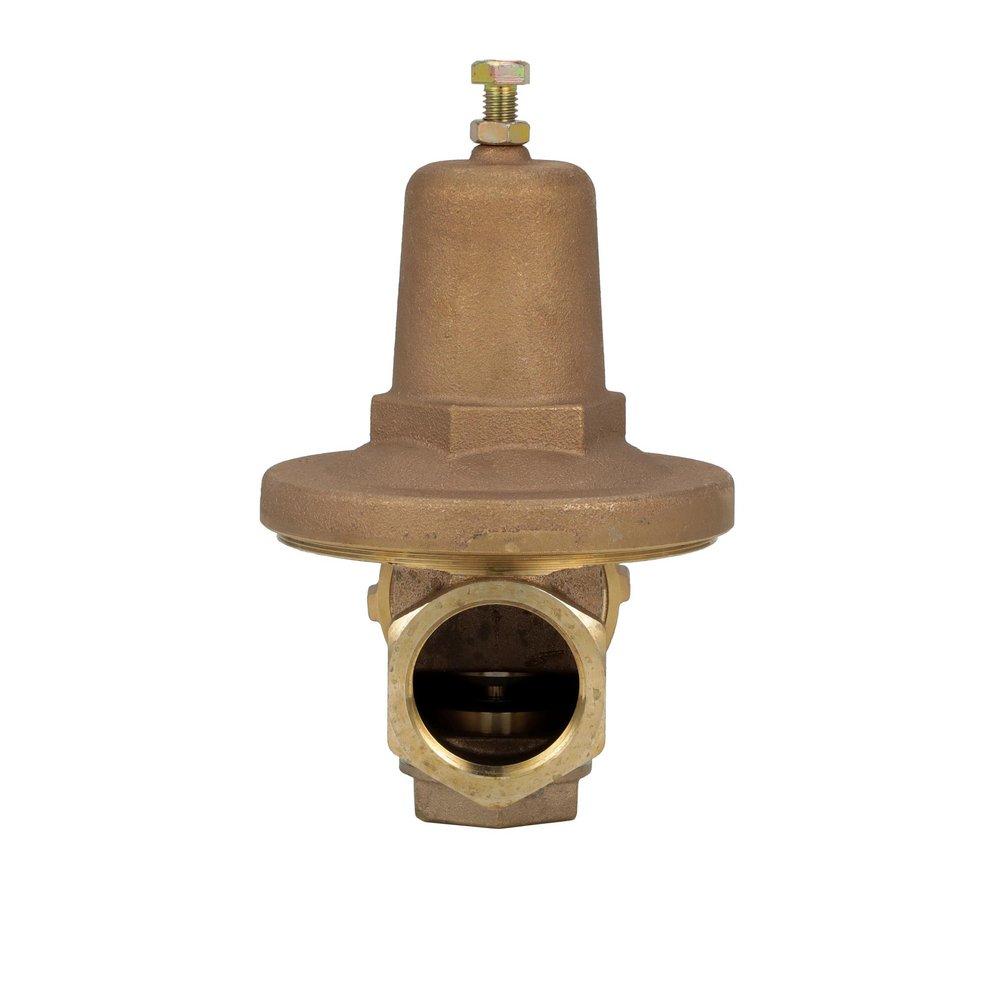

Zurn 2-500XL Model 500XL 2 in. 300 psi Cast Bronze FNPT Pressure Reducing Valve

Product Description

The Zurn 2-500XL is a pressure reducing valve designed for commercial and industrial water applications. This valve effectively manages high-flow rates and minimizes pressure fluctuations. The all-bronze construction ensures durability and corrosion resistance.

• Short lay length for installation in tight spaces.
• High-flow capacity suitable for commercial water use.
• Direct-acting integral bypass design prevents excessive pressure buildup.

Product Highlights

This valve is ideal for installations where reducing inlet pressure is essential for protecting plumbing systems. The balanced piston design allows for responsive adjustments to varying flow demands, ensuring consistent pressure control.

Product Information

Standard Information

• Brand: Zurn Wilkins
• MPN: 2-500XL

Technical Specifications

• Size: 2 inches
• Width: 6.5 inches
• Height: 10.9 inches
• Length: 10.9 inches
• Weight: 18.87 lbs
• Material: Low Lead Cast Bronze
• Application: Commercial, Potable Water
• Valve Style: In-line (Backflow, PRVs, TMVs, RVs, etc.)
• Max Pressure: 300 psi
• Max Temperature: 140 deg F
• Connection Type: FNPT x FNPT
• Reduced Pressure Range: 25-75 psi (standard)
