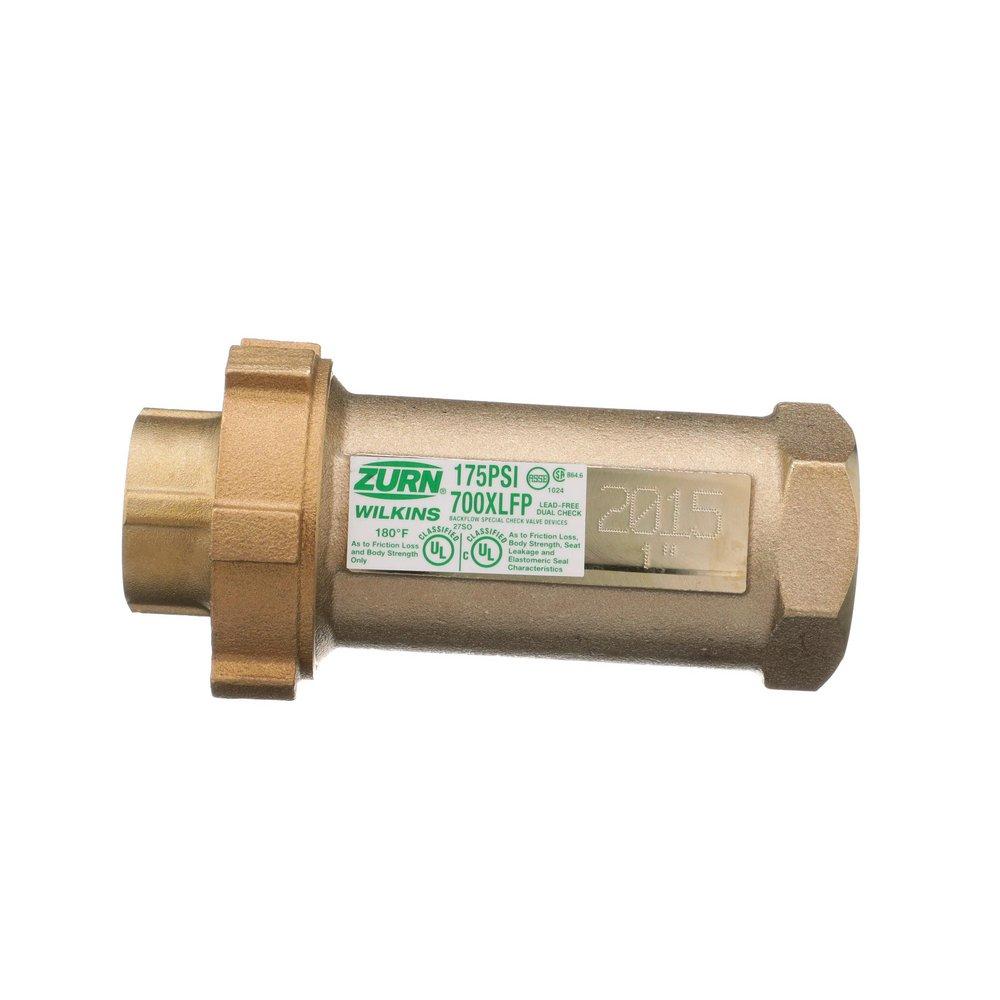

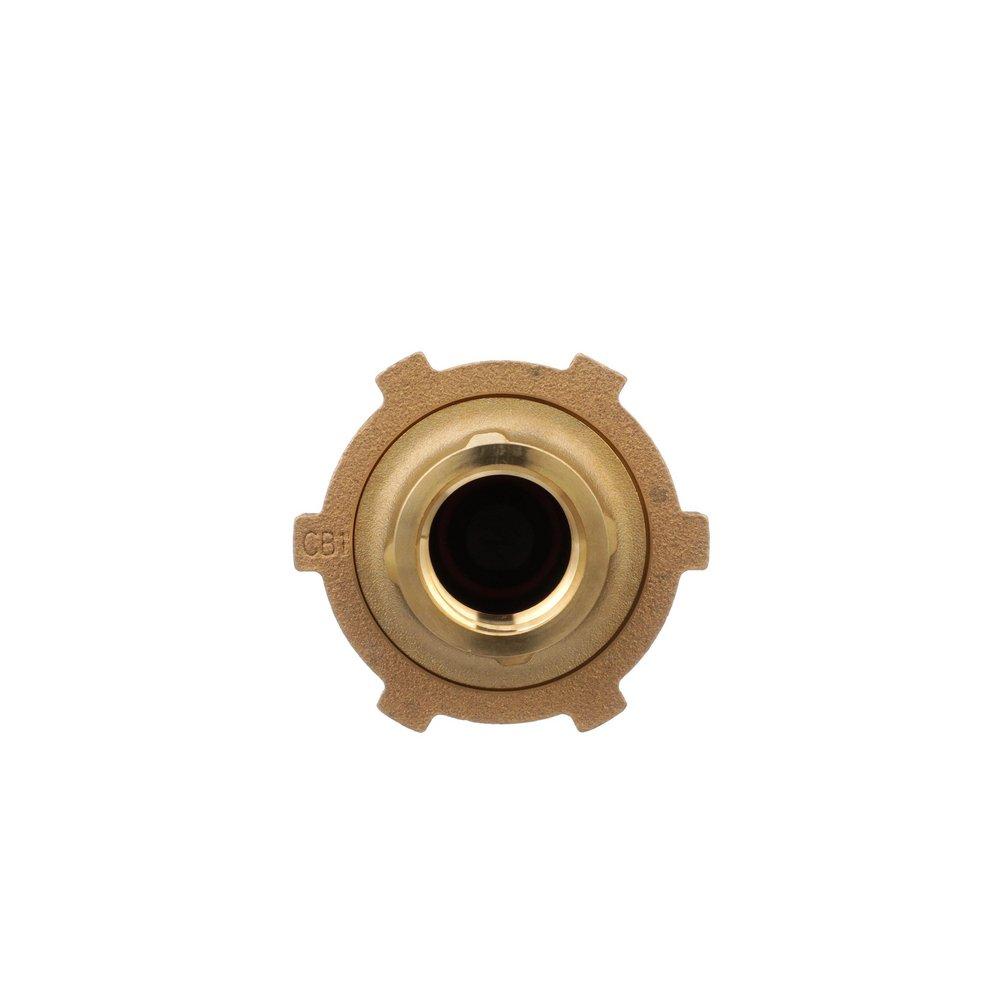

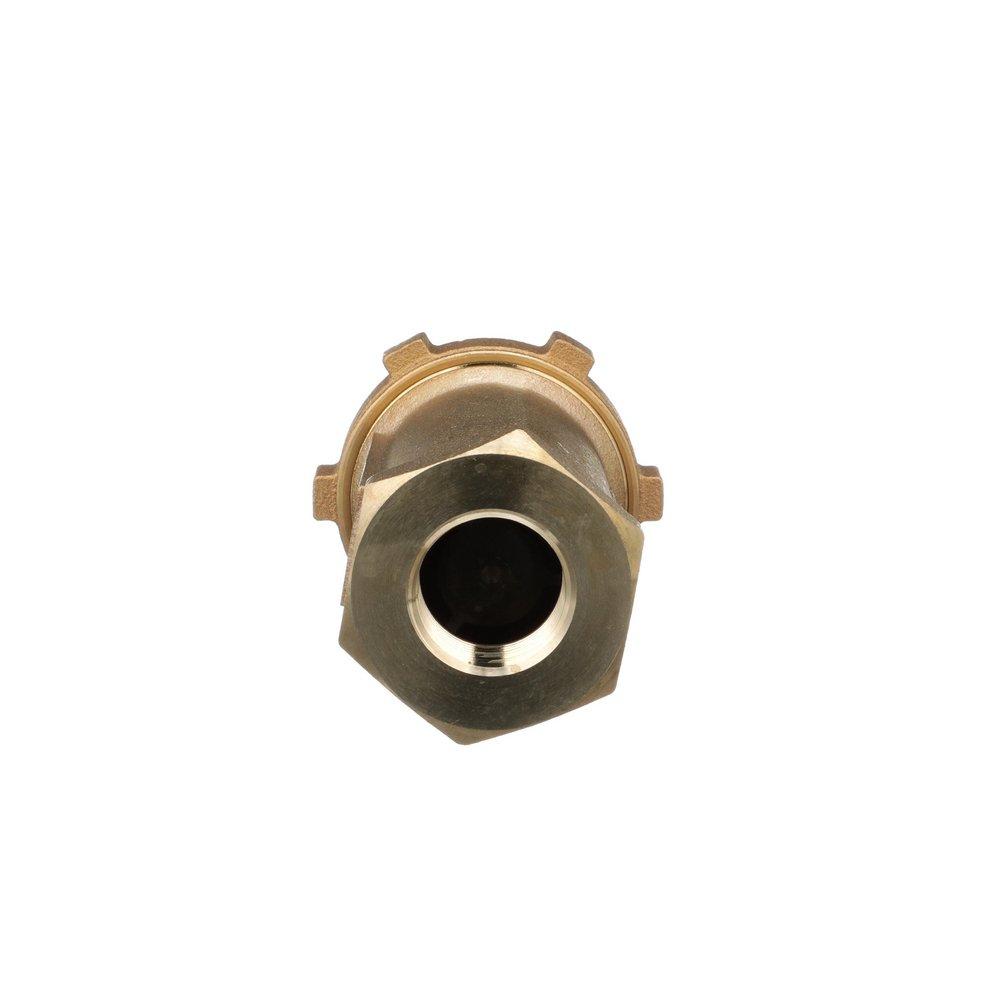

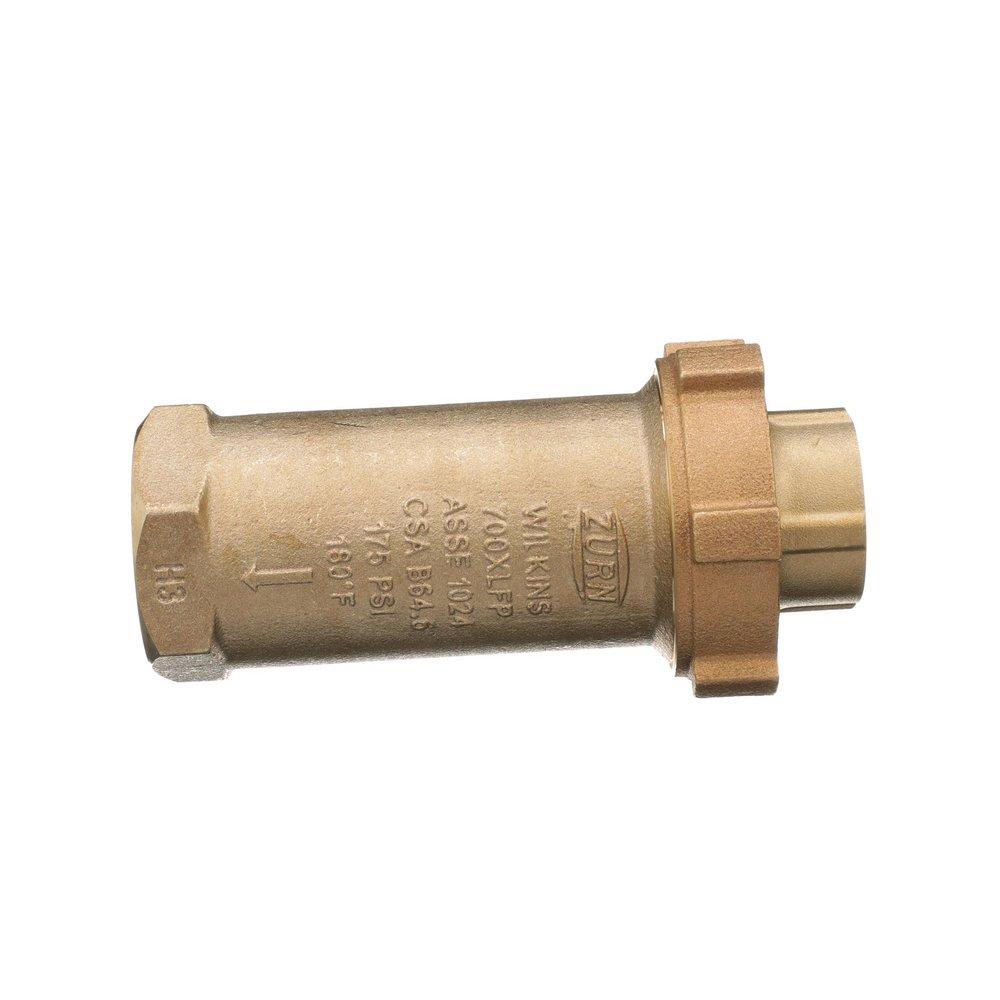

Zurn 1UFX1F-700XLFP 700XLFP Series 1 in Cast Bronze FNPT 175 psi Backflow Preventer

Product Description

The Zurn 700XLFP Series 1 in Cast Bronze FNPT Backflow Preventer, MPN 1UFX1F-700XLFP, is designed for low health hazard applications. It provides protection against backsiphonage and backpressure of polluted water. This valve is commonly used in residential fire sprinkler systems.

• Vertical and horizontal installation options
• Corrosion-resistant materials
• Maximum pressure of 175 psi

Product Highlights

This backflow preventer is built for safety and reliability in plumbing applications. It can be used in various configurations, ensuring versatility in installation.

Product Information

Standard Information

• Brand: Zurn Wilkins
• Part Number: 1UFX1F-700XLFP

Technical Specifications

• Size: 1 inch
• Type: Fire Protection/High Capacity Dual Check Valve
• Width: 3.313 inches
• Height: 6.563 inches
• Length: 3.438 inches
• Weight: 1.402 lbs
• Material: Bronze
• Application: Plumbing
• Valve Style: In-line (Backflow, PRVs, TMVs, RVs, etc.)
• Maximum Working Water Pressure: 175 psi
• Maximum Working Water Temperature: 140 deg F
• Connection Size: 1 x 1
• Connection Type: FNPT x FNPT
