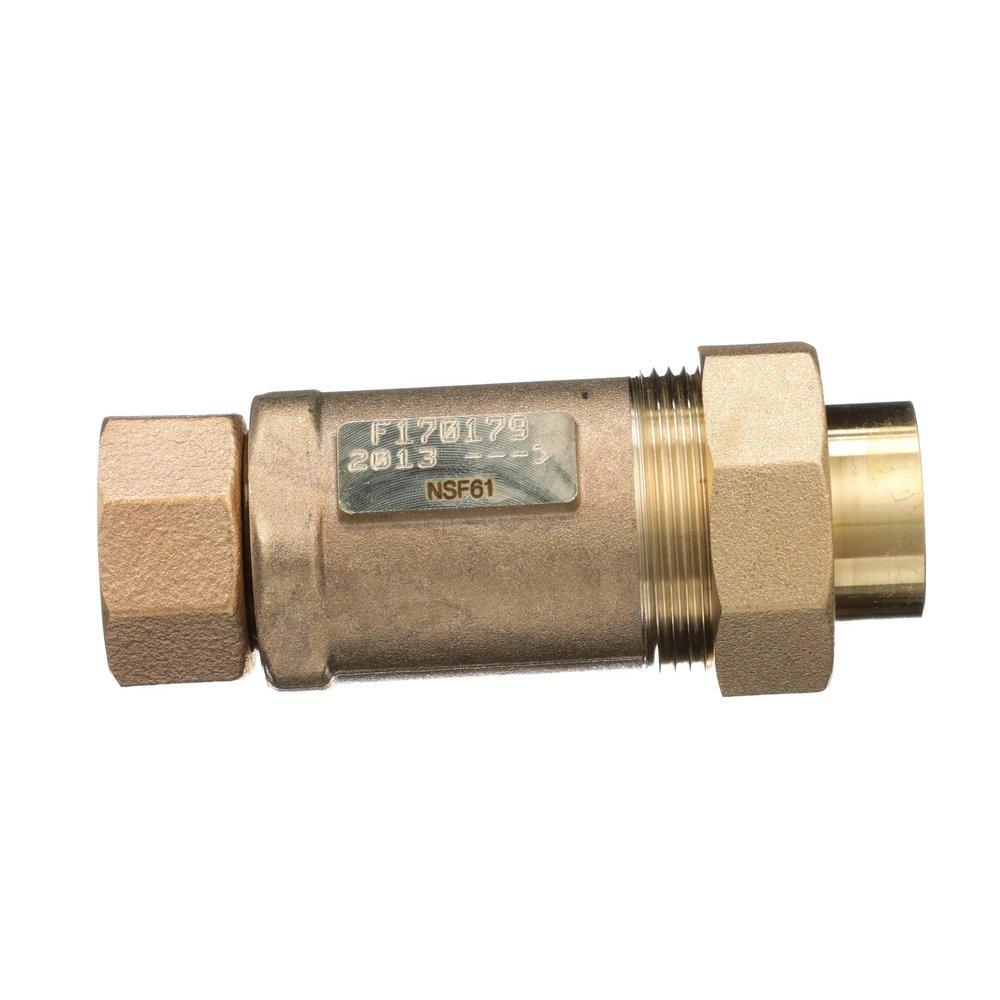

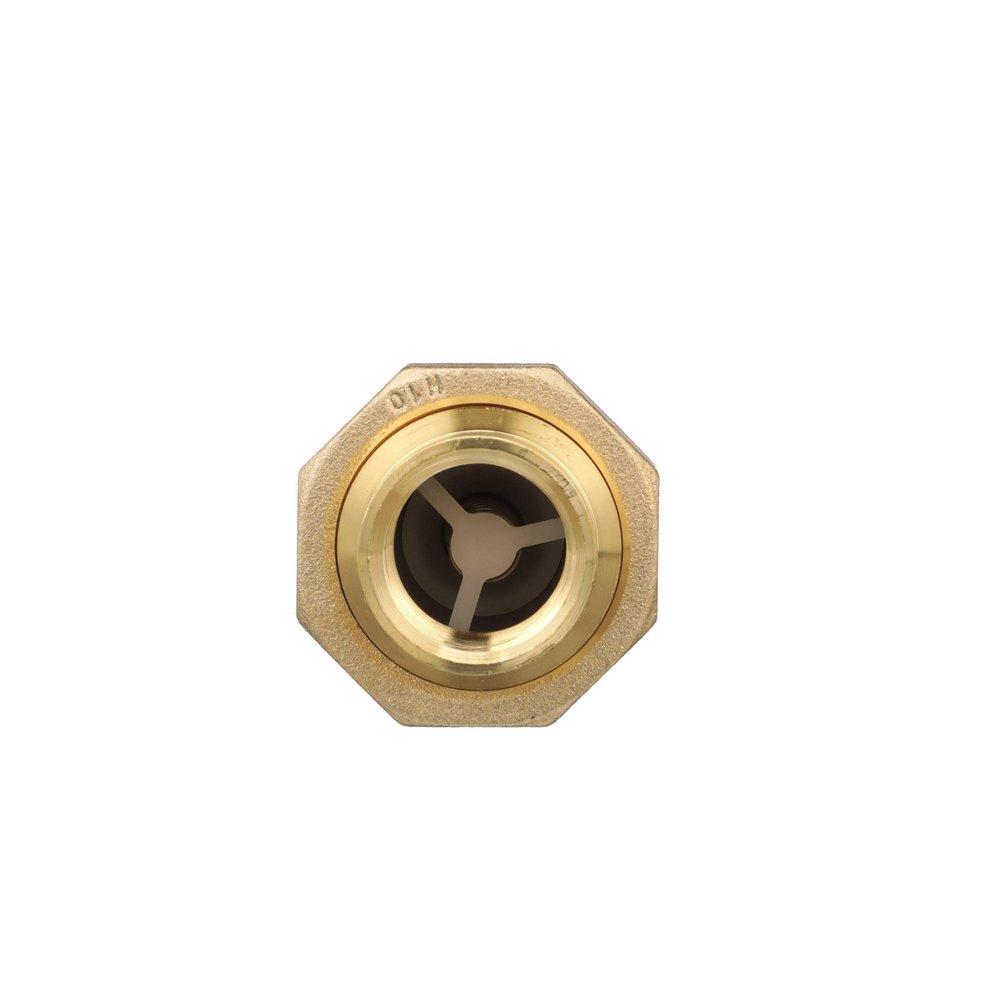

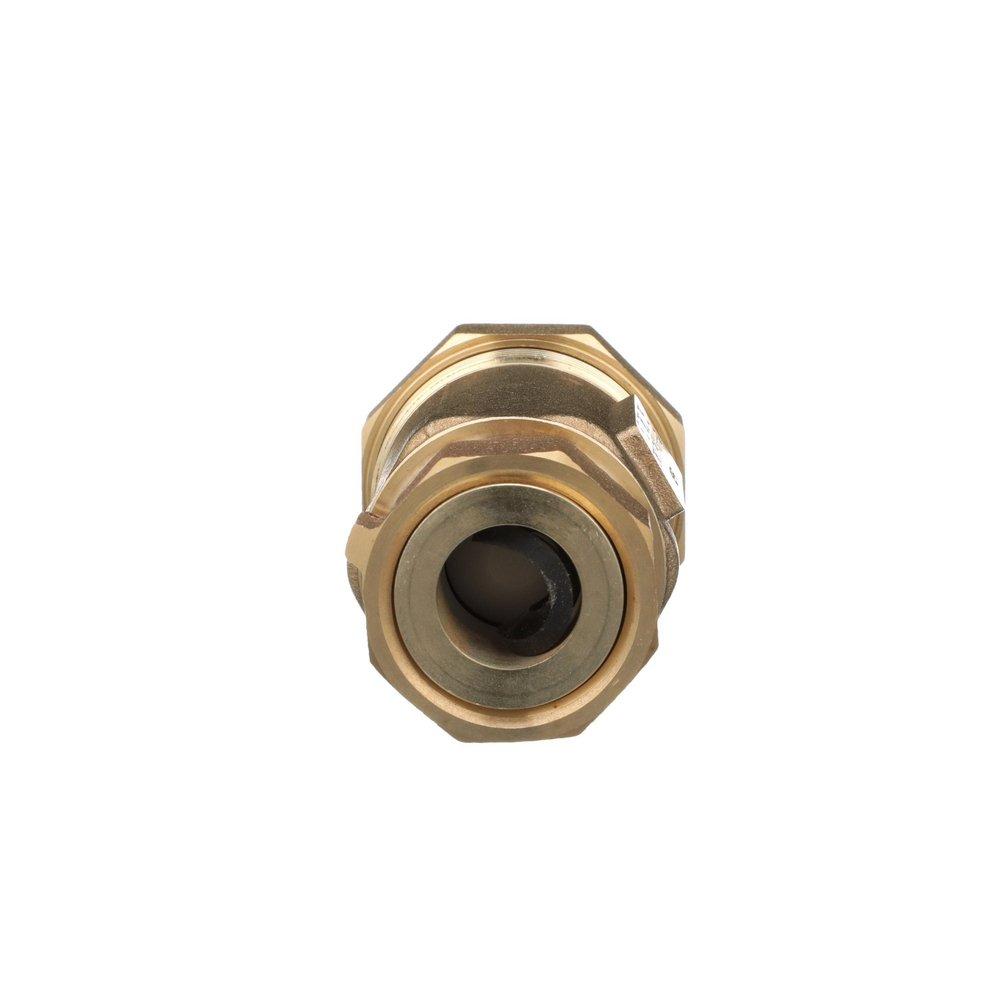

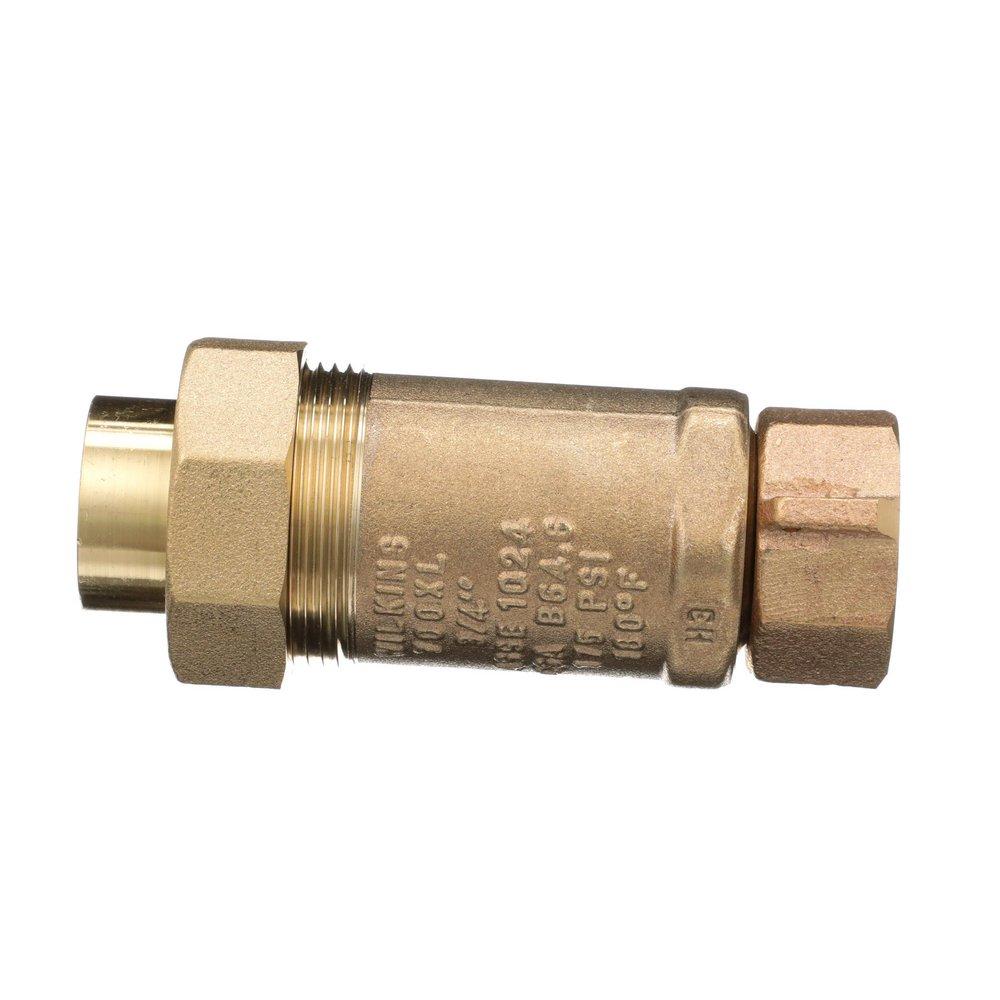

Zurn 1UFMX34UF-700XL 700XL 1 x 3/4 in. Cast Bronze Union Female Meter x Union FNPT 175 psi Backflow Preventer

Product Description

The Zurn 700XL Dual Check Valve with MPN 1UFMX34UF-700XL is designed for use in low hazard applications. It protects potable water lines from backsiphonage and backpressure.

• Lead-free construction for safety
• Can be installed horizontally or vertically
• Integral body outlet connection for easy installation

Product Highlights

This dual check valve is suitable for protecting drinking water. Its lead-free design meets health standards, and it is easy to install in various orientations.

Product Information

Standard Information

• Brand: Zurn Wilkins
• Part Number: 1UFMX34UF-700XL

Technical Specifications

• Material: Bronze
• Size: 1 x 3/4 inches
• Type: Dual Check Valve
• Connection Type: Female Meter Thread Connection x FNPT
• Maximum Working Pressure: 175 psi
• Maximum Working Temperature: 140 degrees F
• Weight: 1.4 lbs
• Height: 2.5 inches
• Width: 2.5 inches
• Length: 5.4 inches
• ASSE Standard: ASSE 1024
