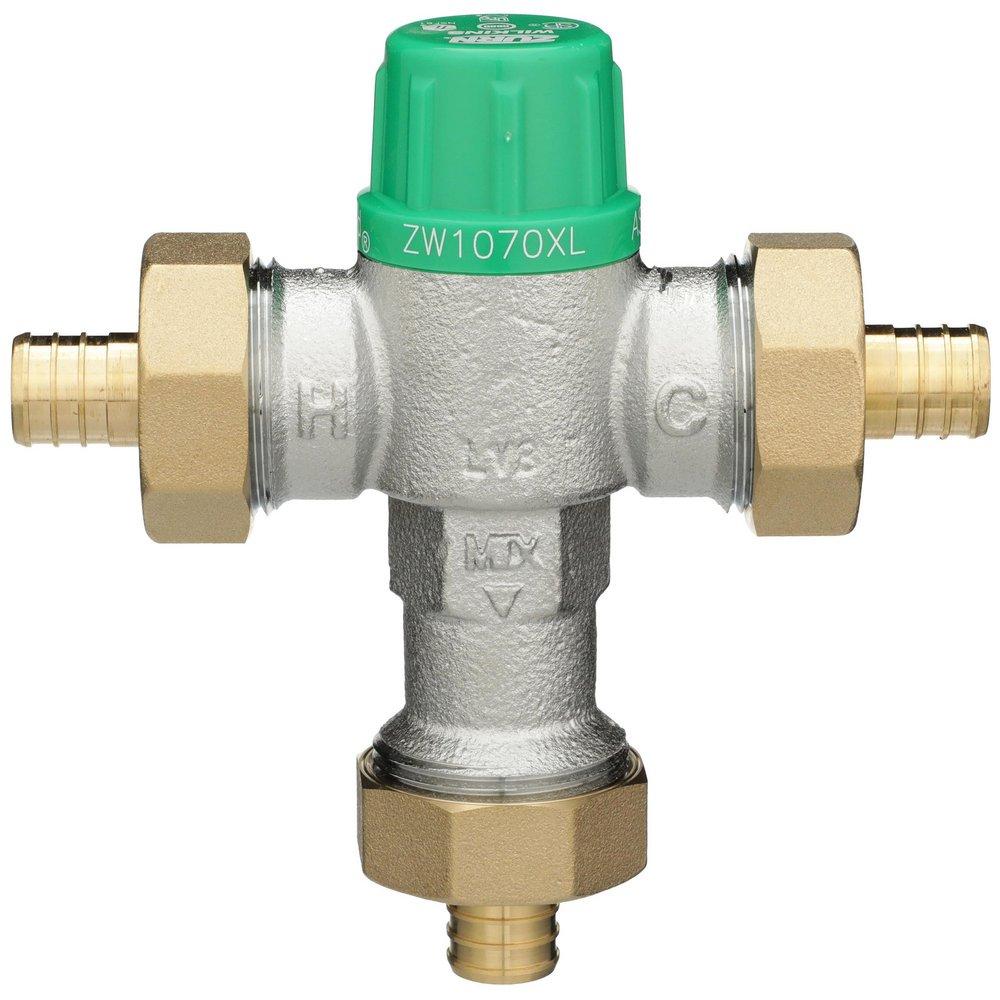

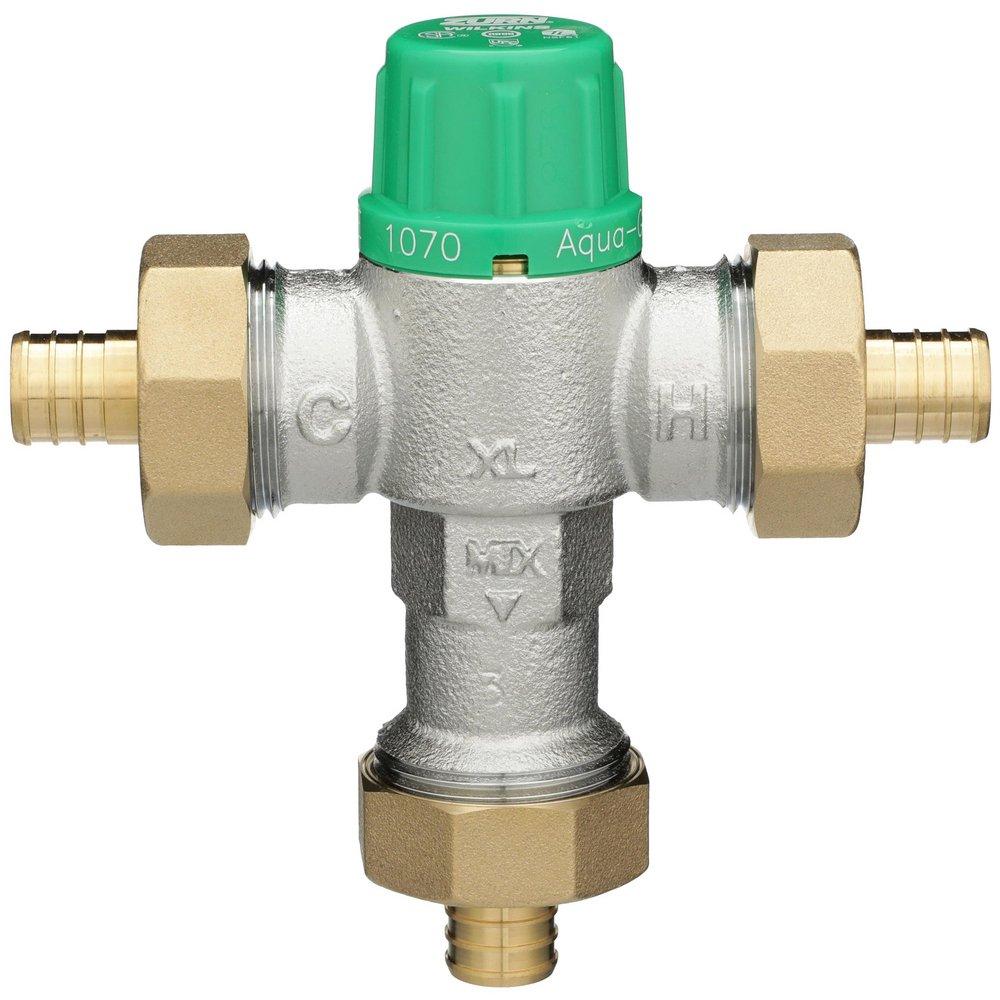

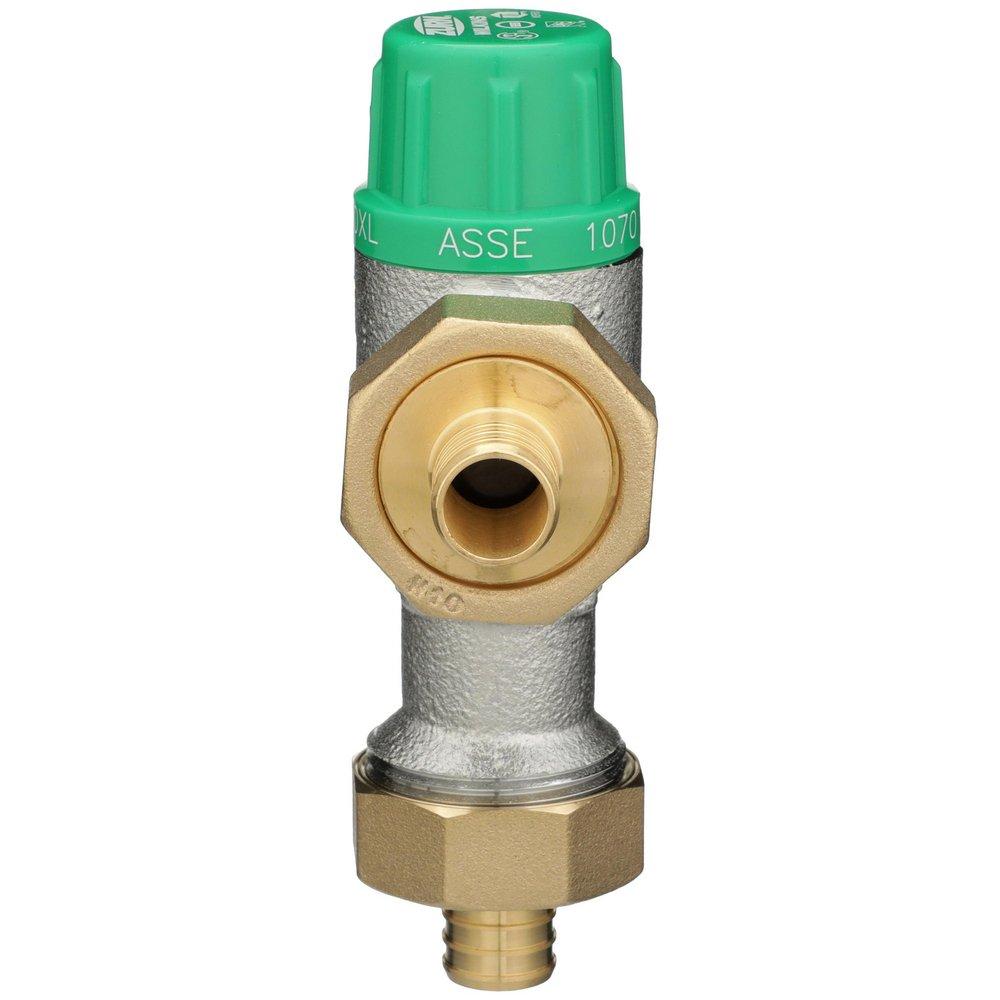

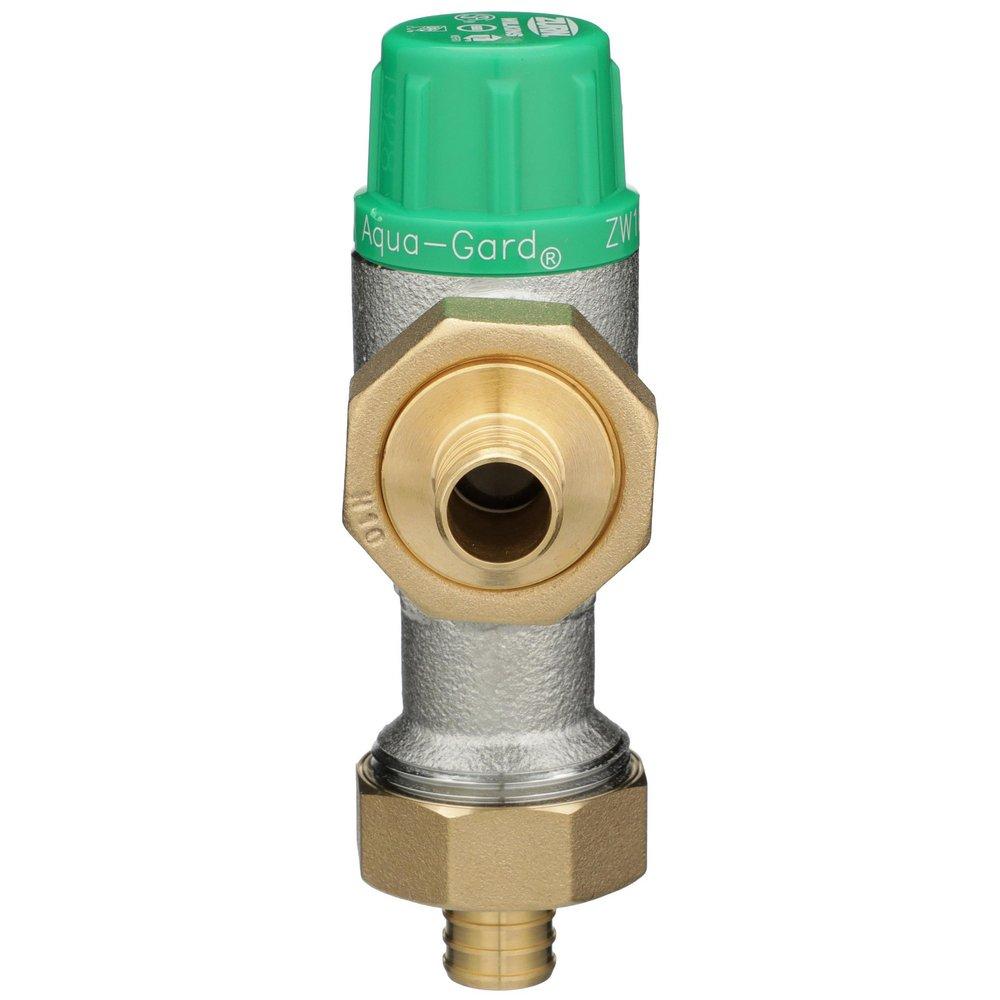

Zurn 12-ZW1070XLPEX Aqua-Gard 1/2 in. Barbed Mixing Valve

Product Description

The Zurn 12-ZW1070XLPEX Aqua-Gard thermostatic mixing valve is designed for use in residential and light commercial applications. This valve helps prevent scalding by controlling the water temperature at the point of use. The ZW1070XLPEX is compliant with low-lead laws and provides a swift response to changes in temperature, maintaining a safe output temperature between ninety-five degrees Fahrenheit and one hundred fifteen degrees Fahrenheit.

• Utilizes PEX connections for easy installation.
• Low-lead compliant, ensuring safety and health standards.
• Multiple configurations suitable for various fixtures, including sinks and bathtubs.

Product Highlights

Ideal for use where safety from scalding is a concern. Suitable for kitchens, bathrooms, and other points of use.

Product Information

Standard Information

• Brand: Zurn
• MPN: 12-ZW1070XLPEX

Technical Specifications

• Size: 1/2 in.
• Type: Thermostatic Mixing Valve
• Material: Low Lead Cast Bronze
• Connection Type: PEX x PEX
• Maximum Working Water Pressure: 145 psi
• Maximum Working Water Temperature: 195°F
• Minimum Outlet Temperature: 95°F
• Maximum Outlet Temperature: 115°F
