Product Description

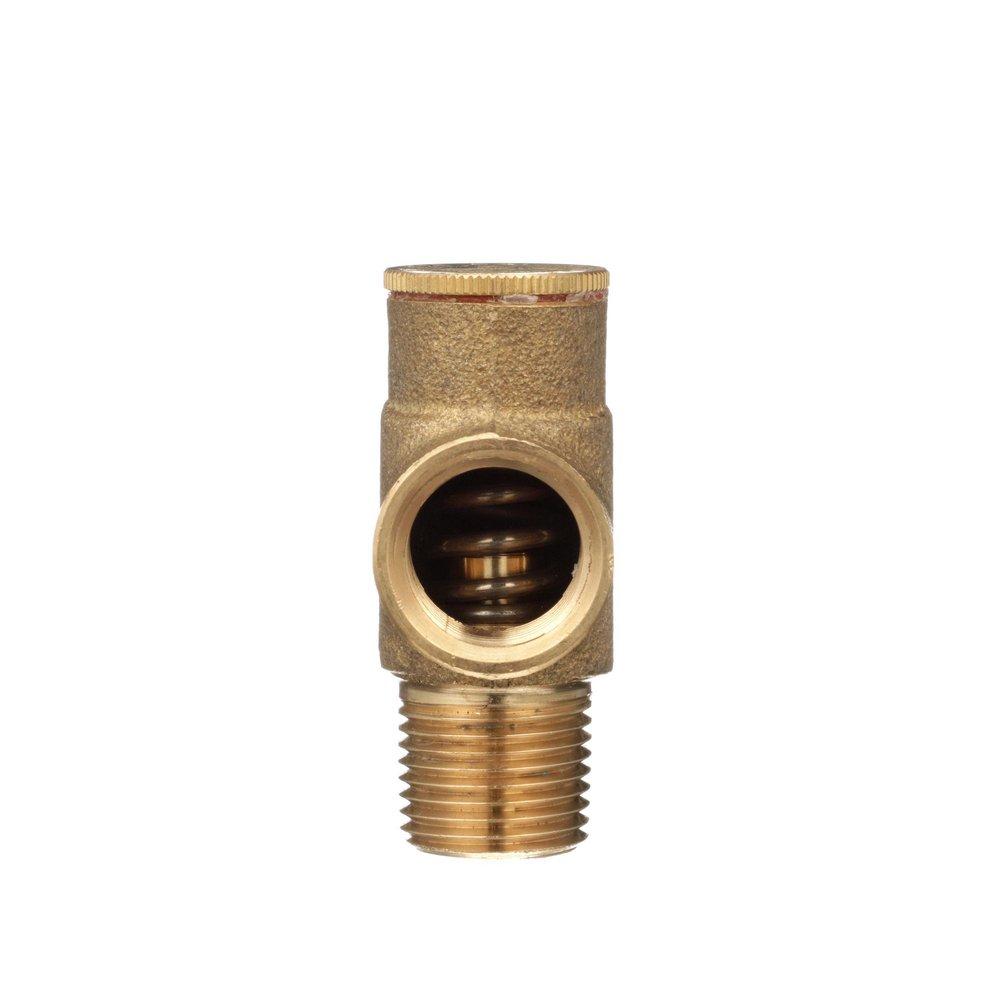

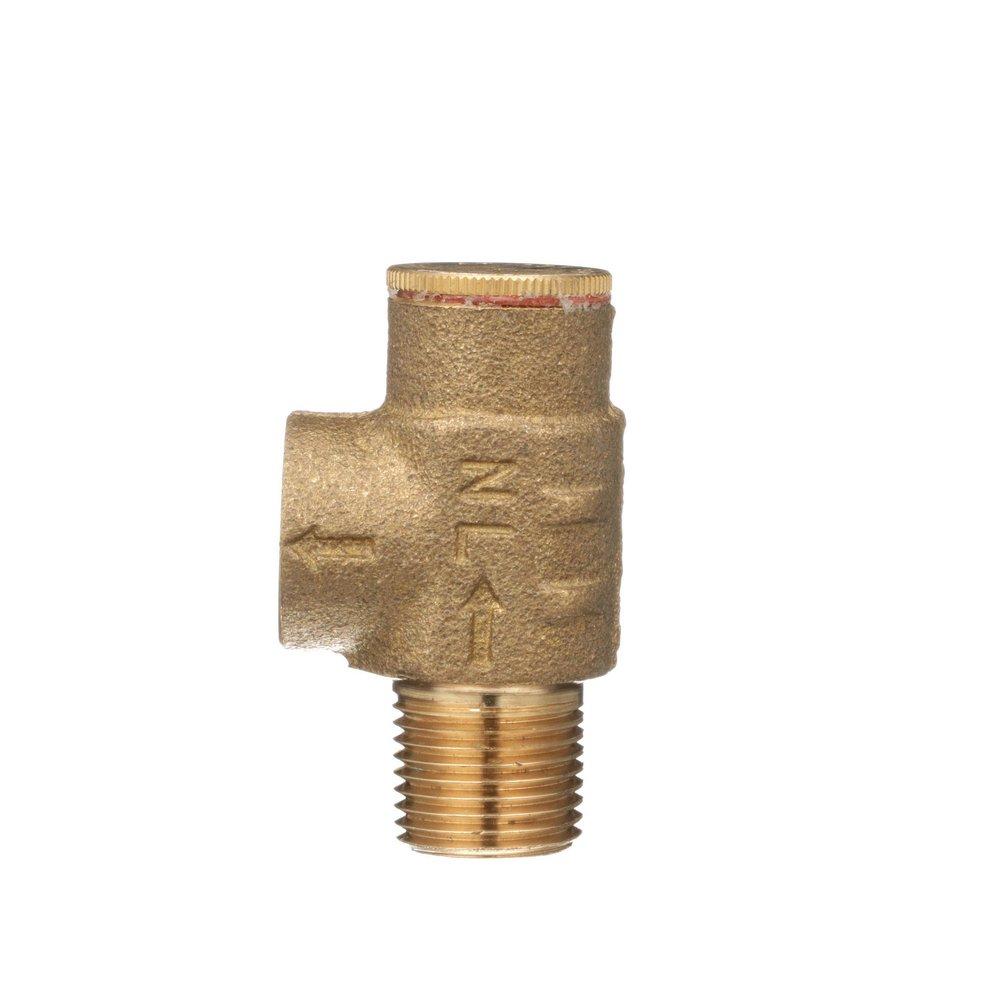

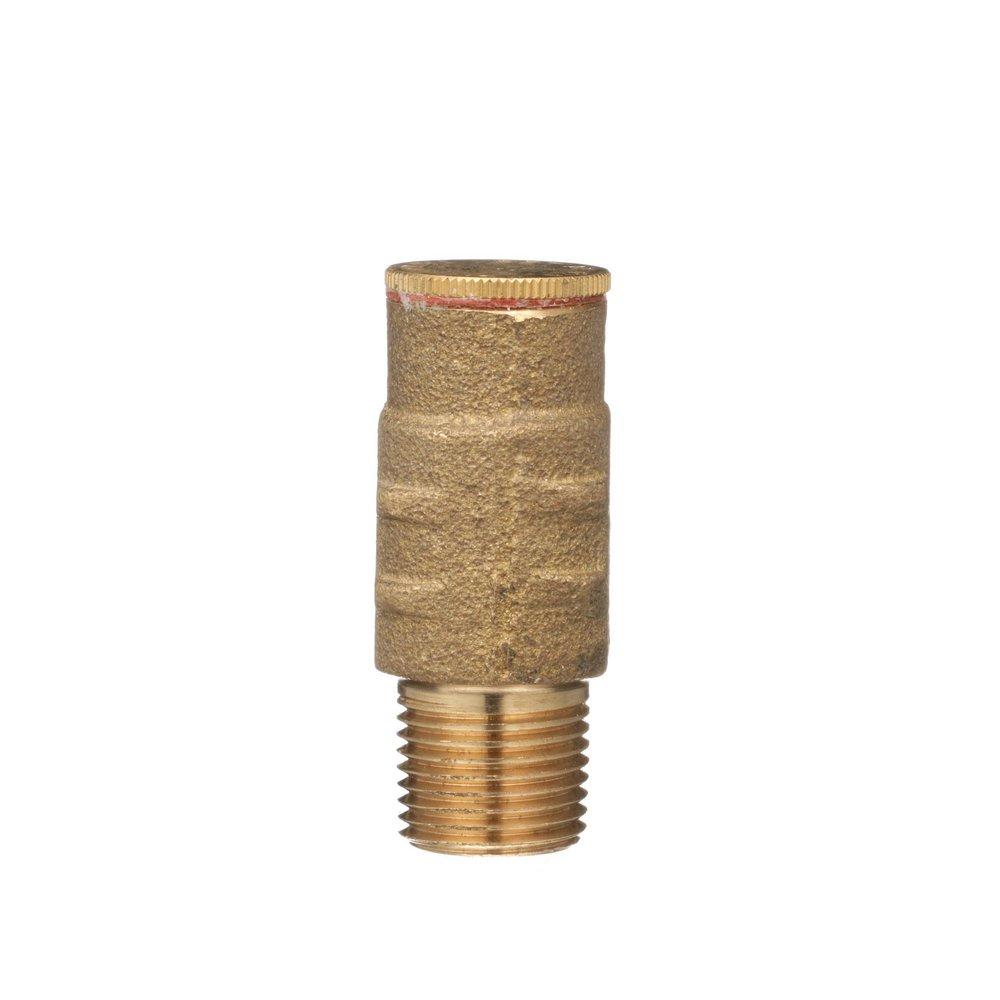

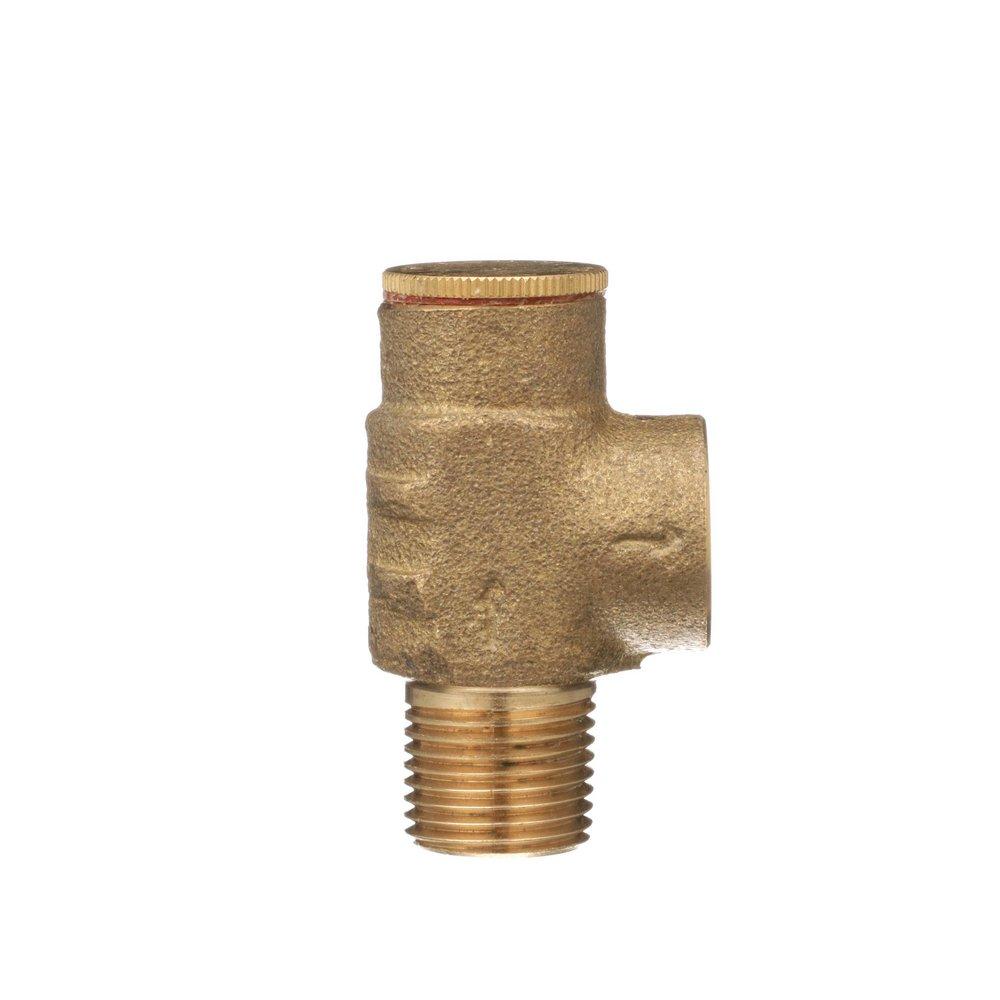

The Zurn 12-P1550XL-125 is a pressure relief valve designed to protect against excessive pressure buildup on cold water service lines. This valve features a fixed pressure relief setting at one hundred twenty-five psi, making it suitable for various applications including static relief, low-capacity pump relief, and passive solar setups.
- Male NPT inlet and female NPT outlet for quick installation.
- Low lead cast bronze construction ensures durability and safety.
- Certified lead-free to meet NSF and ANSI standards.
Product Highlights
This valve offers reliable pressure control, corrosion-resistant materials, and is ideal for commercial and industrial applications. Its design allows for easy installation and maintenance, making it an excellent choice for professionals in the plumbing and HVAC sectors.
Product Information
Standard Information
-
Brand: Zurn Wilkins
-
Part Number: WP1550XL125D
Technical Specifications
-
Size: 1/2 inch
-
Type: Pressure Relief Valve
-
Weight: 0.5 lbs
-
Material: Low Lead Cast Bronze
-
Connection Type: MNPT x FNPT
-
Maximum Working Pressure: 175 psi
-
Temperature Rating: 210 degrees Fahrenheit
-
Valve Style: Angle Body
-
Mounting Type: Vertical
