Product Description

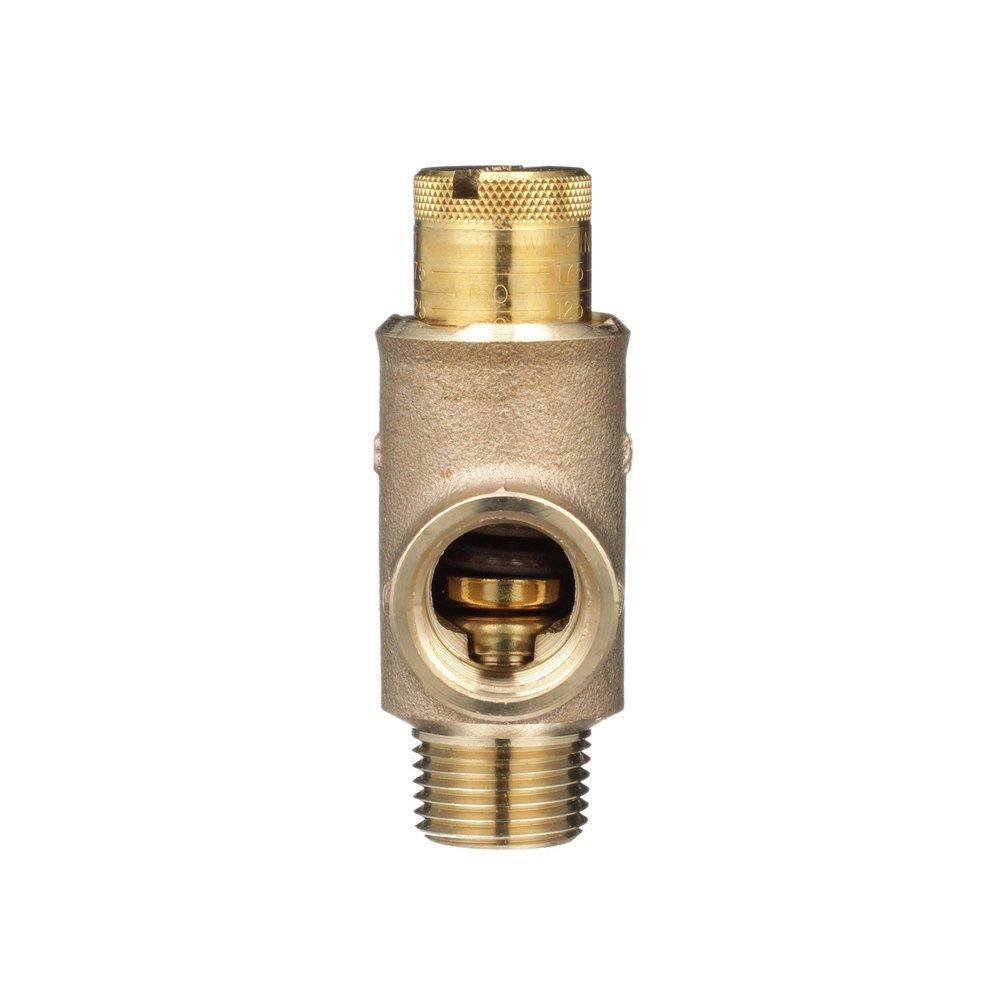

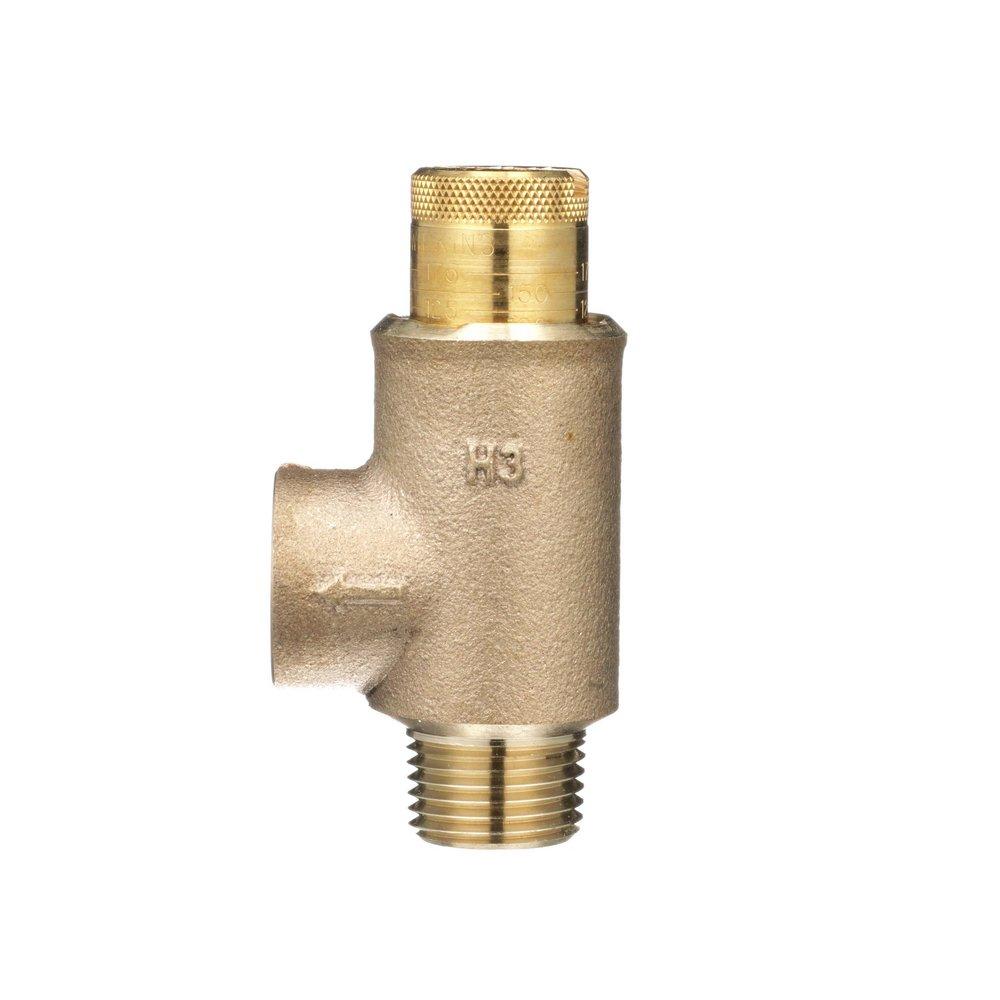

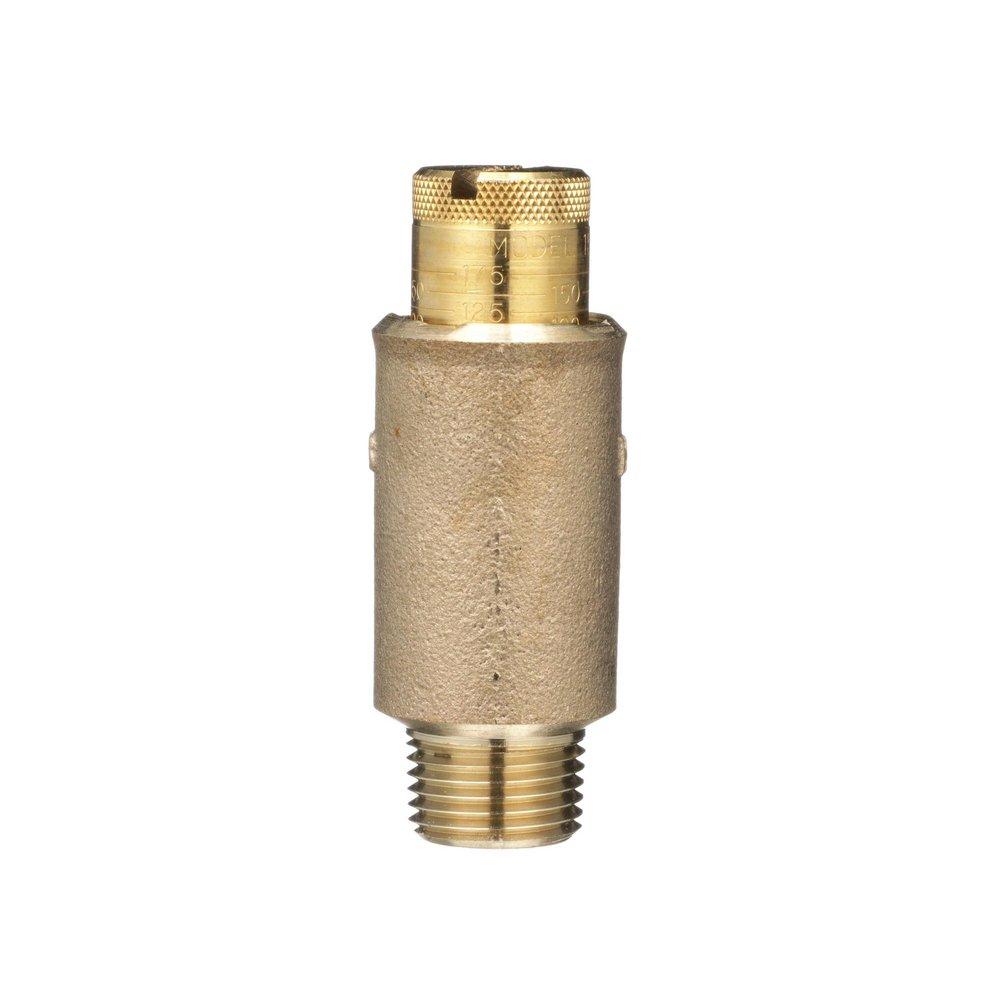

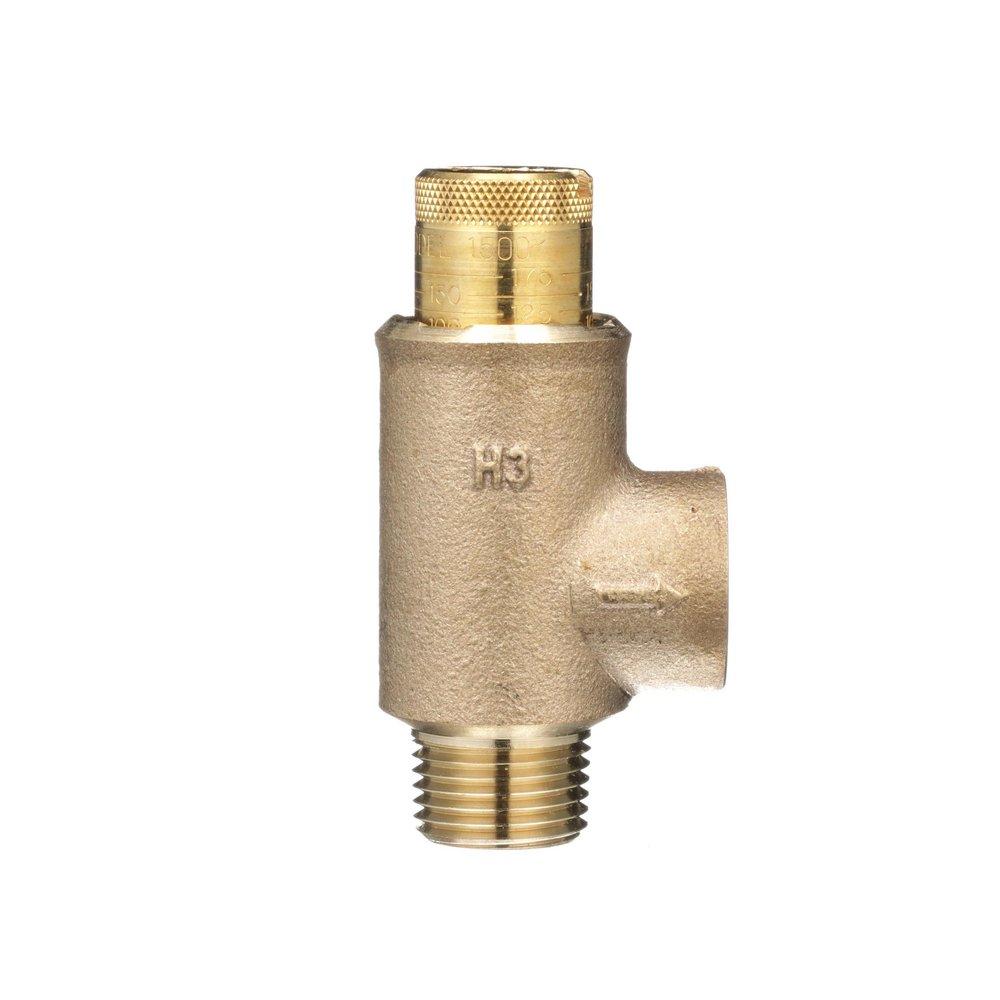

Zurn offers the 12-P1500XL Model P1500XL 1/2 inch Pressure Relief Valve. This valve is designed to provide essential protection against excessive pressure buildup in cold water service lines. It operates effectively in a variety of applications such as static relief, low capacity pump relief, and passive solar systems.
- Field adjustable settings from twenty-five to one hundred seventy-five psi
- Lead free materials ensure safety and compliance
- Easy installation with male NPT inlet and female NPT outlet
Product Highlights
The Zurn Pressure Relief Valve stabilizes system pressure and helps to maintain safe operation in both residential and commercial contexts.
Product Information
Standard Information
-
Brand: Zurn Wilkins
-
Part Number: 12-P1500XL
Technical Specifications
-
Size: 1/2 inch
-
Type: Pressure Relief Valve
-
Connection Type: MNPT x FNPT
-
Material: Low Lead Cast Bronze
-
Maximum Working Pressure: 175 psi
-
Maximum Working Temperature: 210 degrees F
-
Weight: 0.5 lbs
-
Height: 1.2 inches
-
Width: 1.2 inches
-
Length: 2.1 inches
