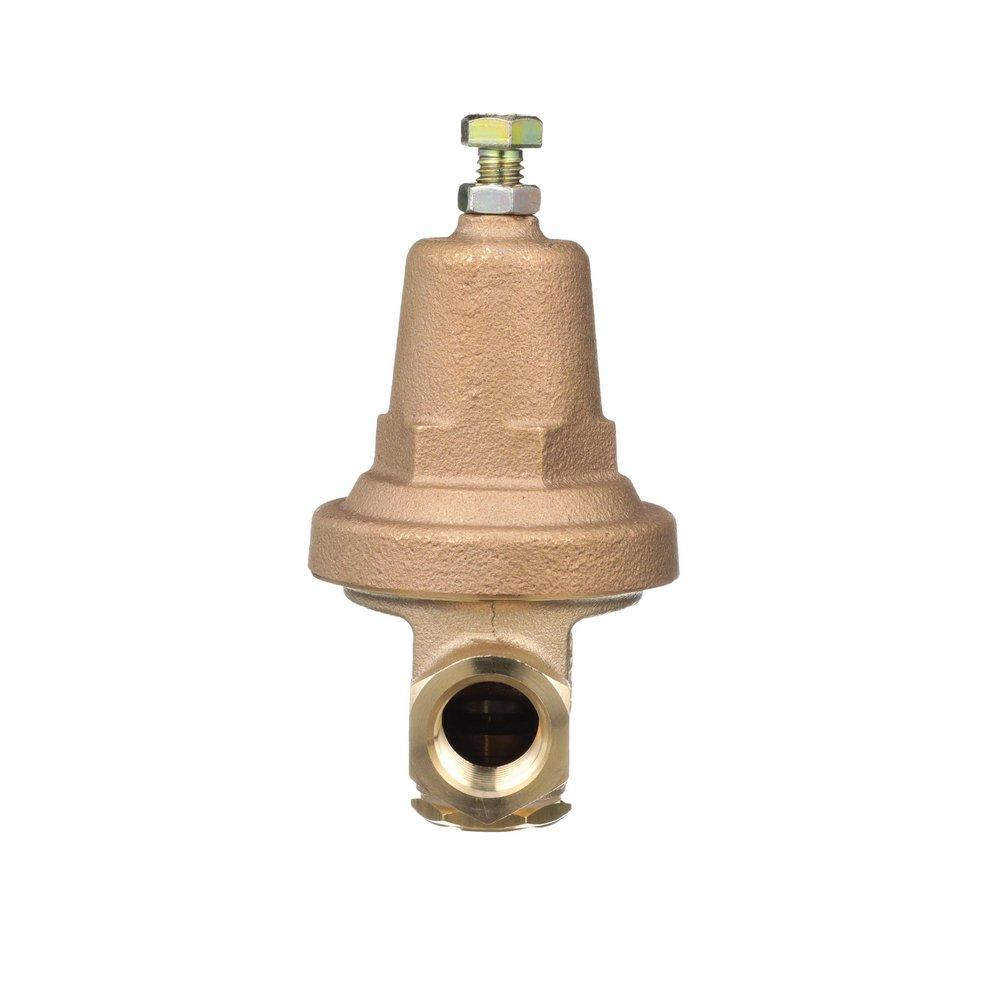

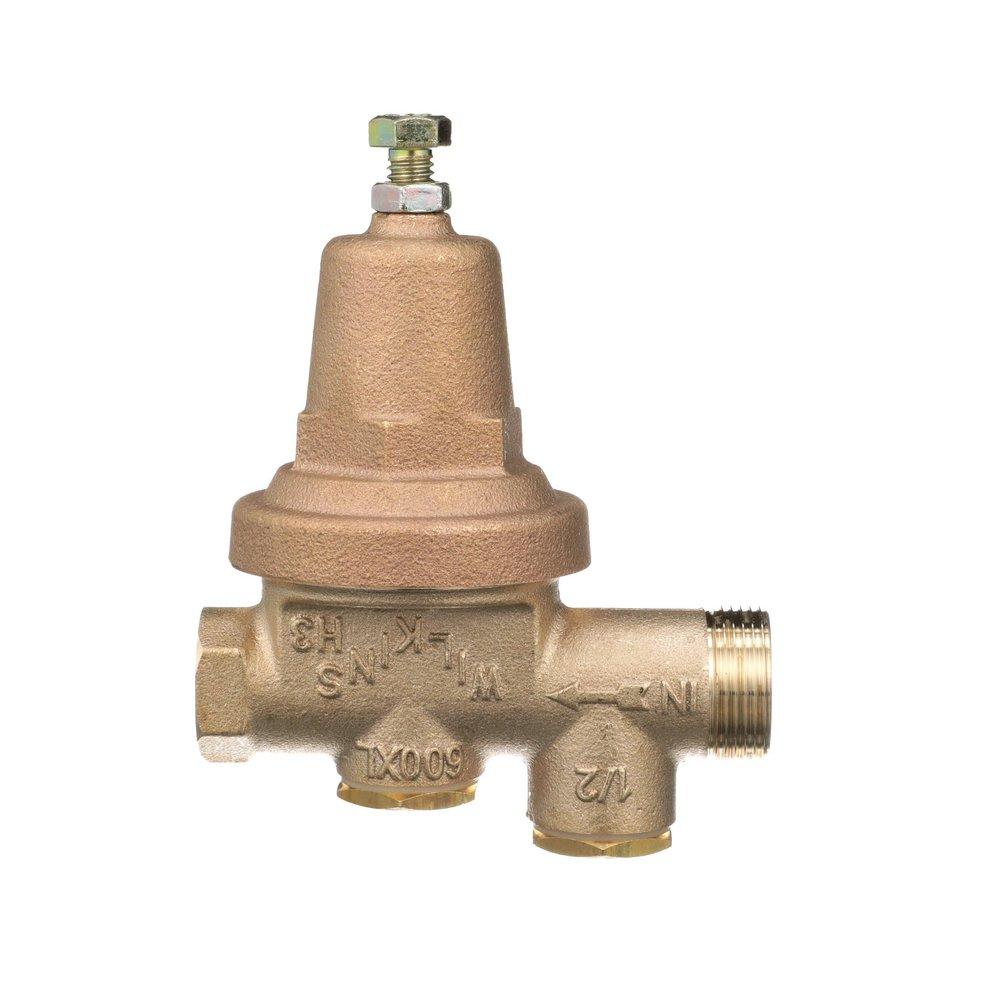

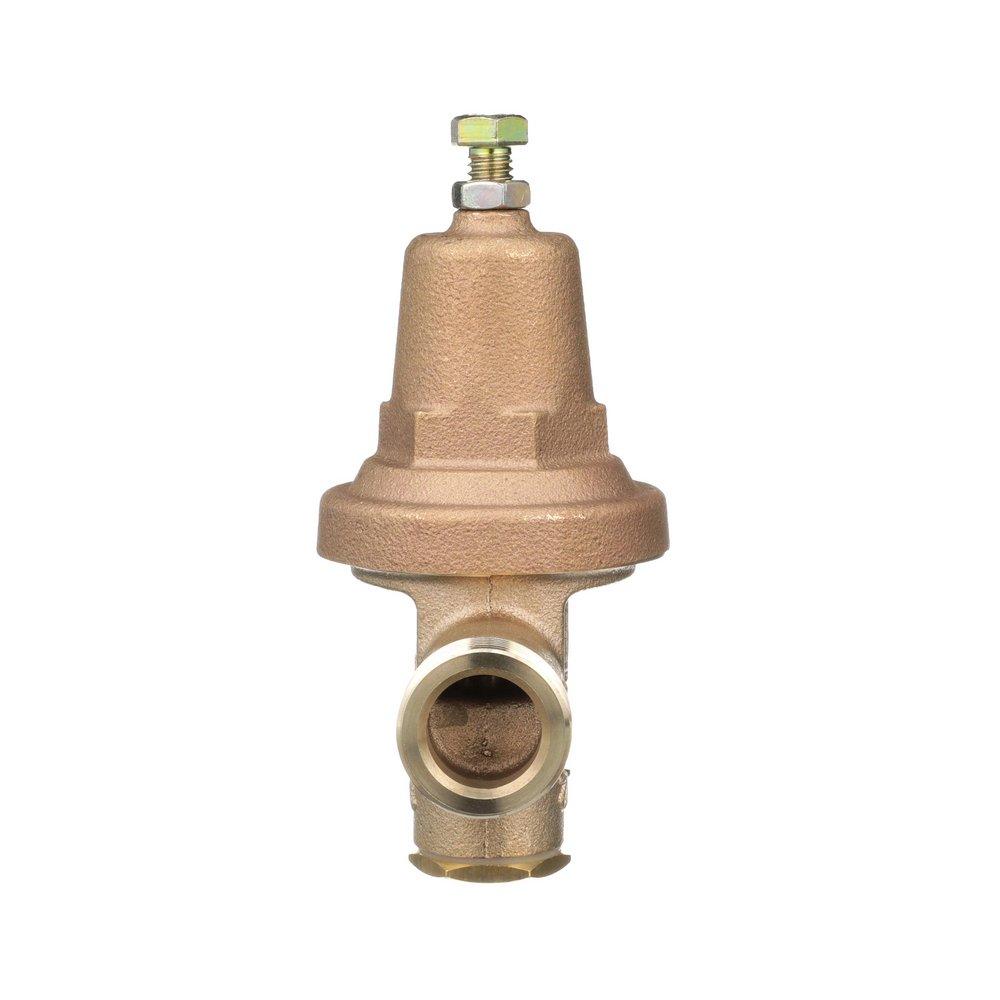

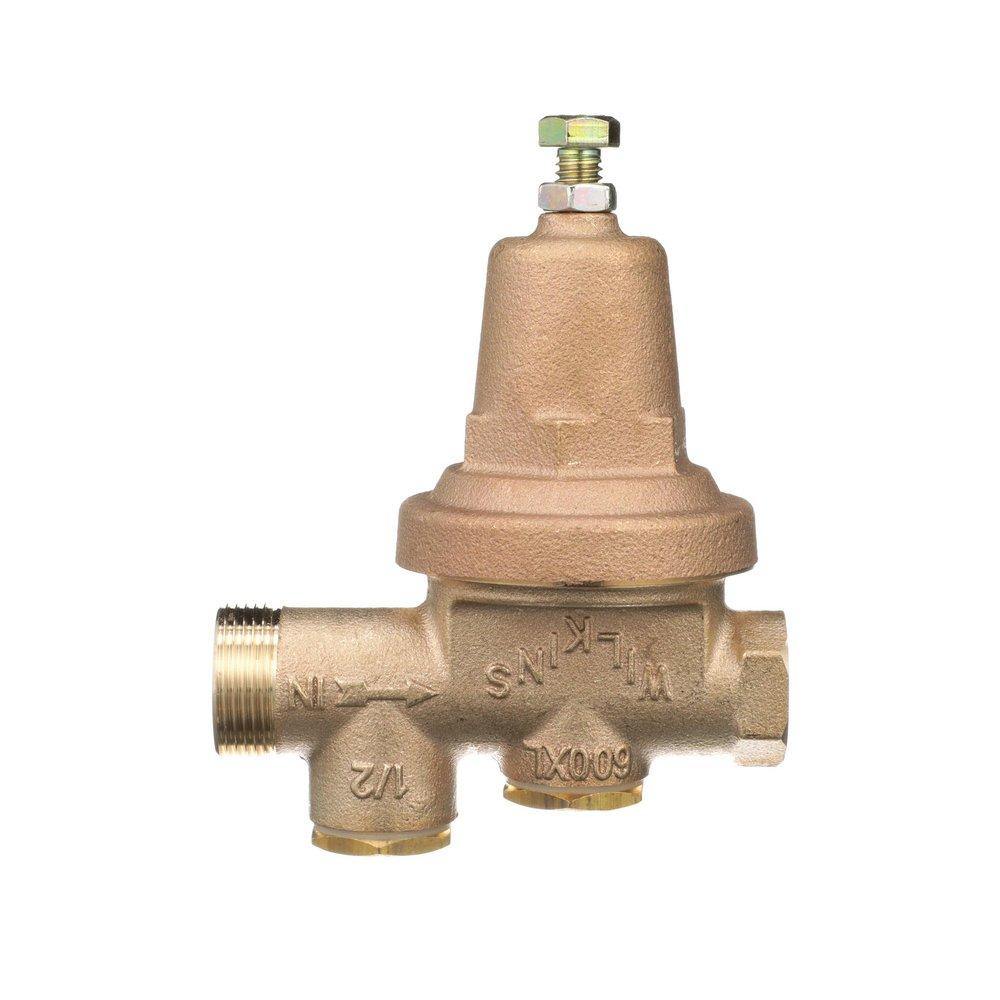

Zurn 12-600XL 600XL 1/2 in. Cast Bronze FNPT Pressure Reducing Valve

Product Description

The Zurn 12-600XL Pressure Reducing Valve is designed for use in residential and commercial water systems. This valve effectively reduces high inlet pressure to a lower, manageable outlet pressure. It is ideal for applications where inlet pressures reach up to three hundred psi, providing reliable pressure regulation.

• Fiber union gasket assures quick installation.
• Durable construction minimizes maintenance needs and lifecycle costs.
• Balanced design maintains stable outlet pressure despite variations in inlet pressure.

Product Highlights

This valve includes a stainless steel strainer that simplifies cleaning and maintains performance in systems with sediment and debris. The bronze threaded bell allows for corrosion resistance and easier access to internal components, significantly reducing labor time.

Product Information

Standard Information

• Brand: Zurn Wilkins
• Model Number: 12-600XL
• Material: Low Lead Cast Bronze
• Valve Style: In-line

Technical Specifications

• Size: 1/2 inches
• Weight: 3 lbs
• Connection Type: FNPT x FNPT
• Pressure Range: 25-75 psi
• Maximum Working Pressure: 300 psi
• Maximum Temperature: 140 degrees F
• Application: Residential, Commercial, Potable Water
