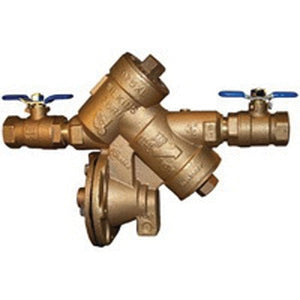

Zurn 112-975XL 1-1/2 Reduced Pressure Principle Backflow Preventer

Product Description

The Zurn 112-975XL is a 1-1/2 inch reduced pressure principle backflow preventer used in non-potable water applications. This device protects potable water supplies from contamination due to backsiphonage and backpressure. Its wye pattern design allows for quick installation in tight spaces, while the cast bronze body incorporates separate access points for the relief valve and check valves, simplifying maintenance.

• Designed for both backsiphonage and backpressure protection
• Wye pattern for easier installation in compact areas
• Servicing and maintenance are straightforward, reducing downtime

Product Highlights

This backflow preventer is ideal for irrigation systems and other applications needing reliable contamination prevention.

Product Information

Standard Information

• Brand: Zurn Wilkins
• MPN: 112-975XL

Technical Specifications

• Size: 1-1/2 inches
• Type: Reduced Pressure Principle Backflow Preventer
• Connection Size: 1-1/2 x 1-1/2 inches FNPT
• Width: 6.25 inches
• Height: 11.75 inches
• Length: 17.38 inches
• Weight: 28 lbs
• Material: Bronze
• Maximum Working Water Pressure: 175 psi
• Temperature Rating: 140 degrees F
• Standards: ASSE 1013, UL Listed
• Application: Plumbing
