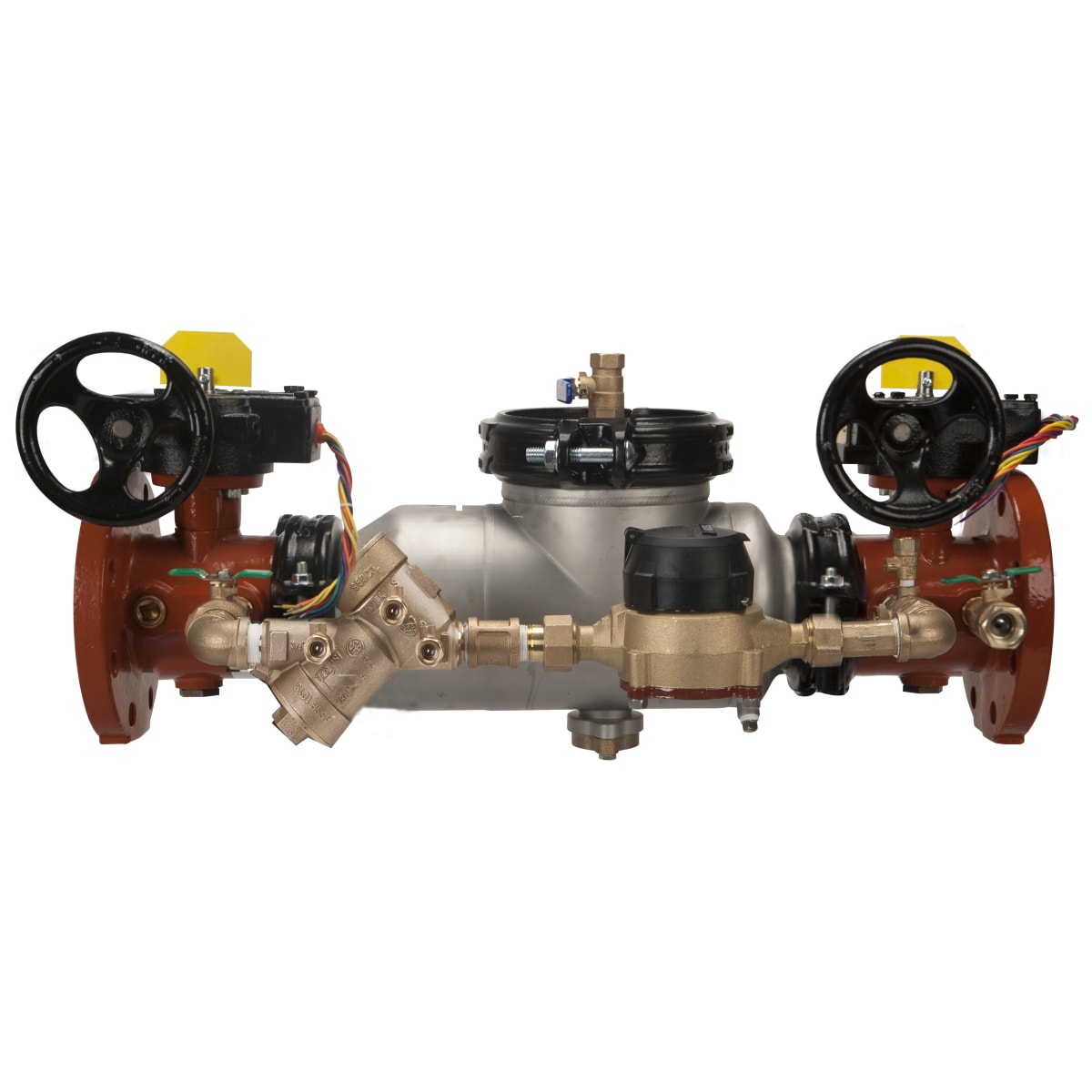

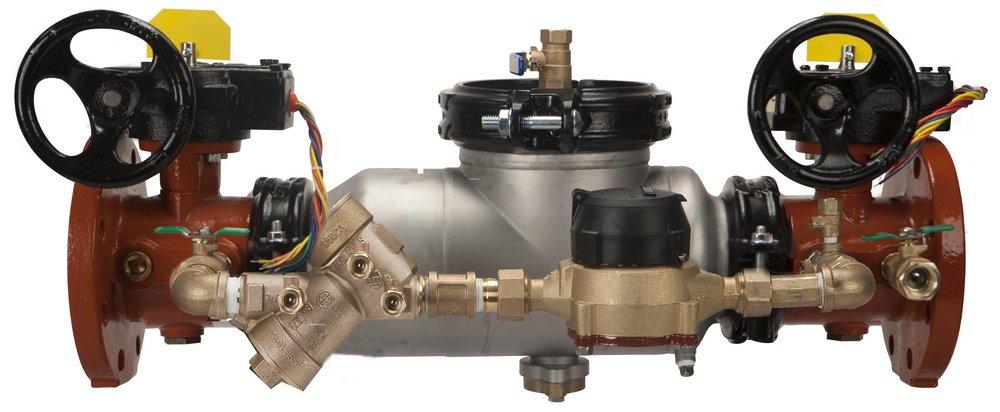

Zurn 10-350ASTDA Model 350ASTDA 10 in. Ductile Iron Flanged 350 psi Backflow Preventer

Product Description

The Zurn 10-350ASTDA is a double check detector assembly designed to protect against backsiphonage and backpressure in various applications. It features a corrosion-resistant stainless steel body, ensuring durability and low maintenance costs. With a metered bypass, this assembly allows for efficient detection of leaks and unauthorized water usage. It also includes a single access cover that simplifies maintenance and minimizes downtime. This model is suitable for both horizontal and vertical installations, making it versatile for different setups.

• Short lay-length ensures easy installation in compact spaces
• Metered bypass detects unauthorized water use and leaks
• Corrosion-resistant 304L stainless steel construction

Product Highlights

This backflow preventer is ASSE listed and UL classified, making it compliant with industry standards.

Product Information

Standard Information

• Brand: Zurn Wilkins
• MPN: 10-350ASTDA

Technical Specifications

• Size: 10 inches
• Type: Double Check Detector Backflow Preventer
• Material: Ductile Iron, Stainless Steel
• Connection Size: 10 x 10 inches
• Connection Type: Flanged x Flanged
• Maximum Working Water Pressure: 175 psi
• Maximum Working Water Temperature: 140 degrees F
• Weight: 885 lbs
• Height: 54 inches
• Length: 55.75 inches
• Width: 27.125 inches
• Valve Style: In-line
• Mounting Type: Vertical, Horizontal
• ASSE Standard: ASSE 1048
