Zurn 1-zw1017xlc Tempering Mixing Valve 1 Inch Sweat

Product Description

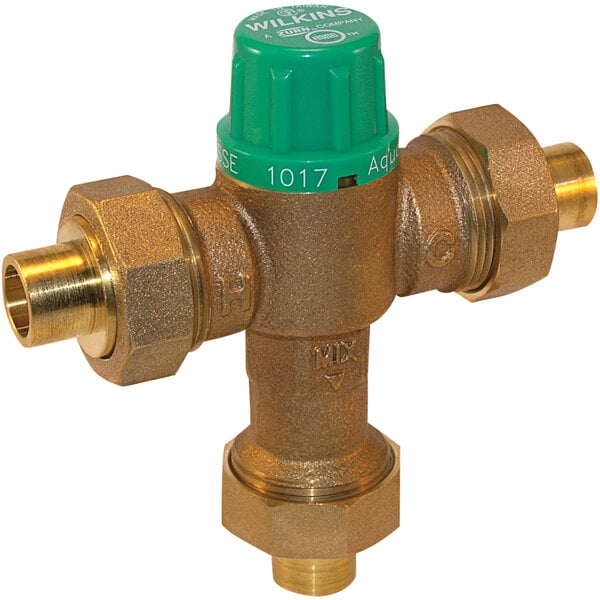

The ZURN 1-zw1017xlc Aqua-Gard is a thermostatic tempering mixing valve designed to blend hot and cold water supply lines and deliver a controlled outlet temperature of 122 degrees F or less. Built around a cast bronze body with internal brass components, this valve provides durable, corrosion-resistant performance in demanding water systems. It accepts a 1-inch copper sweat union connection and is rated to 145 psi working pressure. Licensed plumbers install this valve as a code-compliant safeguard against scalding in domestic hot water distribution systems serving residential and light commercial occupancies.

This valve is suited for residential and light commercial plumbing applications where tempered water delivery is required at fixtures such as lavatories, showers, and bathing units. It is installed on the hot water supply branch where outlet temperature control and scald protection are mandated by local plumbing codes. The copper sweat union connection simplifies integration into existing copper piping systems without the need for additional transition fittings.

Key Features

• Limits outlet water temperature to 122 degrees F or less to prevent scalding at the point of use
• Cast bronze body with internal brass construction for corrosion resistance and long service life
• 1-inch copper sweat union connection for direct integration into copper supply piping
• Rated to 145 psi working pressure for compatibility with standard municipal supply systems
• NSF Certified for use in potable water systems

Compatibility

Designed as an OEM-style thermostatic tempering mixing valve for residential and light commercial hot water distribution systems requiring scald-protection compliance.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable local plumbing code and ASSE 1017 standards. Shut off the hot and cold water supply and relieve system pressure before beginning any connection work. Use appropriate copper sweat soldering tools and flux rated for potable water service. Flush the supply lines before final commissioning to clear debris that could affect valve function.

Technical Specifications

• Maximum Outlet Temperature: 122 degrees F
• Pressure Rating: 145 psi
• Connection Type: 1-inch Copper Sweat Union
• Body Material: Cast Bronze
• Internal Material: Brass
• Weight: 2 pounds
• Certifications: NSF Certified
• Quantity: 1 Each

Standard Information

• Brand: ZURN
• Manufacturer Part Number: 1-zw1017xlc
