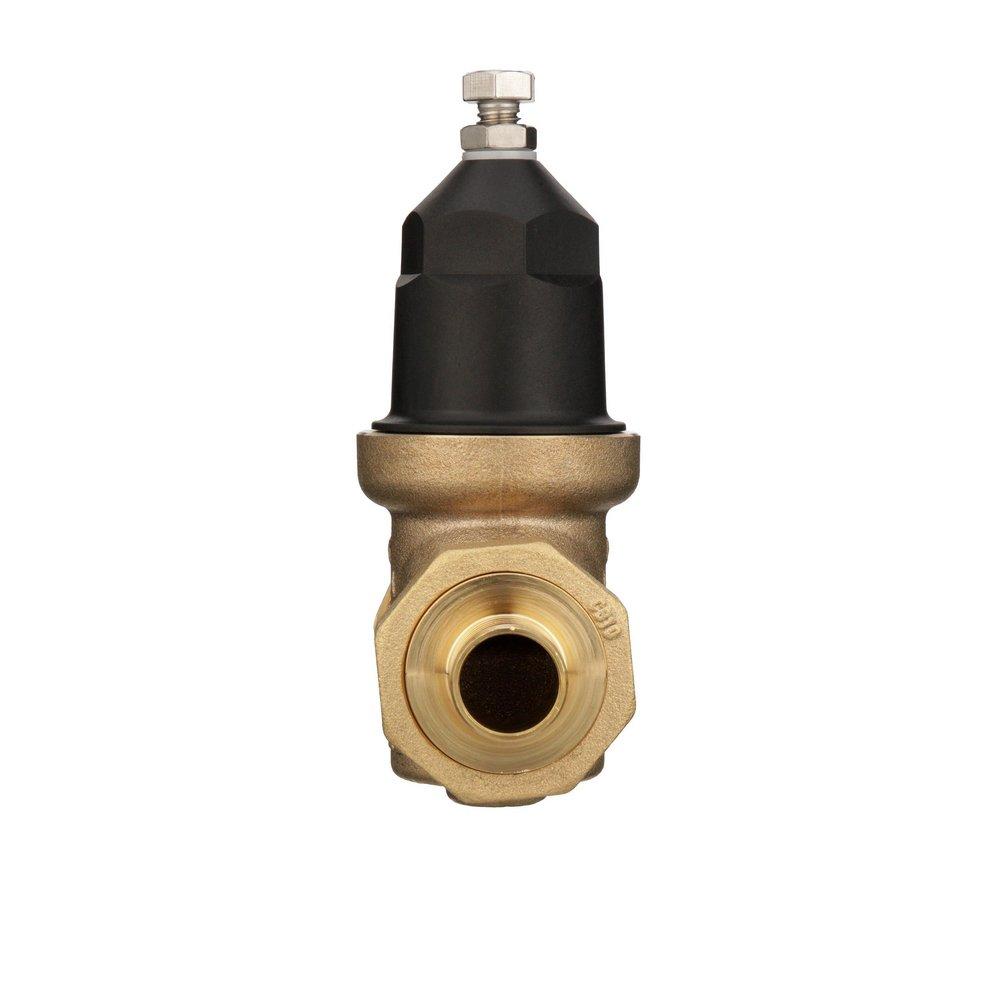

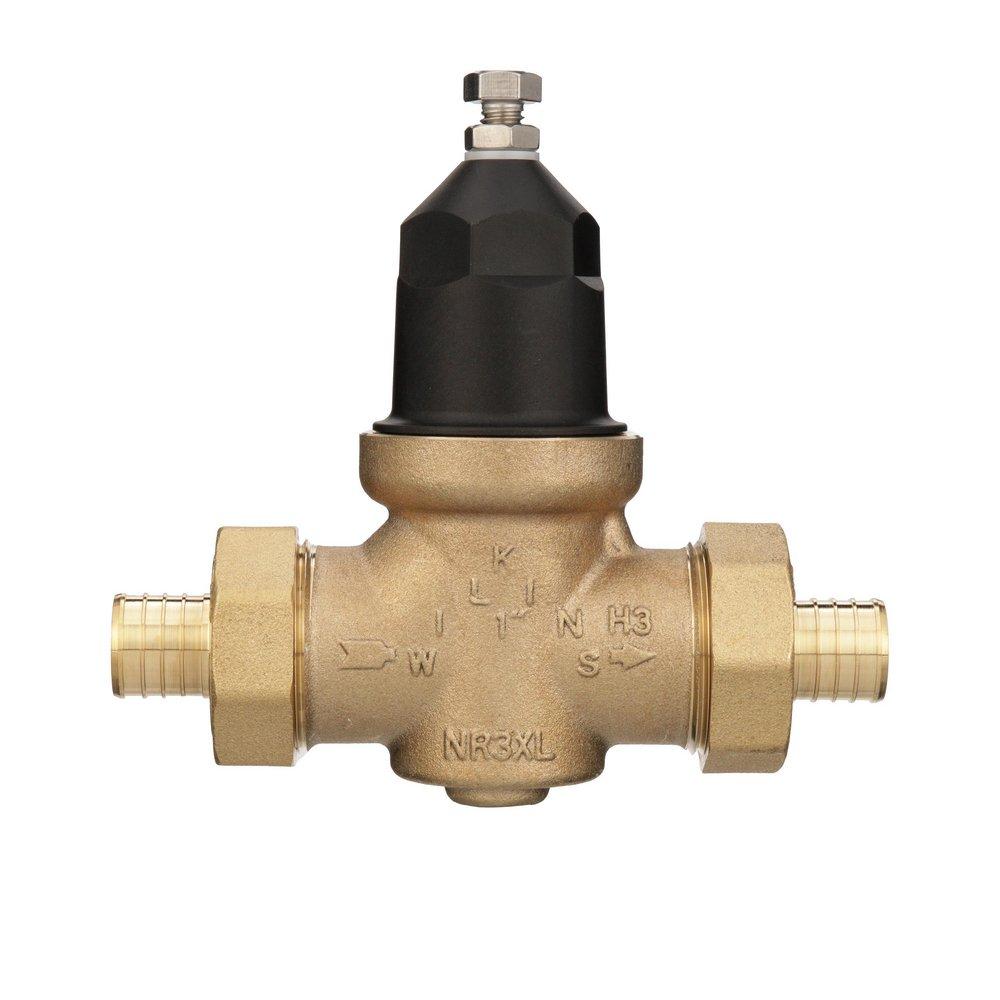

Zurn 1-NR3XLDUPEX NR3XL 1 in. 400 psi Cast Bronze Double Union FNPT x Male Barb PEX Pressure Reducing Valve

Product Description

The Zurn pressure reducing valve, MPN 1-NR3XLDUPEX, is designed for residential and commercial applications where controlling water pressure is necessary. This valve connects to potable water pipes with an inner diameter of one inch and provides a reliable adjustment of pressure to prevent damage to plumbing systems. Its durable construction includes a low lead cast bronze body and a stainless steel strainer screen, ensuring long-lasting performance and easy maintenance.

• For use with potable water pipes with a one-inch inner diameter
• Cartridge-loaded design allows for easy repairs
• Integrated strainer filters debris to protect plumbing systems

Product Highlights

This valve lowers excessive water pressures to maintain system integrity, meeting various code requirements. Its compact design facilitates installation in tight spaces.

Product Information

Standard Information

• Brand: Zurn Wilkins
• MPN: 1-NR3XLDUPEX

Technical Specifications

• Size: 1 inch
• Weight: 2.66 lbs
• Length: 5.5 inches
• Width: 2.8 inches
• Height: 5.5 inches
• Material: Low Lead Cast Bronze
• Model: NR3XL
• Pressure Range: 15-75 psi
• Maximum Working Pressure: 400 psi
• Maximum Working Temperature: 140°F
• Connection Type: PEX x PEX
• Standards: ASSE 1003, IAPMO Listed, CSA Certified, NSF/ANSI 61
