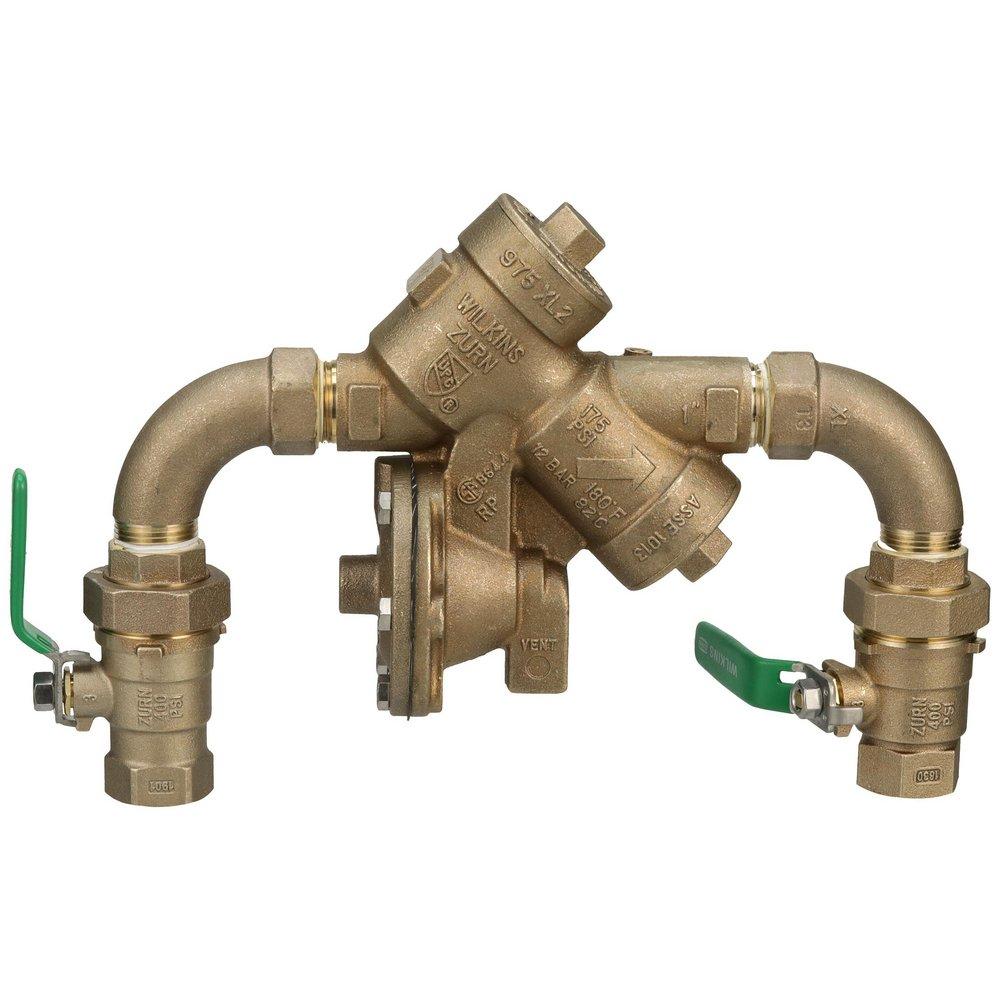

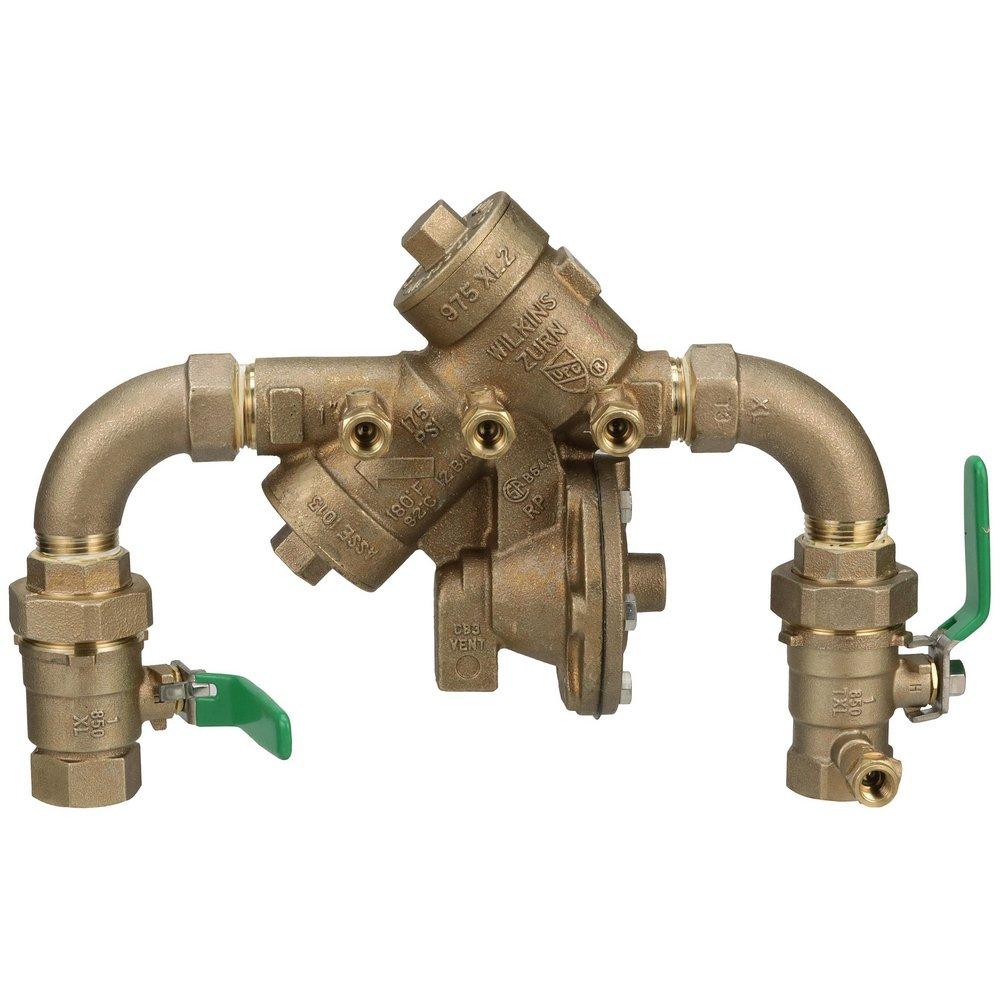

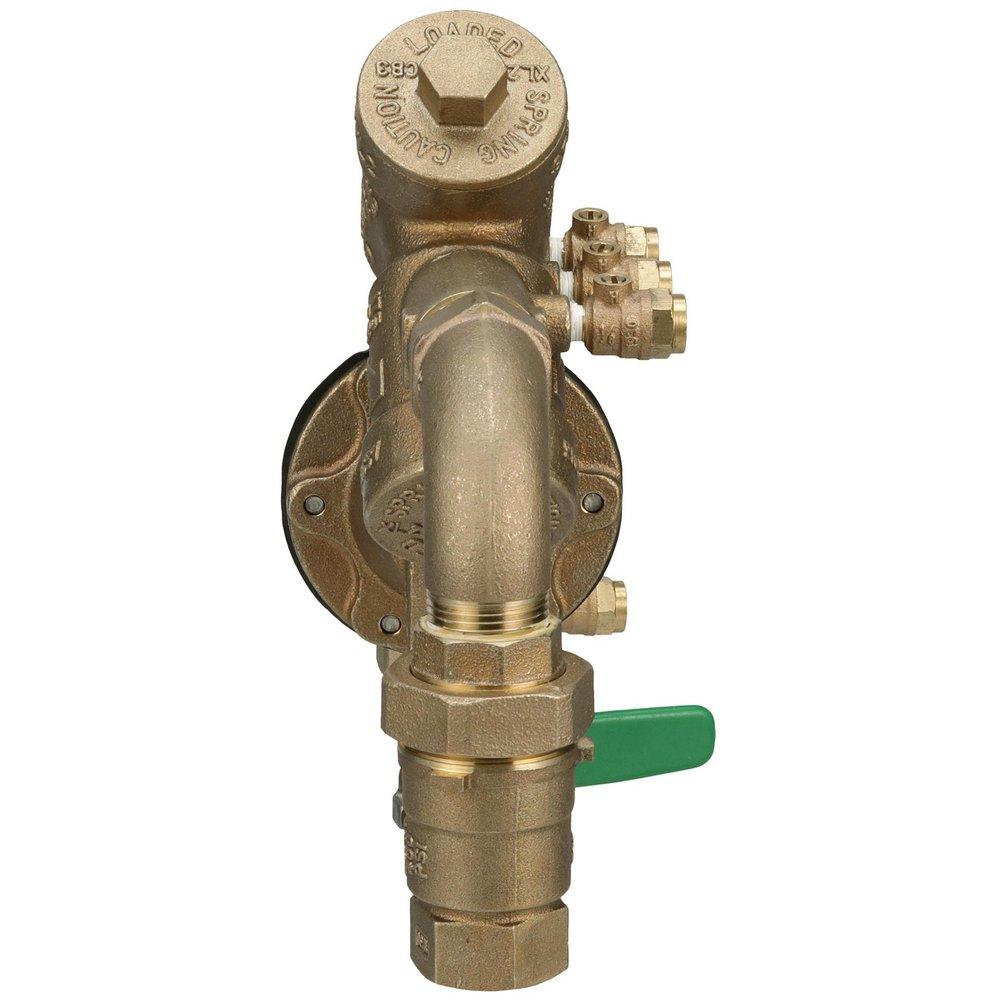

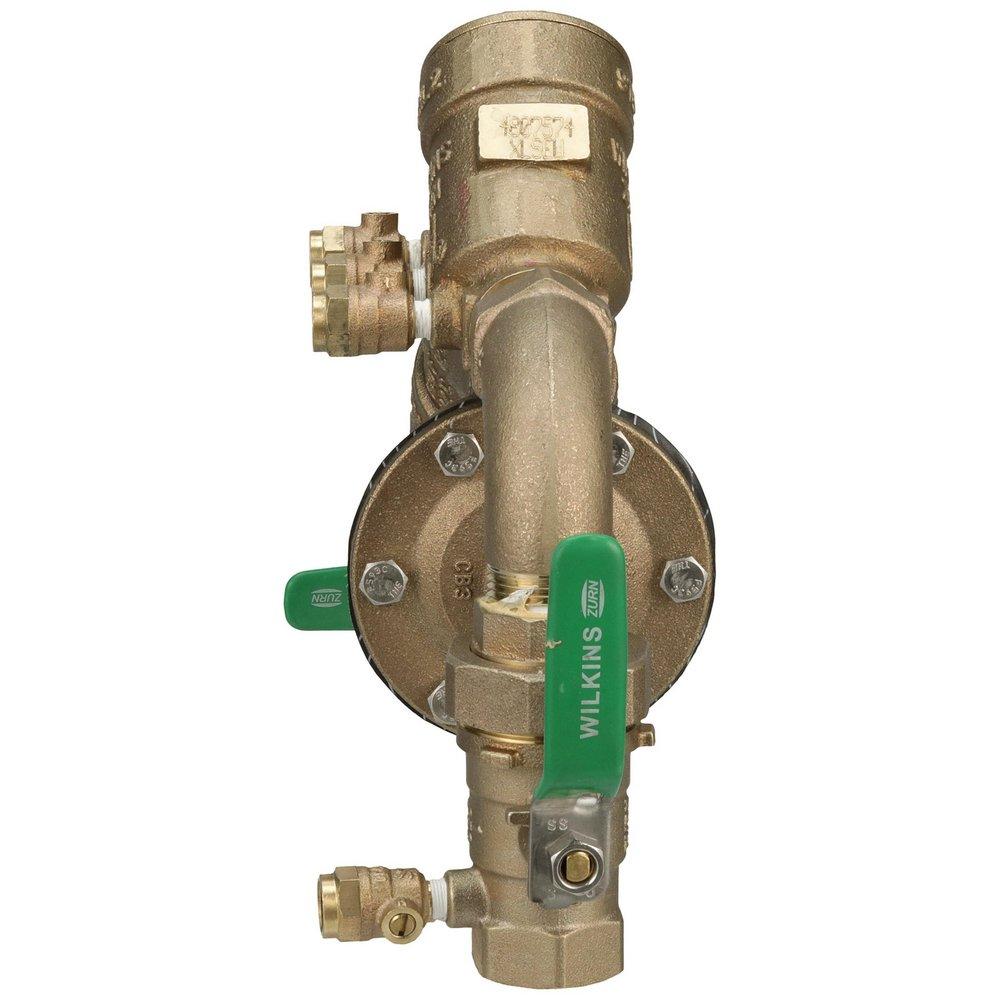

Zurn 1-975XL2SEU 975XL2 1 in. Cast Bronze Threaded 175 psi Backflow Preventer

Product Description

The Zurn 1-975XL2SEU is a Reduced Pressure Principle Backflow Preventer designed for ensuring safe potable water supply by preventing back-siphonage and backpressure. This product features 90-degree street elbows, making it suitable for installations in compact spaces.

• Includes street elbows for narrow footprints
• Constructed from cast bronze for durability
• Configuration options for flexibility in installation

Product Highlights

The Zurn 1-975XL2SEU is compliant with ASSE and IAPMO standards, ensuring reliability in high health hazard situations.

Product Information

Standard Information

• Brand: Zurn
• Model: 1-975XL2SEU

Technical Specifications

• Size: 1 inch
• Type: Reduced Pressure Principle Backflow Preventer
• Width: 5.125 inches
• Height: 8.5 inches
• Length: 13 inches
• Weight: 15 lbs
• Material: Bronze
• Maximum Working Water Pressure: 175 psi
• Maximum Working Water Temperature: 140 degrees F
• Connection Size: 1 x 1
• Connection Type: FNPT x FNPT
• Valve Style: Vertical Up and Down
