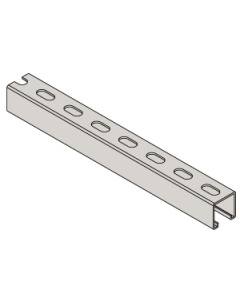

ZSI-FOSTER W210EHPG20 Channel 14 Gauge 1 5/8 x 1 5/8 20' Length PG

Product Description

The ZSI-FOSTER W210EHPG20 is a channel made from fourteen gauge steel, measuring one and five-eighths inches by one and five-eighths inches, with a total length of twenty feet. It has short slots designed with dimensions of nine-sixteenths inch by one and one-eighth inches, spaced on two inch centers. The channel undergoes a cold roll forming process and features a pre-galvanized finish that ensures enhanced durability.

• Manufactured through a cold roll forming process.
• Steel material conforms to ASTM specifications.
• Designed with short slots for quick installation.

Product Highlights

This channel is ideal for various framing and support applications.

Product Information

Standard Information

• Manufacturer Part Number: W210EHPG20
• Material Gauge: 14 Gauge

Technical Specifications

• Channel Dimensions: 1 5/8 x 1 5/8 inches
• Length: 20 feet
• Slot Type: Short Slots
• Slot Dimensions: 9/16 x 1 1/8 inches on 2 inches centers
• Finish: Pre-Galvanized
• Steel Conformance: conforms to ASTM A 653 GR33 G90
• Design Standard: AISI S100-2016 Specification for the Design of Cold-Formed Steel Structural Members
• Maximum Bending Stress: 25,000 PSI
