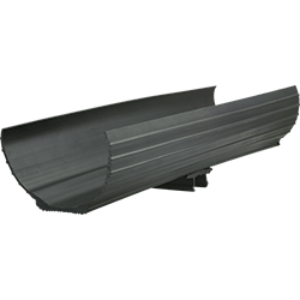

Zsi-Foster SW325 Snap-a-Saddle 3-1/4 Inch Width

Product Description

The Zsi-Foster SW325 is an insulation saddle designed to support and protect insulated copper tubing, fitting copper tube sizes 1 to 1-1/2 inch and insulation outside diameters around 3-1/4 inches. The 3-1/4 inch wide, 12 inch long saddle is molded from TPV (UL94 HB), accommodates insulation thickness 1/2 to 1 inch, mounts to strut channel with one-step tool-free installation, and is rated -50 to 275 F with a load capacity up to 1200 lbs and UL (Canada and US) compliance.

• Fits copper tube sizes 1" to 1-1/2"; accommodates insulation outside diameter ~3-1/4" and insulation thickness 1/2" to 1".
• Molded from TPV (UL94 HB); dimensions 3-1/4" width by 12" length; painted finish.
• Mounts to strut channel with one-step, tool-free installation; load capacity up to 1200 lbs; operating range -50 to 275 F; UL (Canada and US) standard; made in USA.

Product Highlights

Insulation saddle for 1 to 1-1/2 inch copper tube; TPV construction (UL94 HB); 3-1/4" width, 12" length; mounts to strut channel; -50 to 275 F; 1200 lb capacity.

Product Information

Standard Information

• Brand: ZSI-FOSTER
• Manufacturer Part Number: SW325
• Country of Origin: United States

Technical Specifications

• Brand: Zsi-Foster
• Manufacturer Part Number: SW325
• Product Type: Insulation Saddle
• Compatible Pipe Size: 1 to 1-1/2 inch
• Insulation Outside Diameter: 3-1/4 inch
• Insulation Thickness: 1/2 to 1 inch
• Width: 3-1/4 inch
• Length: 12 inch
• Material: TPV (thermoplastic vulcanizate), molded
• Finish: Painted (white)
• Temperature Rating: -50 to 275 Deg F
• Mounting Type: Strut channel (snap-on, tool-free)
• Load Capacity: 1200 lbs
• Applicable Standard: UL (Canada and US)
• Flammability Standard: UL94 HB
• Country of Origin: USA
• UNSPSC Code: 40175307
