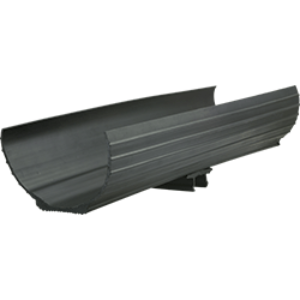

Zsi-Foster SW225 Insulation Saddle 2-1/4 Inch Width (12 Inch) 46KJ26

Product Description

The Zsi-Foster SW225 insulation saddle is designed to attach insulated pipes to strut channel supports and protect pipe covering. It fits copper tube sizes 1/4 to 3/4 inch with insulation outside diameters around 2.3 inch and insulation thickness of 1/2 to 3/4 inch. The molded TPV saddle meets UL94-HB1, measures 2-1/4 inch wide by 12 inch overall, and has an operating range of -50 to 275 F and a load capacity up to 1,200 lbs.

• Fits pipe sizes 1/4 to 3/4 inch; insulation outside diameter ~2.3 inch; insulation thickness 1/2 to 3/4 inch
• Molded TPV material meeting UL94-HB1 with painted finish; operating temperature -50 to 275 F
• Mounts to strut channel; overall length 12 inch, width 2-1/4 inch; load capacity up to 1,200 lbs

Product Highlights

Insulation saddle for strut channel mounting; fits 1/4–3/4 inch pipes; TPV UL94-HB1 construction; -50 to 275 F; 1,200 lb capacity

Product Information

Standard Information

• Brand: ZSI-FOSTER
• Manufacturer Part Number: SW225
• Country of Origin: United States

Technical Specifications

• Brand: Zsi-Foster
• Manufacturer Part Number: SW225
• Product Name: Insulation Saddle
• Material: TPV (UL94-HB1)
• Finish: Painted
• Width: 2-1/4 inch
• Overall Length: 12 inch
• Pipe Size: 1/4 to 3/4 inch
• For Insulation Outside Diameter: Approximately 2.3 inch
• Insulation Thickness: 1/2 to 3/4 inch
• Load Capacity: 1200 lbs
• Mounting Type: Strut channel
• Operating Temperature Range: -50 to 275 F
• Standard: UL94-HB1
• Applicable Standard: UL (Canada and US)
• Country of Origin: Made in USA
• UNSPSC Code: 40175307
• Cross Reference: 46KJ26, CF3ZJK
